Installation Procedure

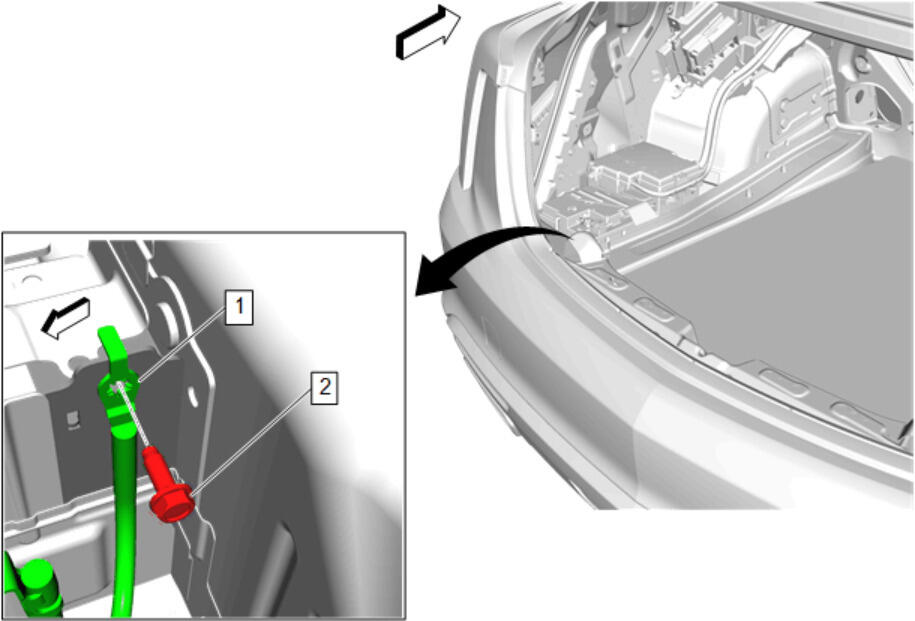

  1. GM5310582Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable (1) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Negative Cable Bolt (2) @Rear Bumper Impact Bar Bracket - Install and tighten 22 N.m (16 lb ft)

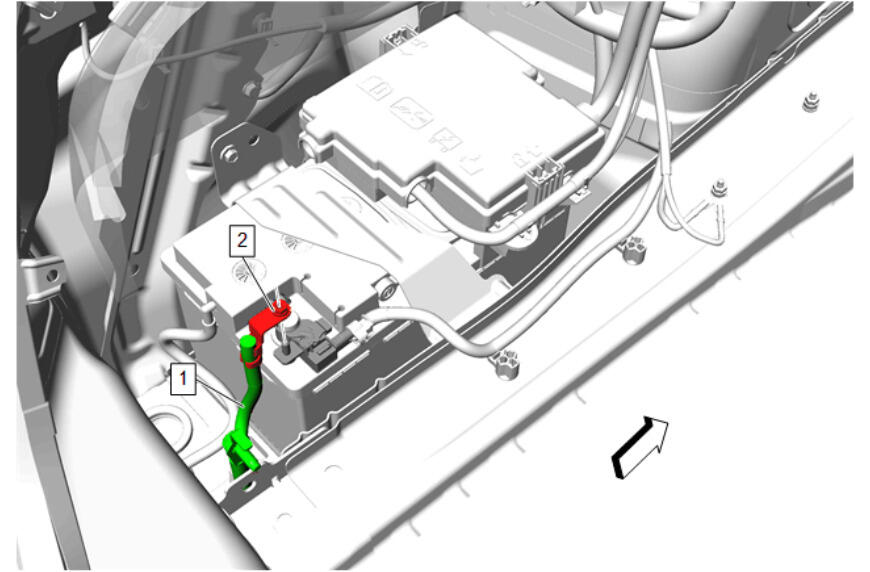

  3. GM5423970Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable (1) - Install

  4. Battery Negative Cable Nut (2) @Battery Monitor Module - Install and tighten 9 N.m (80 lb in)
  5. Install the rear compartment side trim panel. Rear Compartment Side Trim Replacement - Left Side
