Installation Procedure

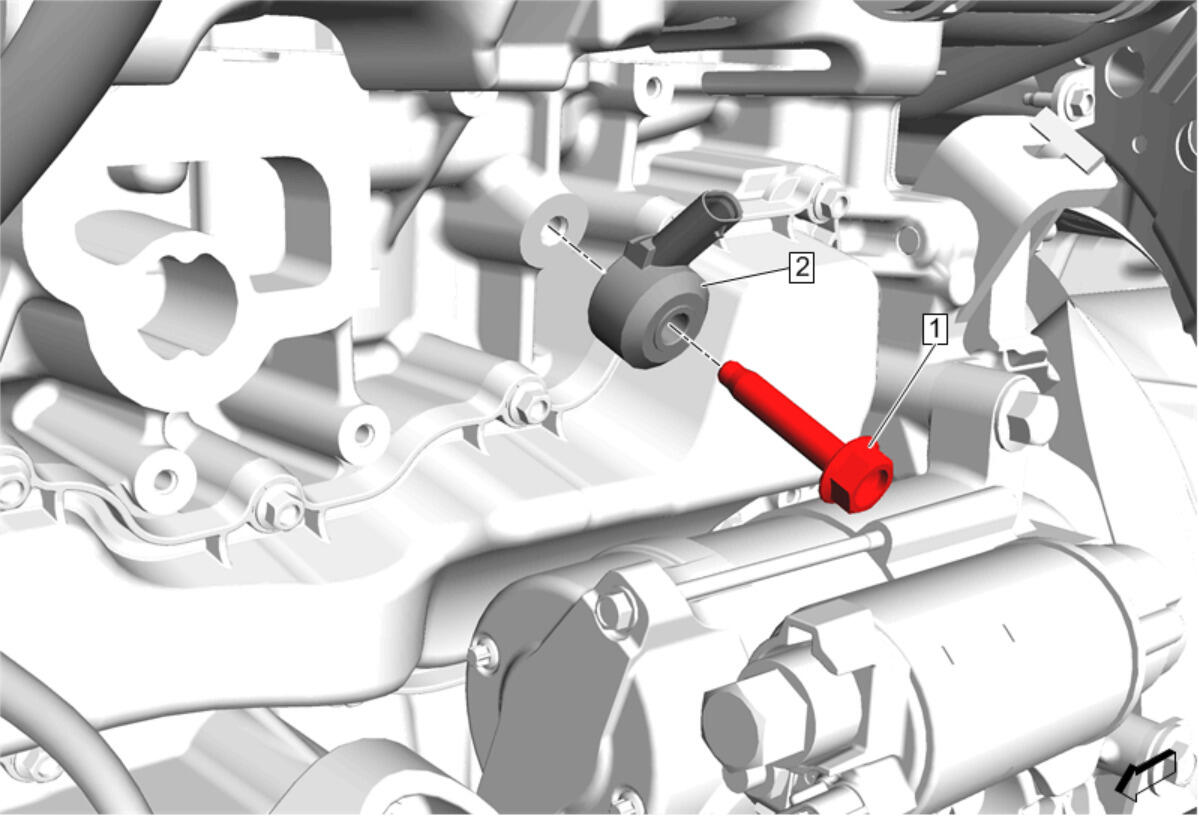

GM5395585Courtesy of GENERAL MOTORS COMPANY
  1. Knock Sensor (2) - Install
    2. CAUTION:

    Refer to Fastener Caution

  2. Knock Sensor Bolt (1) - Install and tighten - Fastener Specifications
  3. Connect the knock sensor electrical connector.
  4. GM5399689Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Flow Control Valve Seal (2) - Install NEW

  5. Engine Coolant Flow Control Valve (1) - Install
  6. GM5399685Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Flow Control Valve Bolt (1) - Install and tighten [5x] - Fastener Specifications

  7. GM5399683Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (2) @ Engine Coolant Flow Control Valve - Connect [2x]

  8. Electrical Connector (1) @ Engine Coolant Temperature Sensor - Connect
  9. GM5399673Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Thermostat Housing Inlet Pipe (3) @ Engine Coolant Flow Control Valve - Install

  10. Exhaust Manifold Outlet Pipe (2) @ Engine Coolant Flow Control Valve - Install
  11. Hose Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type

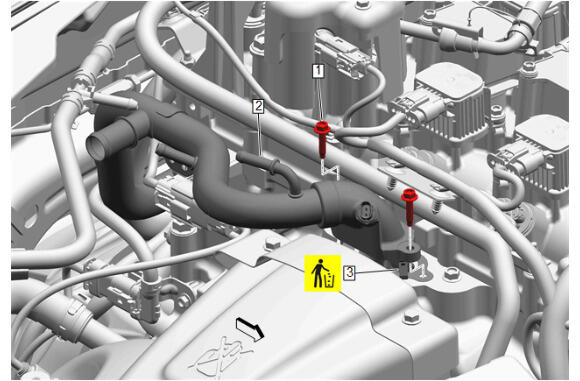

  12. GM5399501Courtesy of GENERAL MOTORS COMPANY

    Exhaust Manifold Outlet Pipe Gasket (3) - Install NEW

  13. Exhaust Manifold Outlet Pipe (2) - Move into position
  14. Exhaust Manifold Outlet Pipe Bolt (1) - Install and tighten [2x] - Fastener Specifications

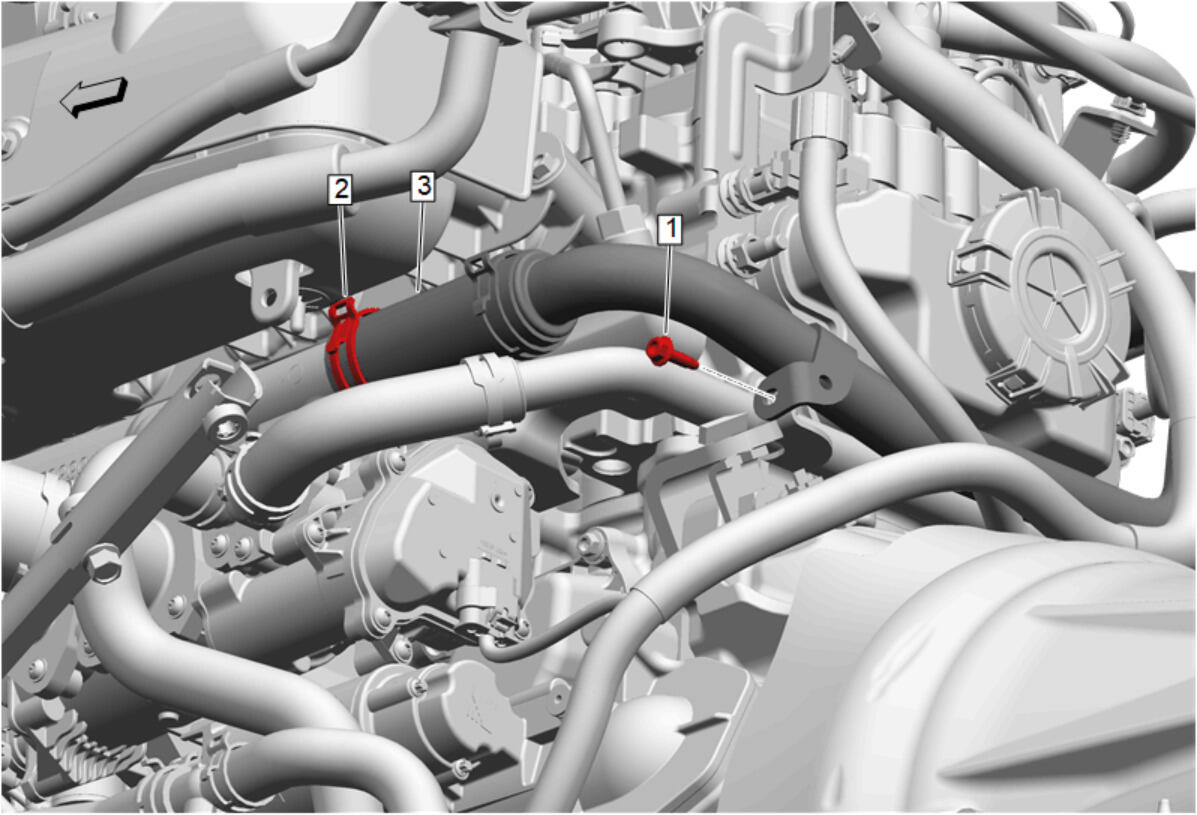

  15. GM5399499Courtesy of GENERAL MOTORS COMPANY

    Exhaust Manifold Outlet Pipe Bolt (1) - Install and tighten - Fastener Specifications

  16. GM5399494Courtesy of GENERAL MOTORS COMPANY

    Exhaust Manifold Outlet Pipe Bolt (2) - Install and tighten - Fastener Specifications

  17. GM5399671Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Cooler Coolant Inlet Hose (4) @ Engine Coolant Flow Control Valve - Install

  18. Radiator Inlet Hose (3) @ Engine Coolant Flow Control Valve - Install
  19. Thermostat Bypass Pipe (2) @ Engine Coolant Flow Control Valve - Install
  20. Hose Clamp (1) - Engage [3x] - Hose Clamp Replacement Guidelines - Spring Type
  21. GM5045008Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Gasket (3) - Install NEW [4x]

  22. Crankcase Vent Passage Seal (4) - Install NEW
  23. GM5507557Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold (1) - Install

  24. GM5508646Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Bolt (1) - Install and tighten [6x] - Fastener Specifications

  25. GM5507451Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Install

  26. GM5399157Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Outlet Air Tube (2) @ Throttle Body (3) - Install

  27. Retainer Spring (1) - Engage
  28. GM5517201Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube (2) - Install

  29. Oil Level Indicator Tube Bracket Bolt (1) - Install and tighten - Fastener Specifications
  30. GM5507441Courtesy of GENERAL MOTORS COMPANY

    Upper Intake Manifold Cover (1) - Install

  31. GM5507437Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover Stud (2) - Install and tighten [3x] - Fastener Specifications

  32. Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
  33. GM5402098Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Pump (2) - Install

  34. Evaporative Emission Canister Purge Pump Bolt (1) - Install and tighten [3x] - Fastener Specifications
  35. GM5504108Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness (4) - Reposition

  36. Retainer (3) - Install [4x]
  37. Electrical Connector (2) - Connect [2x]
  38. Engine Wiring Harness Bolt (1) - Install and tighten - Fastener Specifications
  39. GM5509132Courtesy of GENERAL MOTORS COMPANY

    Throttle Body Electrical Connector (1) - Connect

  40. GM5504095Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Inlet Hose (3) - Reposition

  41. Retainer (2) - Install [3x]
  42. Evaporative Emission Canister Purge Tube (1) - Connect
  43. GM5504092Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Pipe (2) - Connect

  44. Fuel Feed Pipe (1) - Connect
  45. GM5129466Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Pipe Bolt (1) @ Evaporative Emission Canister Purge Pump - Install and tighten - Fastener Specifications

  46. GM5456829Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the intake manifold cover insulator retainers fully engage the intake manifold cover studs.

    Intake Manifold Cover Insulator (1) - Install

  47. GM5456746Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover Bolt (1) - Install and tighten - Fastener Specifications

  48. GM5432174Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install

  49. GM5432171Courtesy of GENERAL MOTORS COMPANY

    Push down on the front of the intake manifold cover (2).

  50. Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
  51. Install the oil fill cap.
  52. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  53. Raise the vehicle.
  54. Fill the cooling system. Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716)
  55. Pressurize the fuel system and inspect for leaks.
  56. Perform the intake system learned values reset. Intake System Learned Values Reset
  57. Perform the engine coolant control valve learn. Engine Coolant Control Valve Learn
  58. Perform the engine coolant pump data reset. Engine Coolant Pump Data Reset
