Installation Procedure

GM5395582Courtesy of GENERAL MOTORS COMPANY
  1. Knock Sensor (2) - Install
    2. CAUTION:

    Refer to Fastener Caution

  2. Knock Sensor Bolt (1) - Install and tighten - Fastener Specifications
  3. Connect the knock sensor electrical connector.

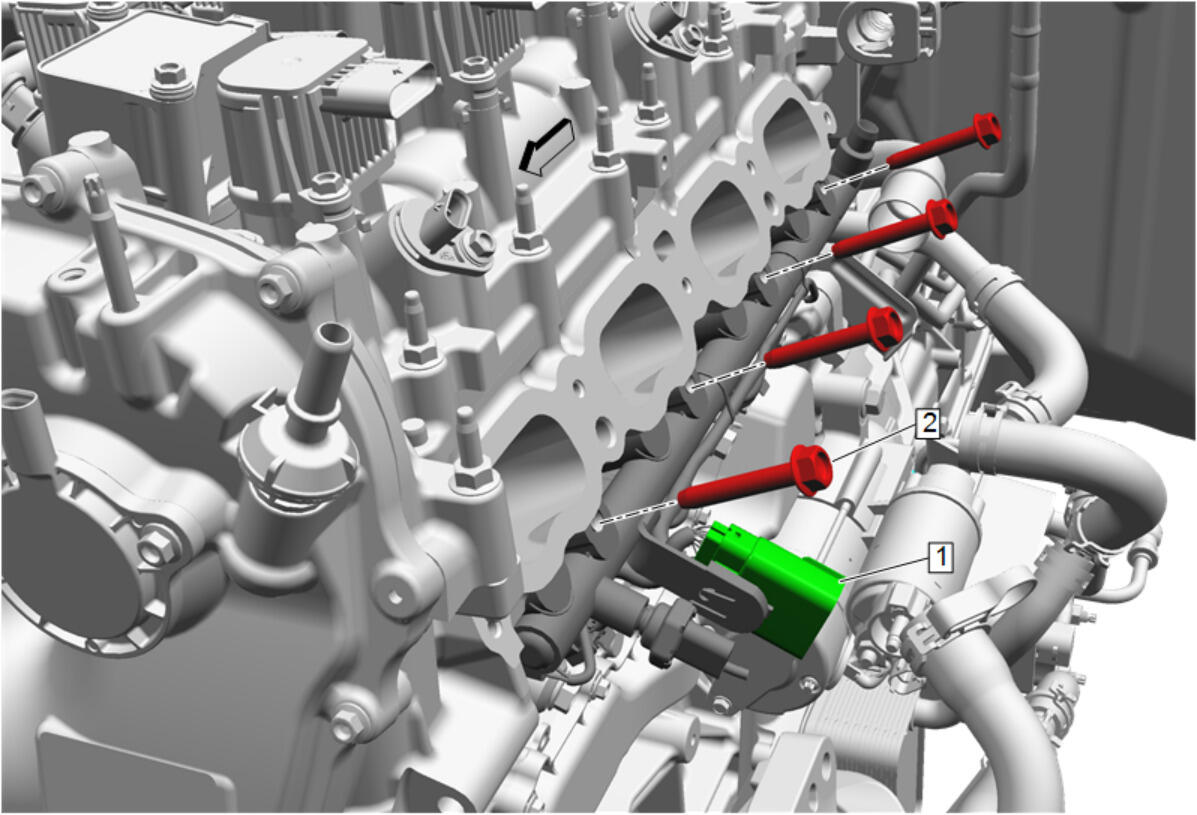

  4. GM5133779Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  5. GM5045008Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Gasket (3) - Install NEW [4x]

  6. Crankcase Vent Passage Seal (4) - Install NEW
  7. GM5507557Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold (1) - Install

  8. GM5508646Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Bolt (1) - Install and tighten [6x] - Fastener Specifications

  9. GM5507451Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Install

  10. GM5399157Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Outlet Air Tube (2) @ Throttle Body (3) - Install

  11. Retainer Spring (1) - Engage
  12. GM5507441Courtesy of GENERAL MOTORS COMPANY

    Upper Intake Manifold Cover (1) - Install

  13. GM5507437Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover Stud (2) - Install and tighten [3x] - Fastener Specifications

  14. Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
  15. GM5402098Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Pump (2) - Install

  16. Evaporative Emission Canister Purge Pump Bolt (1) - Install and tighten [3x] - Fastener Specifications

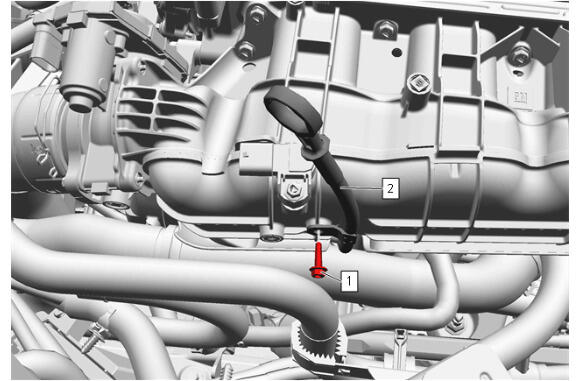

  17. GM5517201Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube (2) - Install

  18. Oil Level Indicator Tube Bracket Bolt (1) - Install and tighten - Fastener Specifications
  19. GM5504108Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness (4) - Reposition

  20. Retainer (3) - Install [4x]
  21. Electrical Connector (2) - Connect [2x]
  22. Engine Wiring Harness Bolt (1) - Install and tighten - Fastener Specifications
  23. GM5509132Courtesy of GENERAL MOTORS COMPANY

    Throttle Body Electrical Connector (1) - Connect

  24. GM5504095Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Inlet Hose (3) - Reposition

  25. Retainer (2) - Install [3x]
  26. Evaporative Emission Canister Purge Tube (1) - Connect
  27. GM5504092Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Pipe (2) - Connect

  28. Fuel Feed Pipe (1) - Connect

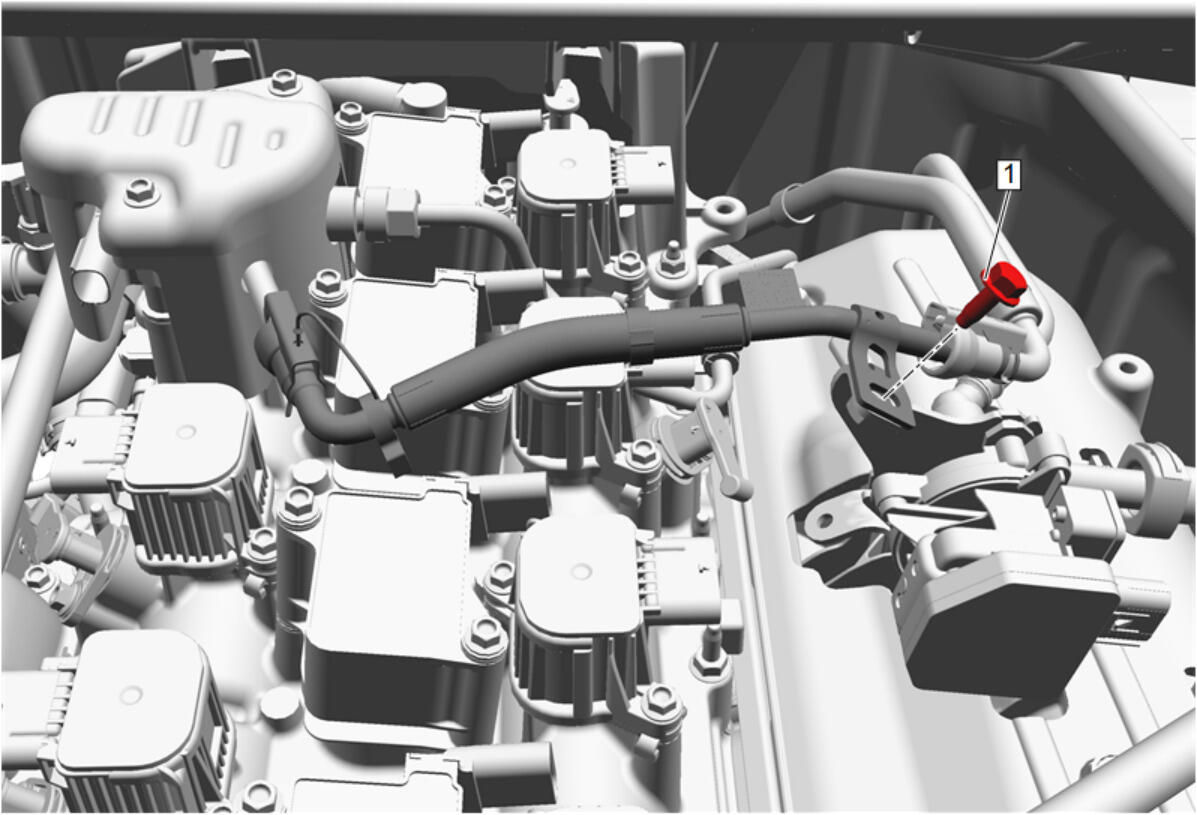

  29. GM5129466Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Pipe Bolt (1) @ Evaporative Emission Canister Purge Pump - Install and tighten - Fastener Specifications

  30. GM5456829Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the intake manifold cover insulator retainers fully engage the intake manifold cover studs.

    Intake Manifold Cover Insulator (1) - Install

  31. GM5456746Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover Bolt (1) - Install and tighten - Fastener Specifications

  32. GM5432174Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install

  33. GM5432171Courtesy of GENERAL MOTORS COMPANY

    Push down on the front of the intake manifold cover (2).

  34. Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
  35. Install the oil fill cap.
  36. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  37. Pressurize the fuel system and inspect for leaks.
  38. Perform the intake system learned values reset. Intake System Learned Values Reset
  39. Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
