Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

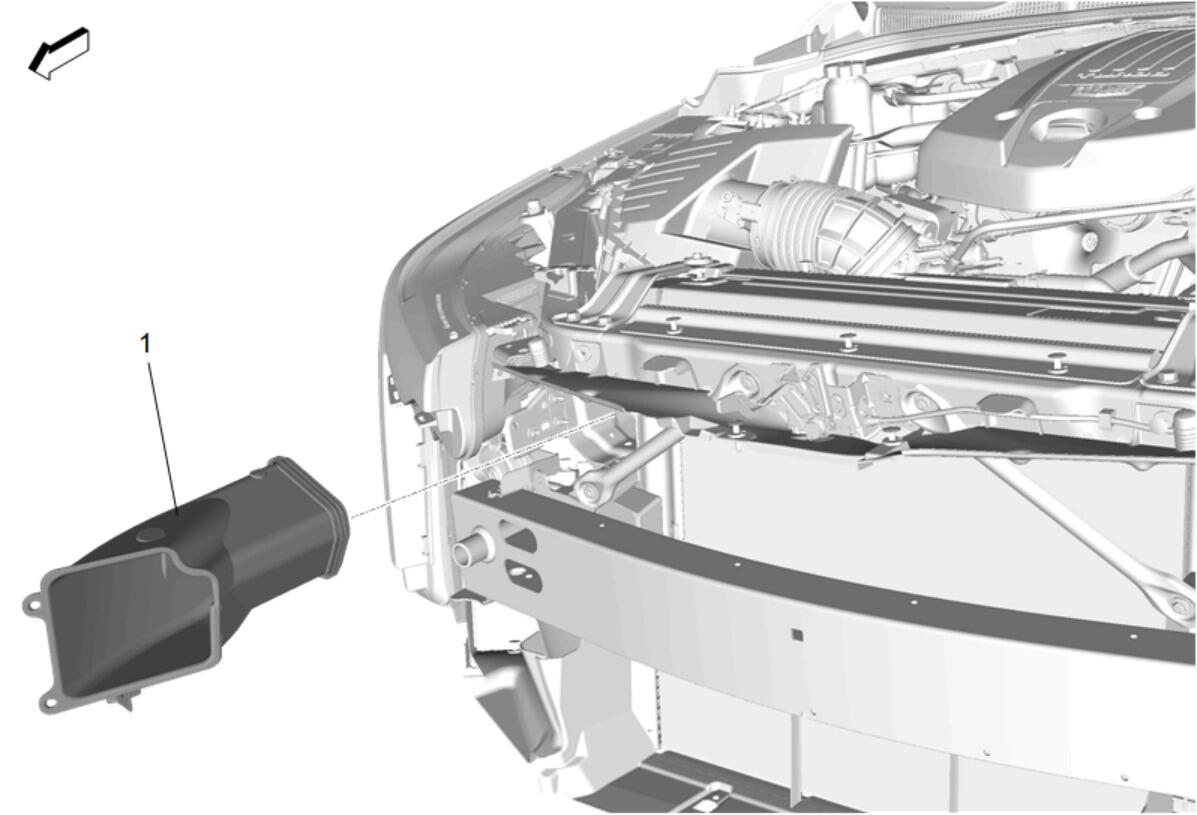

Intake Air Duct (1) - Install
Courtesy of GENERAL MOTORS COMPANY

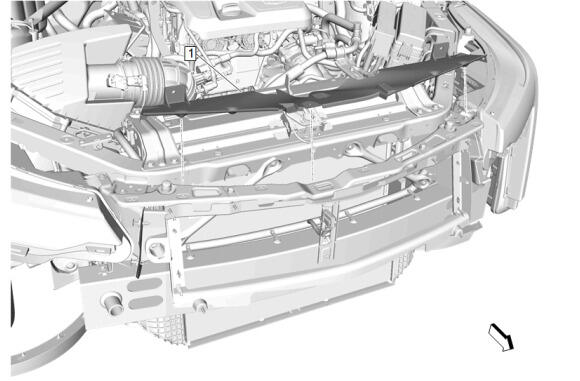

Radiator Air Front Upper Baffle (1) - Install
Courtesy of GENERAL MOTORS COMPANY

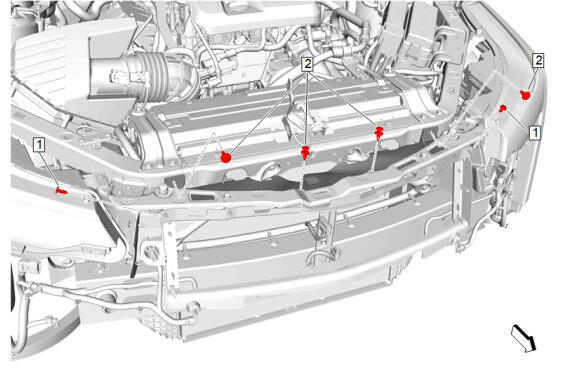

Radiator Air Upper Baffle Retainer (2) - Install [4x]
Radiator Air Upper Baffle Retainer - Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

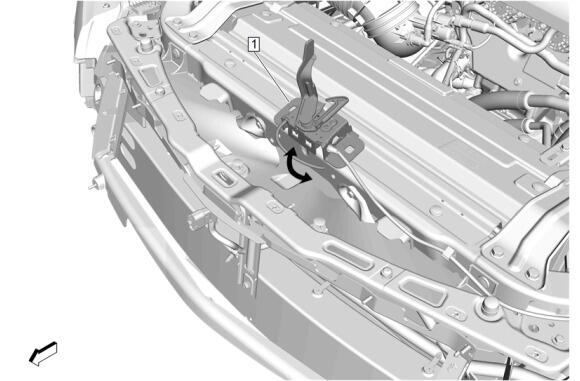

Hood Primary and Secondary Latch (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

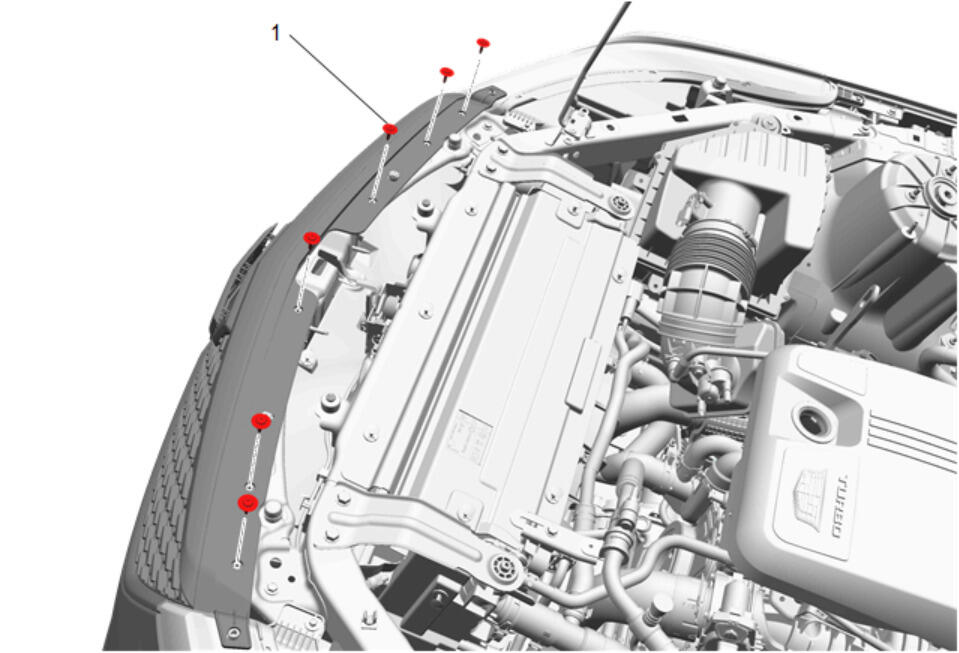

Front Bumper Fascia Bolt (1) - Install and tighten [6x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

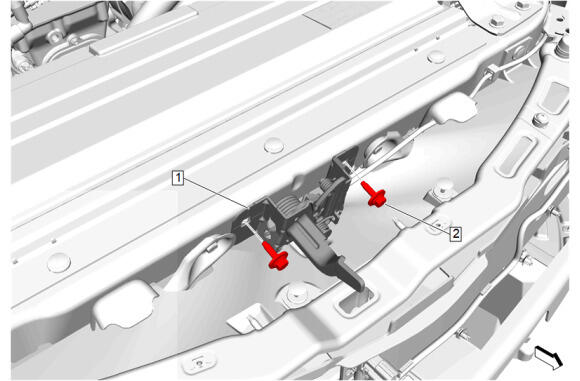

Align the hood primary and secondary latch (1) with the marks made during removal.
Hood Primary and Secondary Latch Bolt (2) - Install and tighten [2x] - Fastener Specifications
Adjust the hood primary and secondary latch (1) if necessary.
