Installation Procedure

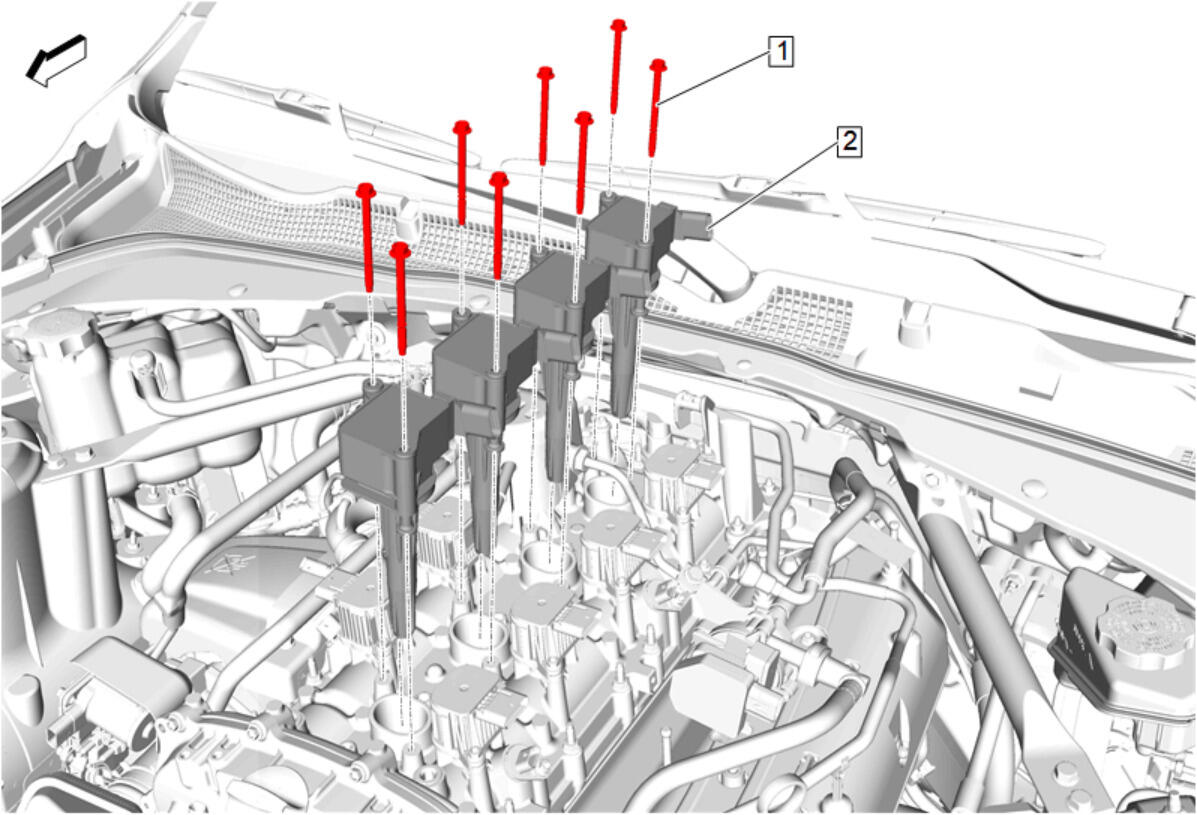

  1. GM5404490Courtesy of GENERAL MOTORS COMPANY

    Ignition Coil (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Ignition Coil Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. Connect the ignition coil electrical connector.
  4. GM5457786Courtesy of GENERAL MOTORS COMPANY

    Upper Intake Manifold Bracket (2) - Install

  5. Upper Intake Manifold Cover Nut (1) - Install and tighten [2x] - Fastener Specifications
  6. GM5457857Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Inlet Hose Clip (2) @ Upper Intake Manifold Bracket (3) - Install

  7. Upper Intake Manifold Cover Nut (1) - Install and tighten [2x] - Fastener Specifications
  8. GM5457059Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness (2) - Reposition

  9. Electrical Connector (1) - Connect [5x]
  10. GM5432174Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install

  11. GM5432171Courtesy of GENERAL MOTORS COMPANY

    Push down on the front of the intake manifold cover (2).

  12. Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
  13. Install the oil fill cap.
