Installation Procedure
- Clean and inspect O-Ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers

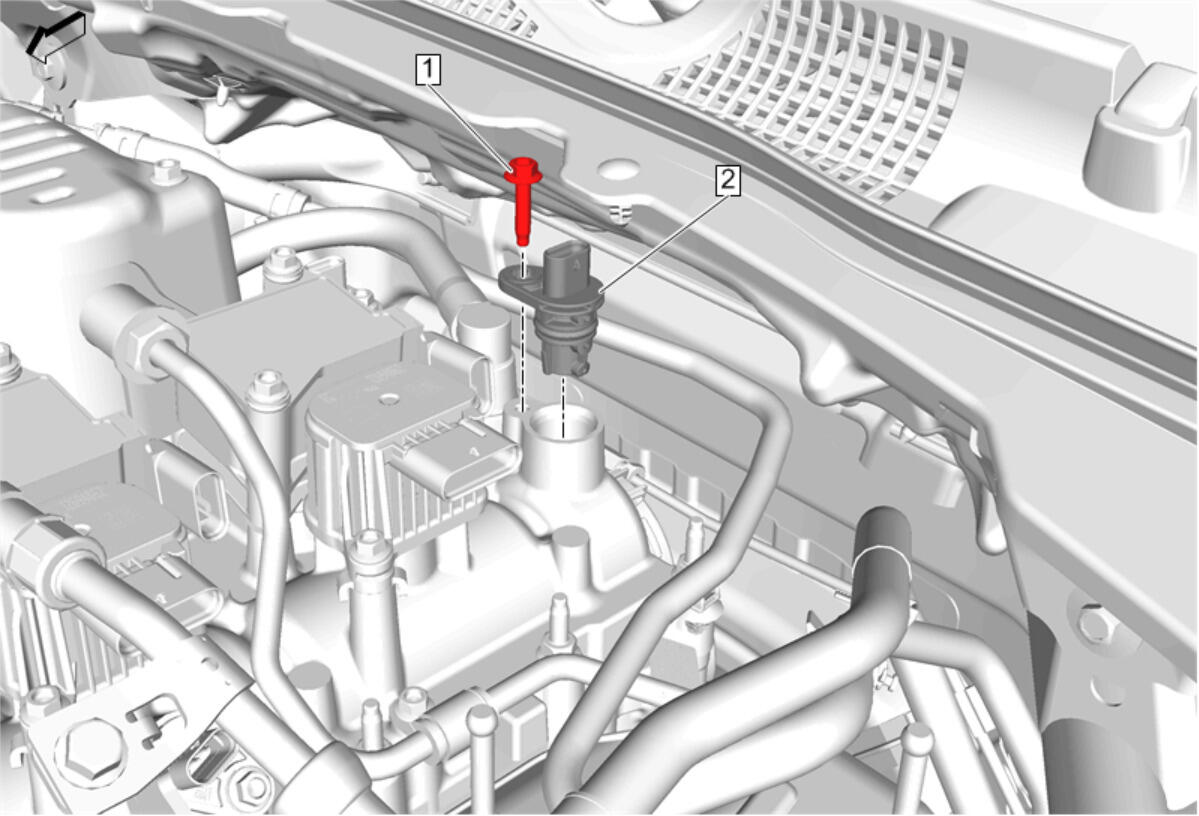

- Camshaft Position Sensor (2) - Install
- Connect the electrical connector.
- Camshaft Position Sensor Bolt (1) - Install and tighten - Fastener Specifications
Upper Intake Manifold Bracket (2) - Install
- Upper Intake Manifold Cover Nut (1) - Install and tighten [2x] - Fastener Specifications
Radiator Surge Tank Inlet Hose Clip (2) @ Upper Intake Manifold Bracket (3) - Install
- Upper Intake Manifold Cover Nut (1) - Install and tighten [2x] - Fastener Specifications
Wiring Harness (2) - Reposition
- Electrical Connector (1) - Connect [5x]
Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install
Push down on the front of the intake manifold cover (2).
- Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Install the oil fill cap.
CAUTION:
Refer to Fastener Caution .
