Installation Procedure

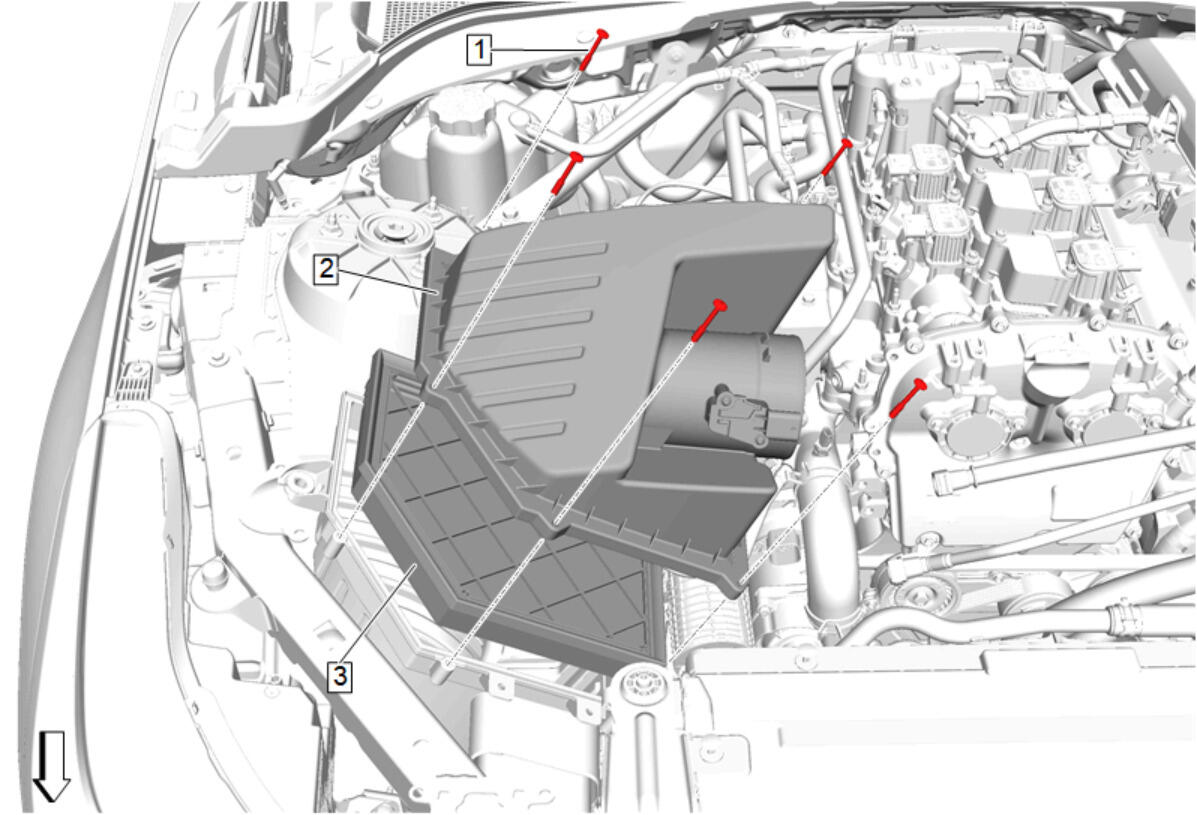

GM5399118Courtesy of GENERAL MOTORS COMPANY
  1. Air Cleaner Element (3) - Install
  2. Air Cleaner Upper Housing (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Air Cleaner Upper Housing Bolt (1) - Install and tighten [5x] - Fastener Specifications

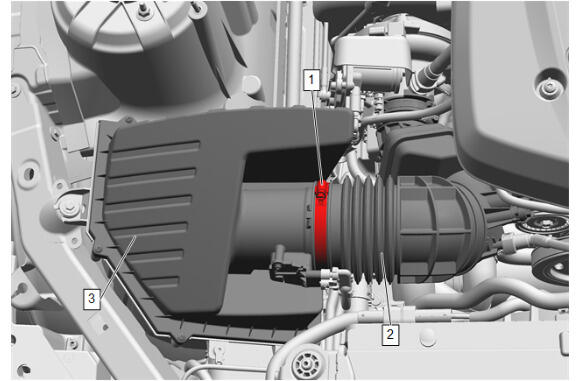

  4. GM5518441Courtesy of GENERAL MOTORS COMPANY

    Connect the mass airflow sensor electrical connector.

  5. Air Cleaner Outlet Duct (2) @ Air Cleaner Upper Housing (3) - Install
  6. Air Cleaner Outlet Duct Clamp (1) - Tighten [2x] - Fastener Specifications
