Fastener Specifications

GM5492264Courtesy of GENERAL MOTORS COMPANY
Fastener, Right Wheelhouse (L3B, AWD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Clip Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
GM5485960Courtesy of GENERAL MOTORS COMPANY
Fasteners, Automatic Transmission Fluid Cooling Exchanger (L3B, AWD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Fluid Cooling Exchanger Bolt [3x] - - 22 N.m (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (L3B, AWD)
GM5493981Courtesy of GENERAL MOTORS COMPANY
Fasteners, Transmission Cooler Bypass Valve (L3B, AWD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Nut - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
2 Transmission Fluid Cooler Thermal Bypass Valve Bolt - - 9 N.m (80 lb in) Transmission Cooler Bypass Valve Replacement (L3B, AWD)
GM5493980Courtesy of GENERAL MOTORS COMPANY
Fasteners, Transmission Side, Transmission Cooler Bypass Valve (L3B, AWD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Connector Bolt [2x] - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
2 Transmission Fluid Cooler Pipe Nut - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
3 Transmission Fluid Cooler Pipe Bolt - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
GM5427411Courtesy of GENERAL MOTORS COMPANY
Fasteners and Seal, Transmission Fluid Auxiliary Cooler (L3B, AWD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bracket Bolt - - 6 N.m (53 lb in) Transmission Fluid Auxiliary Cooler Replacement (LSY, RWD, with V03)
2 Transmission Fluid Cooler Pipe Nut - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
3 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
GM5484134Courtesy of GENERAL MOTORS COMPANY
Fasteners, Transmission Cooler Bypass Valve (L3B, RWD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Clip Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)
2 Transmission Fluid Cooler Pipe Nut [2x] - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)
3 Transmission Fluid Cooler Thermal Bypass Valve Bolt - - 9 N.m (80 lb in) Transmission Cooler Bypass Valve Replacement (L3B, RWD)
GM5427411Courtesy of GENERAL MOTORS COMPANY
Fasteners and Seal, Transmission Fluid Auxiliary Cooler (L3B, RWD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bracket Bolt - - 6 N.m (53 lb in) Transmission Fluid Auxiliary Cooler Replacement (LSY, RWD, with V03)
2 Transmission Fluid Cooler Pipe Nut - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)
3 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)
GM5484129Courtesy of GENERAL MOTORS COMPANY
Fasteners and Seals, Transmission Side (L3B, RWD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bolt - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)
2 Transmission Fluid Cooler Pipe Connector Bolt [2x] - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)
3 Transmission Fluid Cooler Pipe Clip Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)
4 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)
5 Transmission Fluid Cooler Pipe Seal [2x] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)
Fig 1: Identifying Automatic Transmission Fluid Cooling Exchanger Seal Components And Fasteners - Transmission Side (LSY - RWD With V03)
GM5427408Courtesy of GENERAL MOTORS COMPANY
Fasteners, Automatic Transmission Fluid Cooling Exchanger, Transmission Side (LSY, RWD, with V03)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Fluid Cooling Exchanger Bolt [2x] - - 22 N.m (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, with V03)
2 Transmission Fluid Auxiliary Cooler Bracket Nut   - 22 N.m (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, with V03)
3 Transmission Fluid Cooler Pipe Bolt   - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)
4 Transmission Fluid Cooler Pipe Clip Bolt   - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)
5 Transmission Fluid Cooler Pipe Nut [2x]   - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)
6 Transmission Fluid Cooler Pipe Seal [2x] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)
7 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)
GM5427411Courtesy of GENERAL MOTORS COMPANY
Fasteners and Seal, Transmission Fluid Auxiliary Cooler (LSY, RWD, with V03)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bracket Bolt - - 6 N.m (53 lb in) Transmission Fluid Auxiliary Cooler Replacement (LSY, RWD, with V03)
2 Transmission Fluid Cooler Pipe Nut - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)
3 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)
GM5427409Courtesy of GENERAL MOTORS COMPANY
Fasteners and Seals, Transmission Cooler Bypass Valve (LSY, RWD, with V03)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Clip Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)
2 Transmission Fluid Cooler Pipe Nut [2x] - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)
3 Transmission Fluid Cooler Thermal Bypass Valve Gasket [4x] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side)
4 Transmission Fluid Cooler Thermal Bypass Valve Bolt - - 9 N.m (80 lb in) Transmission Cooler Bypass Valve Replacement (LSY, RWD, with V03)
Fig 2: Identifying Automatic Transmission Fluid Cooling Exchanger Seal Components And Fasteners - Transmission Side (LSY - RWD Without V03)
GM5415625Courtesy of GENERAL MOTORS COMPANY
Fasteners and Seals, Automatic Transmission Fluid Cooling Exchanger, Transmission Side, Transmission Side (LSY, RWD, without V03)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Auxiliary Cooler Bolt [2x] - - 22 N.m (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, without V03)
2 Transmission Fluid Auxiliary Cooler Nut - - 22 N.m (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, without V03)
3 Transmission Fluid Cooler Pipe Bolt - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03)
4 Transmission Fluid Cooler Pipe Nut [2x] - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03)
5 Transmission Fluid Cooler Pipe Seal [2x] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03)
6 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03)

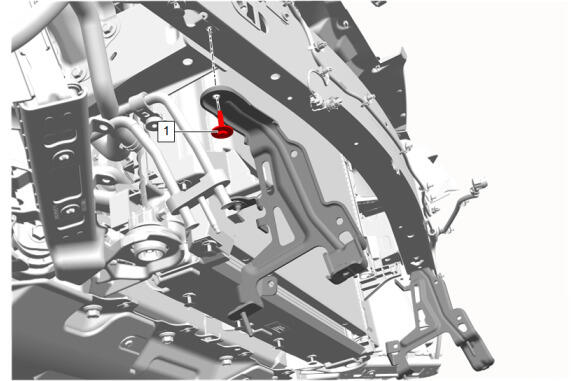

GM5880591Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Auxiliary Cooler Bracket (Blackwing)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Auxiliary Cooler Bracket Bolt [2x] - - 9 N.m (80 lb in) Transmission Fluid Auxiliary Cooler Bracket Replacement (Right) , or Transmission Fluid Auxiliary Cooler Bracket Replacement (Left)

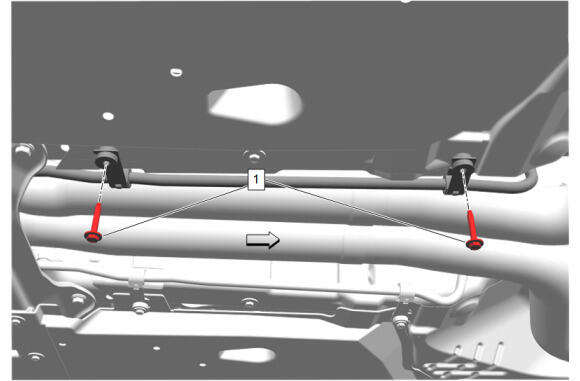

GM5880848Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Auxiliary Cooler Inlet Pipe (Blackwing)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Clamp Bolt [2x] - - 9 N.m (80 lb in) Transmission Fluid Auxiliary Cooler Inlet Pipe Replacement (LF4 with MHU) , or Transmission Fluid Auxiliary Cooler Inlet Pipe Replacement (LF4 with MG9)

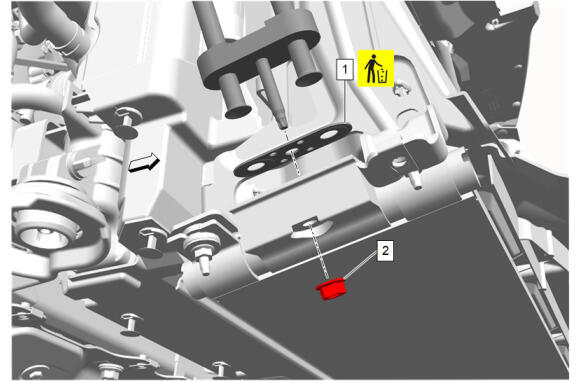

GM5880851Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Auxiliary Cooler Inlet and Outlet Pipe (Blackwing)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Auxiliary Cooler Replacement (Blackwing)
2 Transmission Fluid Cooler Pipe Nut - - 22 N.m (16 lb ft) Transmission Fluid Auxiliary Cooler Replacement (Blackwing)

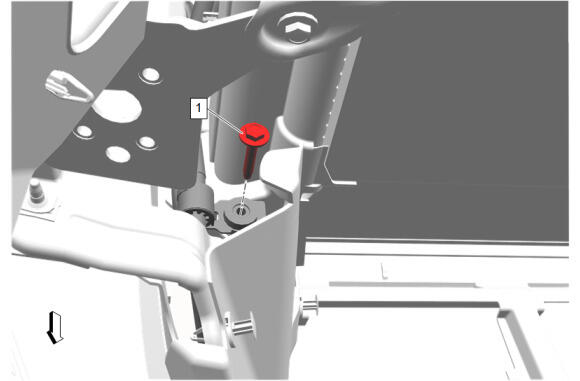

GM5867466Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe (Blackwing)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bracket Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 with MG9) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 with MHU)

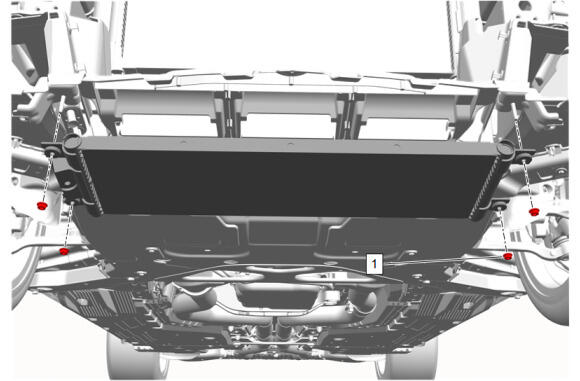

GM5880863Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Auxiliary Cooler Mounting Bracket (Blackwing)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Auxiliary Cooler Bracket Nut [4x] - - 9 N.m (80 lb in) Transmission Fluid Auxiliary Cooler Replacement (Blackwing)

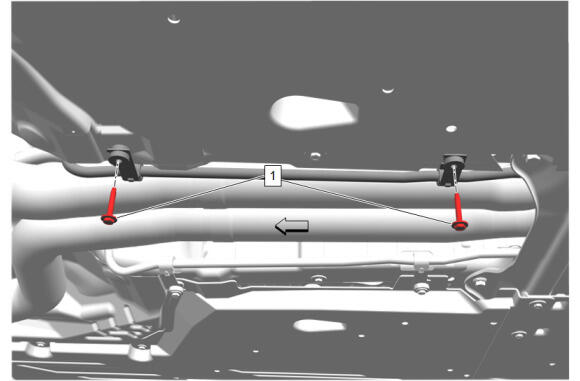

GM5880900Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Auxiliary Cooler Outlet Pipe (Blackwing)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Clamp Bolt [2x] - - 9 N.m (80 lb in) Transmission Fluid Auxiliary Cooler Outlet Pipe Replacement (LF4 with MHU) , or Transmission Fluid Auxiliary Cooler Outlet Pipe Replacement (LF4 with MG9)

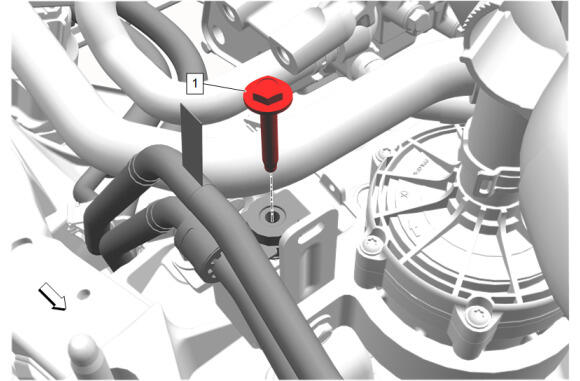

GM5862934Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Pipe Bracket Bolt @ Frame (Blackwing)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bracket Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 with MG9) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 with MHU)

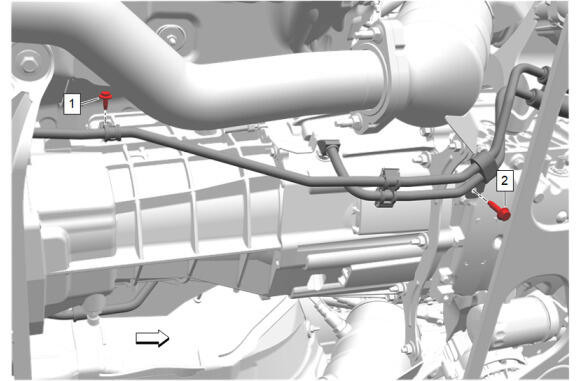

GM5862651Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe (MG9)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 with MG9)
2 Transmission Fluid Cooler Pipe Connector Bolt - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 with MG9)

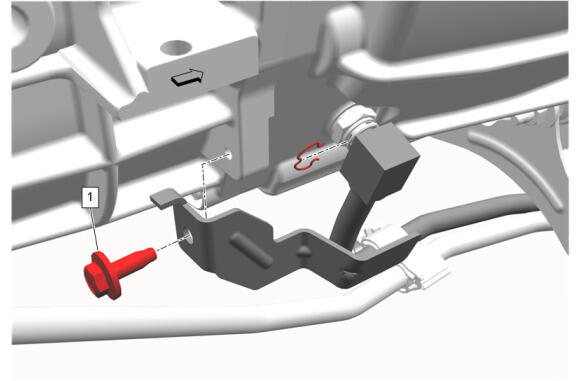

GM5880942Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe (MG9)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 with MG9)

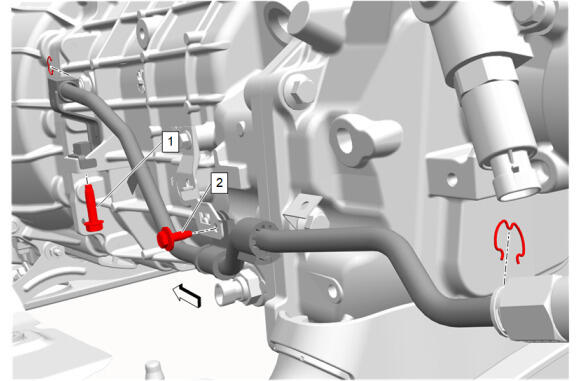

GM5880988Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Pipe (MG9)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bolt - - 22 N.m (16 lb ft) Transmission Fluid Cooler Pipe Replacement (LF4 with MG9)
2 Transmission Fluid Cooler Pipe Bracket Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Pipe Replacement (LF4 with MG9)

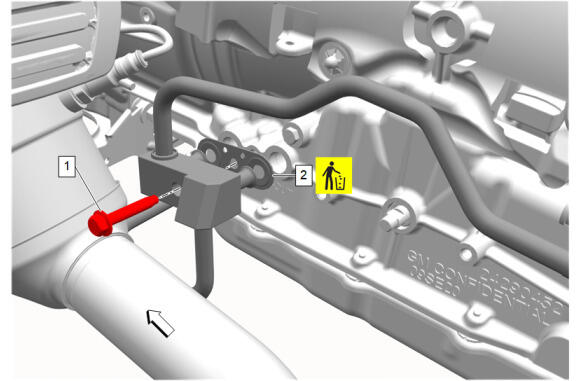

GM5881204Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe (Blackwing)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bolt - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 with MHU)
2 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 with MHU)

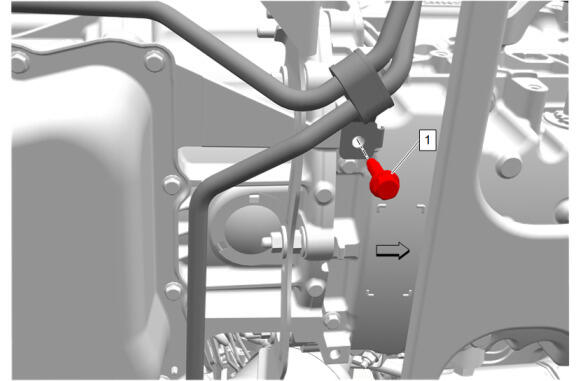

GM5863963Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe (Blackwing)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Connector Bolt - - 22 N.m (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 with MHU)

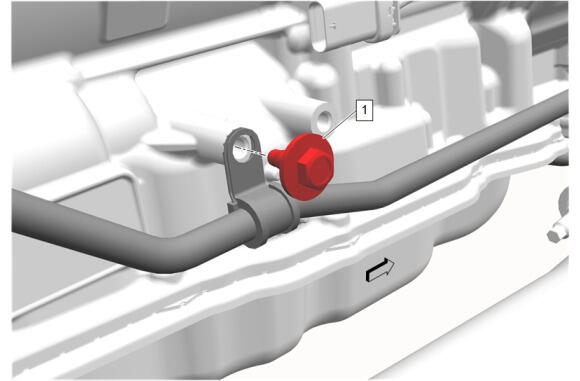

GM5863966Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe (Blackwing)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bracket Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 with MHU)

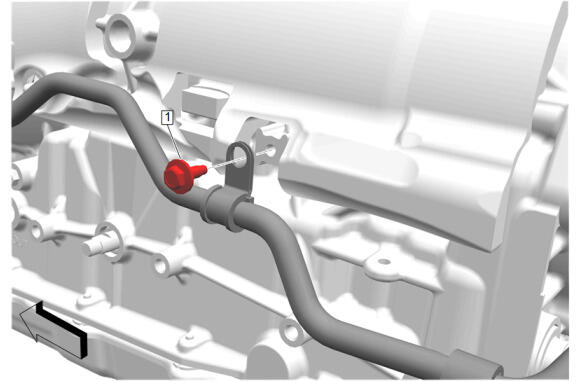

GM6123428Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Inlet and Outlet Pipe (Blackwing)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bracket Bolt - - 9 N.m (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 with MHU)
GM5484131Courtesy of GENERAL MOTORS COMPANY
Seals, Fluid Cooler Pipe (L3B, RWD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Seal [4x] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side)
GM5485738Courtesy of GENERAL MOTORS COMPANY
Seals, Thermal Bypass Valve (L3B, AWD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
2 Transmission Fluid Cooler Thermal Bypass Valve Gasket [2x] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
3 Transmission Fluid Cooler Pipe Seal [2x] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
GM5494015Courtesy of GENERAL MOTORS COMPANY
Seals, Thermal Bypass Valve (L3B, AWD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Thermal Bypass Valve Gasket [2x] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) , or Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
