Installation Procedure

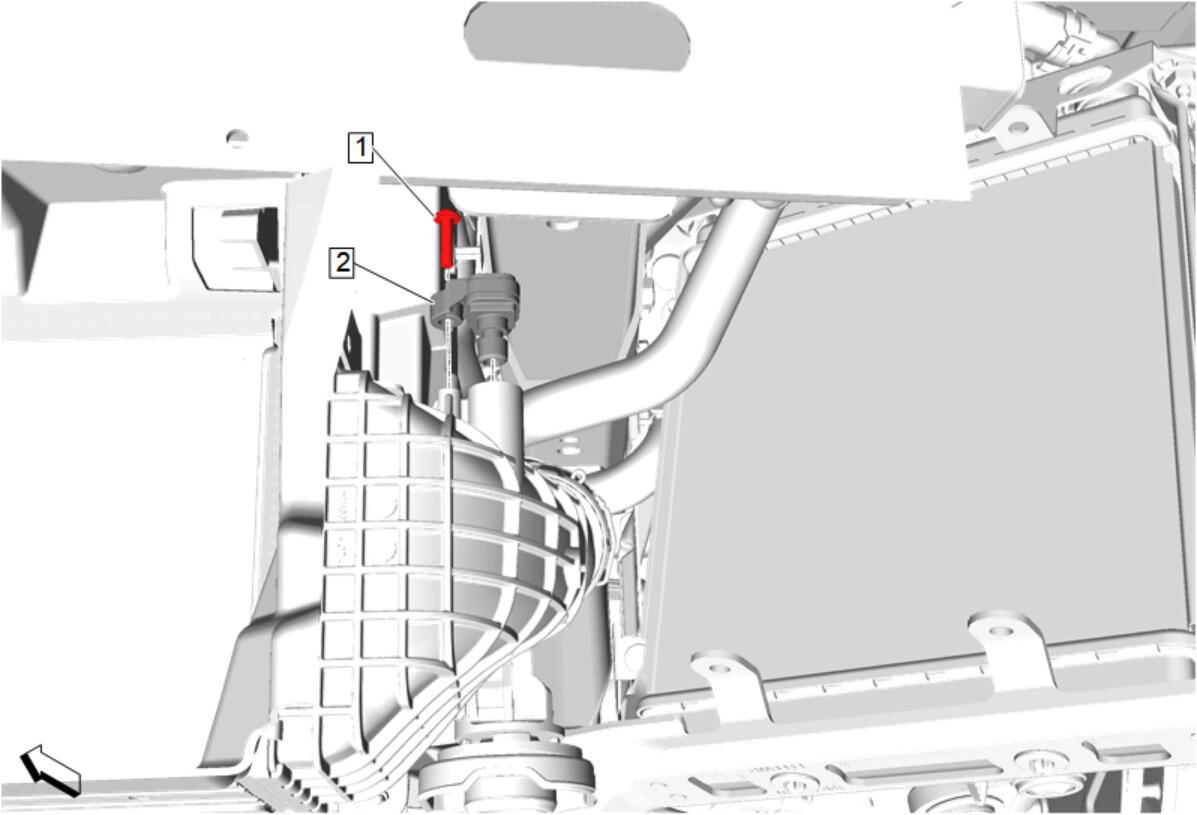

  1. GM5399153Courtesy of GENERAL MOTORS COMPANY

    Clean and inspect O-Ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers

  2. Throttle Inlet Absolute Pressure Sensor (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Throttle Inlet Absolute Pressure Sensor Bolt (1) - Install and tighten - Fastener Specifications

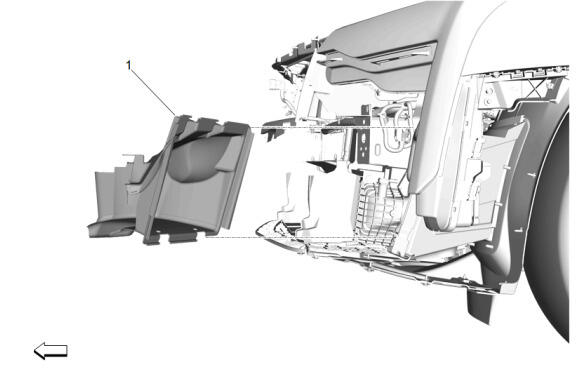

  4. GM5481345Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Radiator Front Duct (1) - Install

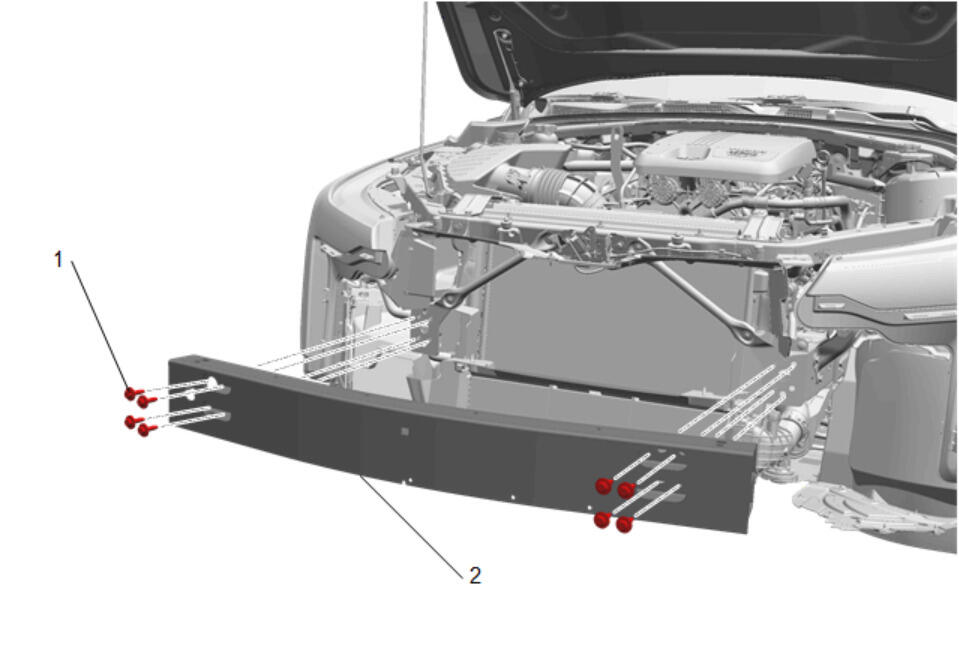

  5. GM5412380Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Impact Bar (2) - Install

    6. CAUTION:

    Refer to Fastener Caution .

  6. Front Bumper Impact Bar Bolt (1) - Install and tighten [8x] - Fastener Specifications
  7. Install the wiring harness.

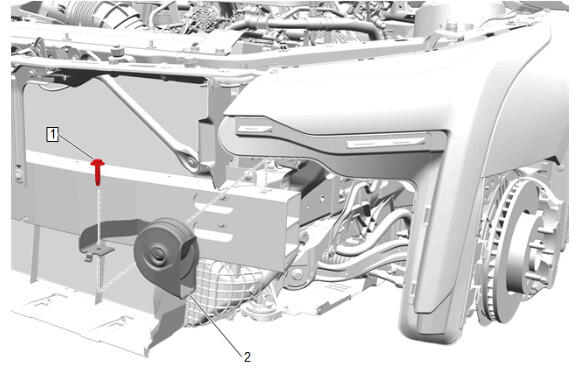

  8. GM5485943Courtesy of GENERAL MOTORS COMPANY

    Horn (2) - Install [2x]

  9. Horn Bolt (1) - Install and tighten [2x] - Fastener Specifications

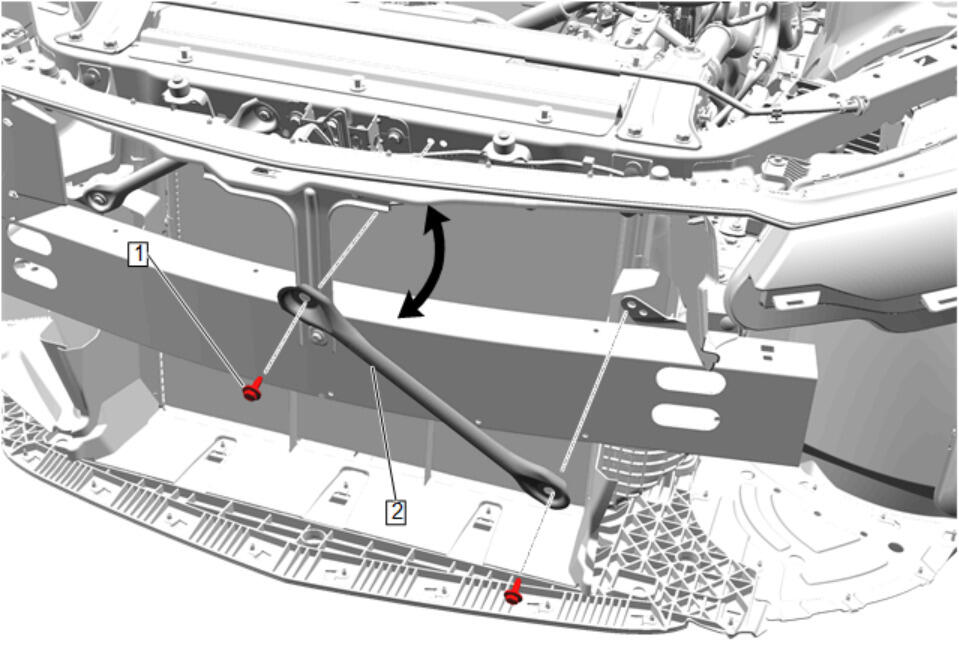

  10. GM5422202Courtesy of GENERAL MOTORS COMPANY

    Front End Sheet Metal Cross Brace (2) - Install [2x]

  11. Front End Sheet Metal Cross Brace Bolt (1) - Install and tighten [4x] - Fastener Specifications

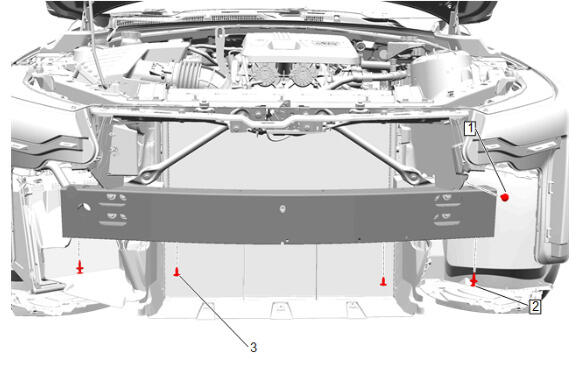

  12. GM5518513Courtesy of GENERAL MOTORS COMPANY

    Intake Air Duct Retainer (1) - Install [2x]

  13. Radiator Air Lower Seal Retainer (2) - Install [2x]
  14. Radiator Air Lower Baffle Retainer (3) - Install [2x]

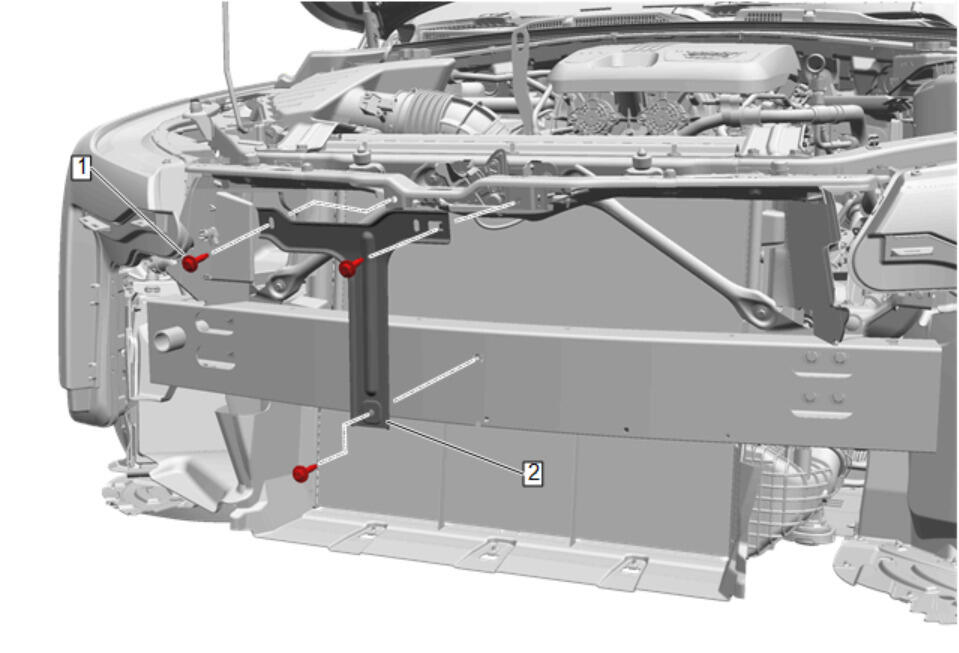

  15. GM5410889Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The front bumper fascia support brace (2) may have a forward range radar sensor attached, if equipped.

    Front Bumper Fascia Support Brace (2) - Install

  16. Front Bumper Fascia Support Brace Bolt (1) - Install and tighten [3x] - Fastener Specifications
  17. Connect the electrical connector to the forward range radar sensor, if equipped.

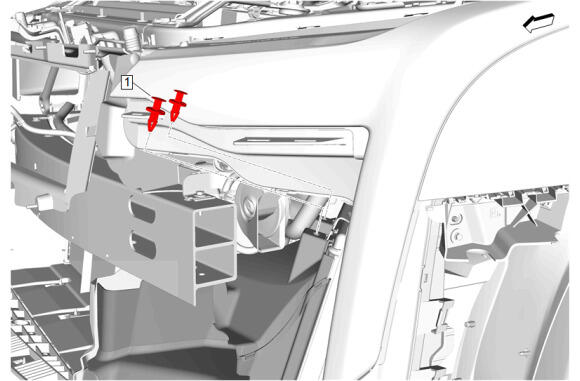

  18. GM5481344Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Radiator Duct Retainer (1) - Install [2x]

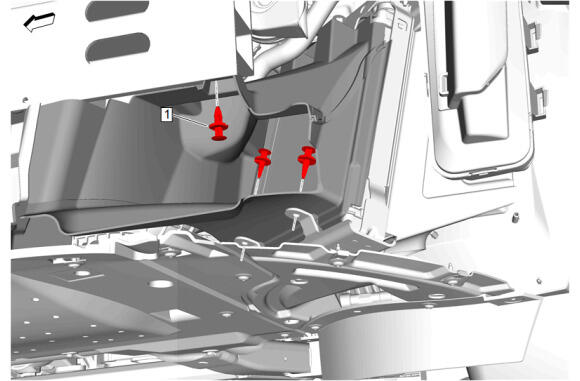

  19. GM5481342Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Radiator Duct Retainer (1) - Install [3x]

  20. GM5408645Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The front bumper fascia will rest in place by guides on the center support upper structure.

    Front Bumper Fascia (1) - Install

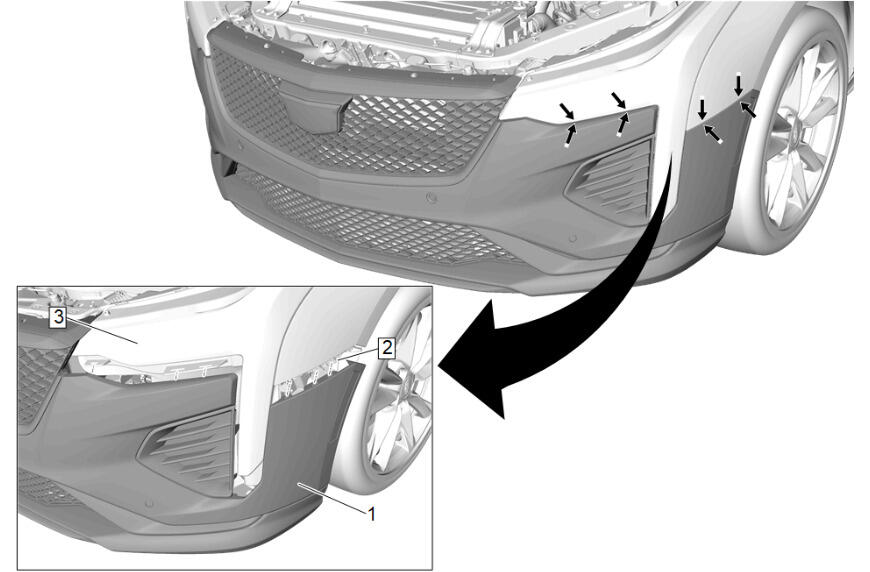

  21. GM5440614Courtesy of GENERAL MOTORS COMPANY

    Install the left side of the front bumper fascia (1) to the front bumper fascia guide (2) and the front headlamp (3).

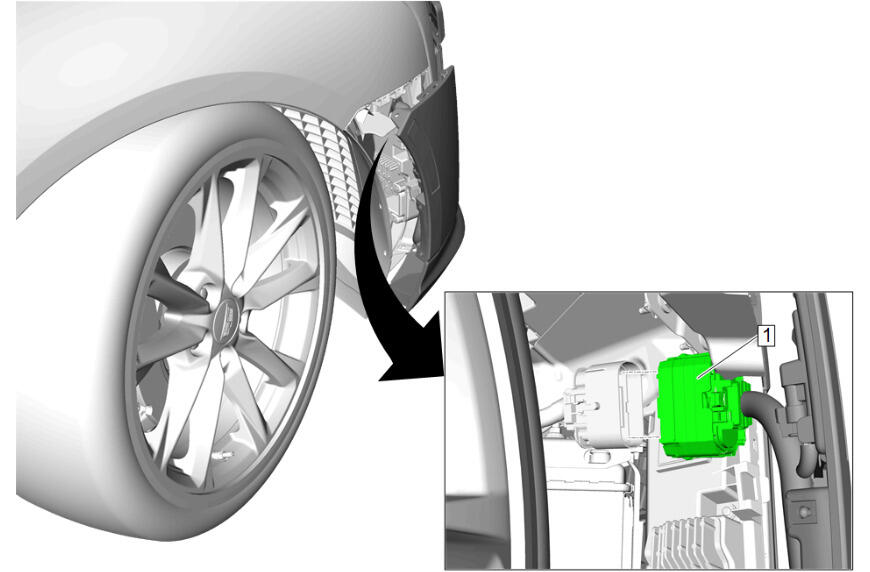

  22. GM5440613Courtesy of GENERAL MOTORS COMPANY

    Reposition the front bumper fascia on the right side to gain access to the electrical connector (1).

  23. Connect the electrical connector.

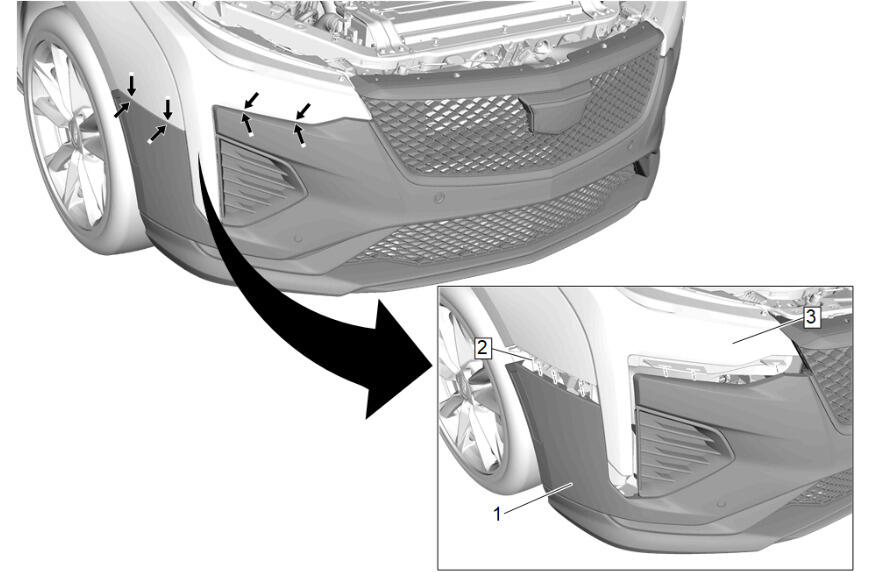

  24. GM5440612Courtesy of GENERAL MOTORS COMPANY

    Install the right side of the front bumper fascia (1) to the front bumper fascia guide (2) and the front headlamp (3).

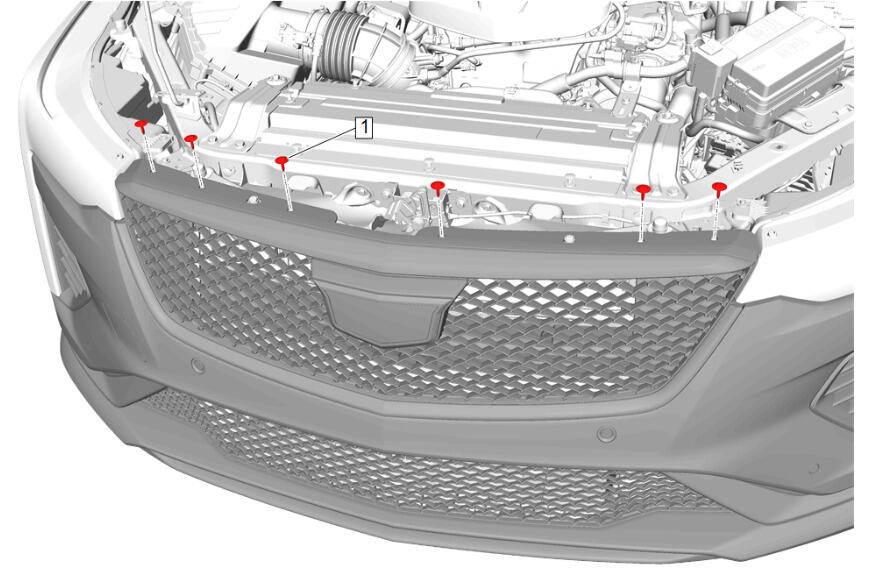

  25. GM5440611Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Bolt (1) - Install and tighten [6x] - Fastener Specifications

  26. Raise and support the vehicle. Lifting and Jacking the Vehicle

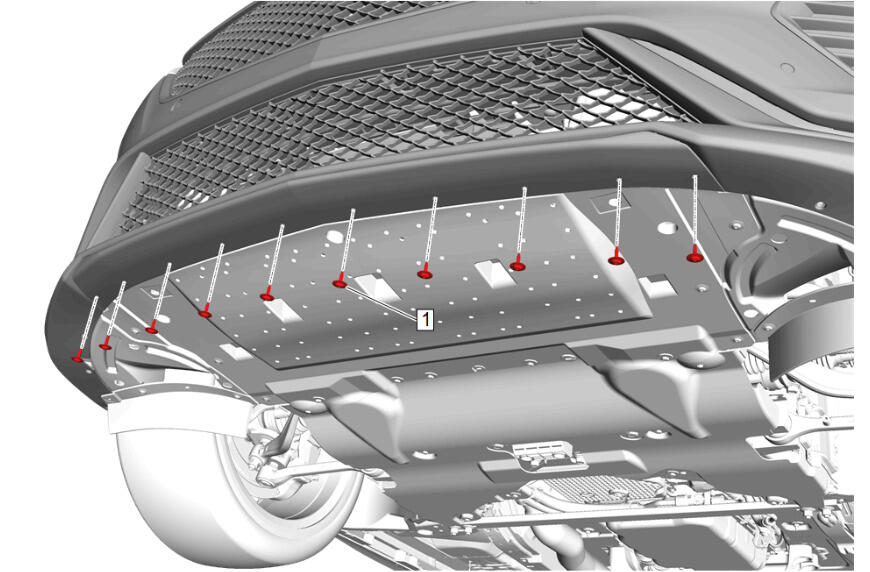

  27. GM5440610Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Center Air Deflector Screw (1) - Install and tighten [10x] - Fastener Specifications

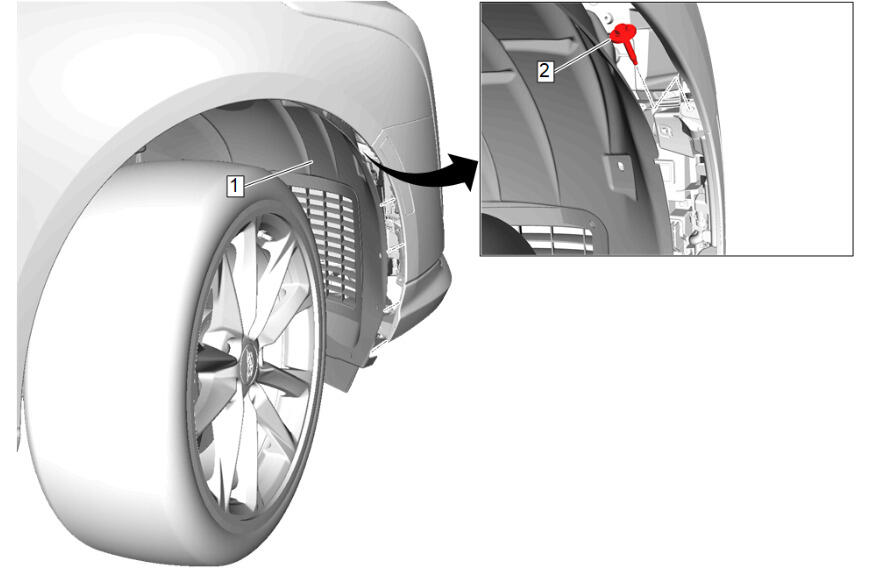

  28. GM5440608Courtesy of GENERAL MOTORS COMPANY

    Reposition the right front wheelhouse liner (1) to install the right side upper front bumper fascia bolt (2).

  29. Install and tighten the right side upper front bumper fascia bolt (2). Fastener Specifications

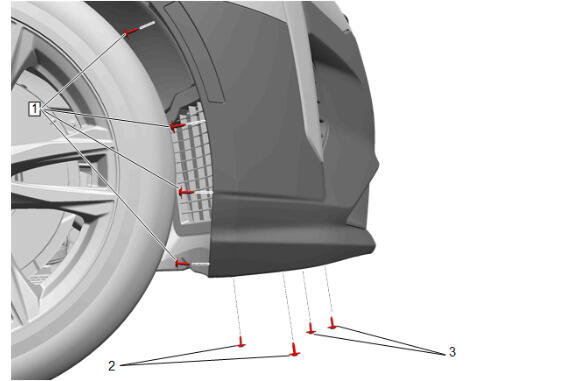

  30. GM5440607Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Bolt - Right Side (3) - Install and tighten [2x] - Fastener Specifications

  31. Front Tire Front Air Deflector Bolt - Right Side (2) - Install and tighten - Fastener Specifications
  32. Front Wheelhouse Liner Bolt - Right Side (1) - Install and tighten [4x] - Fastener Specifications

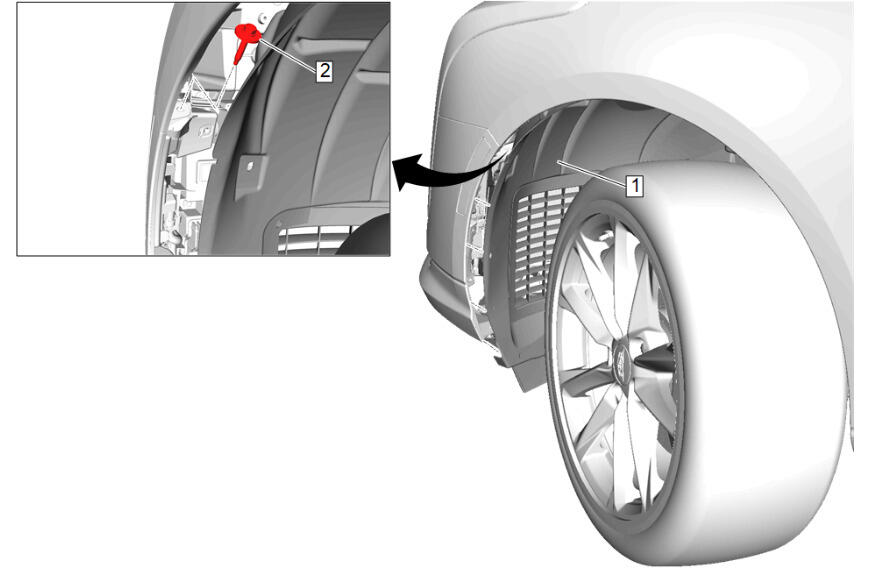

  33. GM5440606Courtesy of GENERAL MOTORS COMPANY

    Reposition the left front wheelhouse liner (1) to install the left side upper front bumper fascia bolt (2).

  34. Install and tighten the left side upper front bumper fascia bolt (2). Fastener Specifications

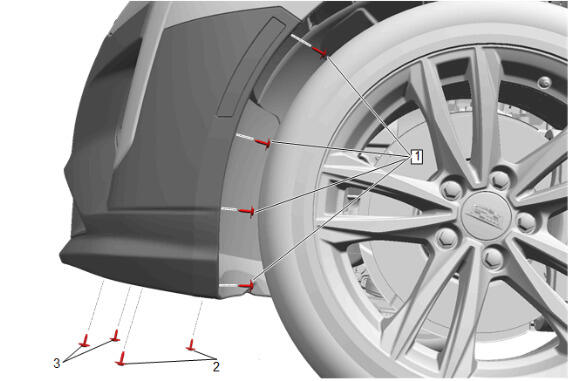

  35. GM5440604Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Bolt - Left Side (3) - Install and tighten [2x] - Fastener Specifications

  36. Front Tire Front Air Deflector Bolt - Left Side (2) - Install and tighten - Fastener Specifications
  37. Front Wheelhouse Liner Bolt - Left Side (1) - Install and tighten [4x] - Fastener Specifications
  38. Remove the support and lower the vehicle.
