Installation Procedure

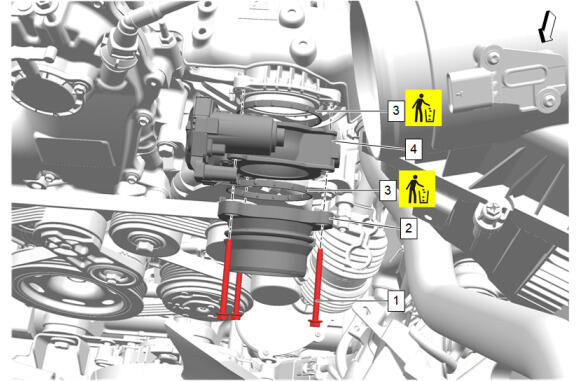

  1. GM5655239Courtesy of GENERAL MOTORS COMPANY

    Throttle Body (4) - Install

  2. Throttle Body Seal (3) - Install NEW [2x]
  3. Throttle Body Adapter (2) - Install
    4. CAUTION:

    Refer to Fastener Caution

  4. Throttle Body Bolt (1) - Install and tighten [3x] - Fastener Specifications
  5. Connect the throttle body electrical connector.

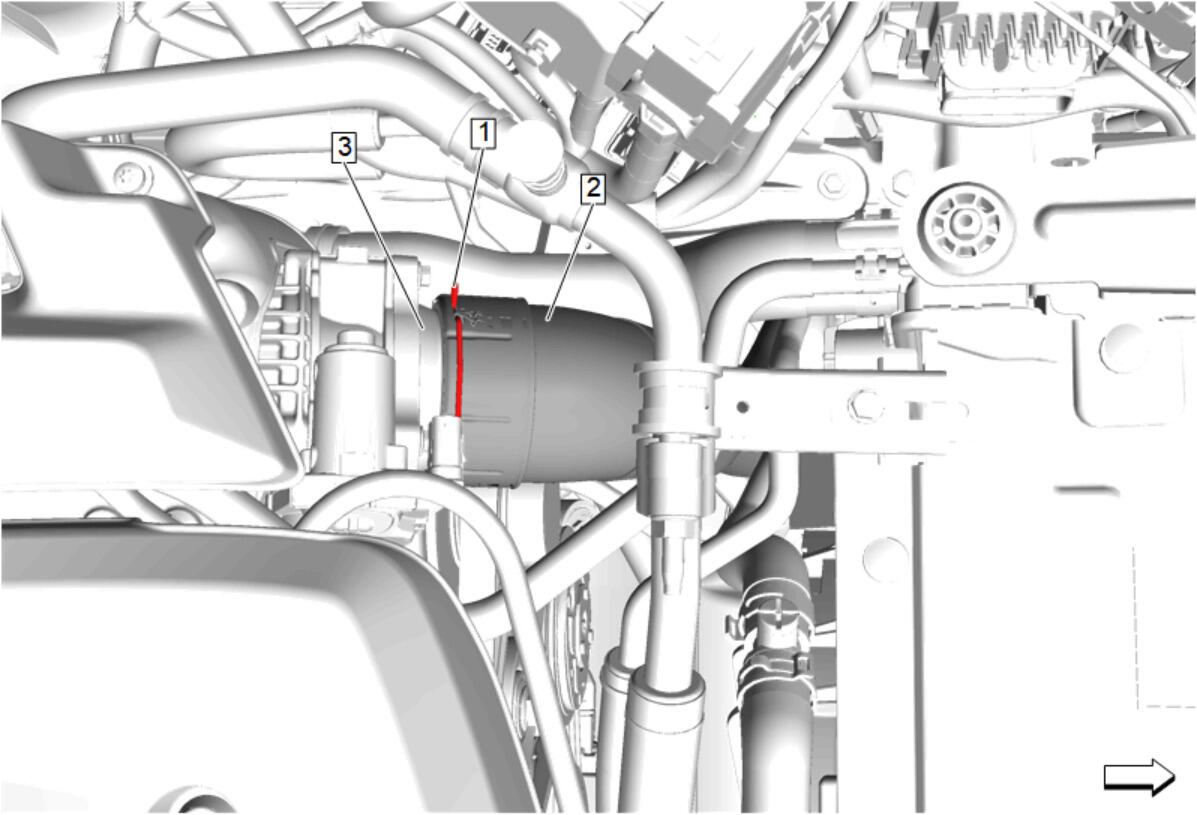

  6. GM5399157Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Outlet Air Tube (2) @ Throttle Body (3) - Install

  7. Retainer Spring (1) - Engage
  8. Perform the intake system learned values reset. Intake System Learned Values Reset
  9. Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
