Installation Procedure

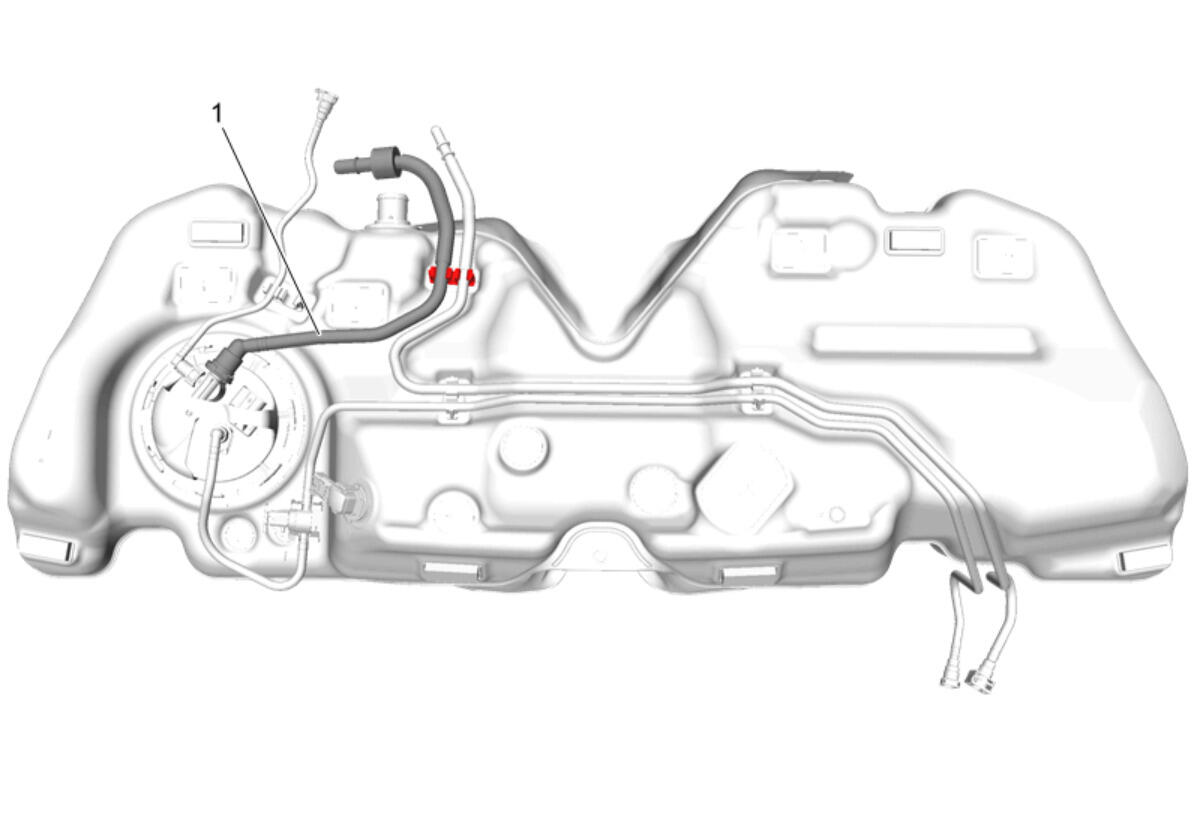

  1. GM5300188Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Hose (1) - Install

  2. Connect quick connect fitting and install the retainer. Plastic Collar Quick Connect Fitting Service

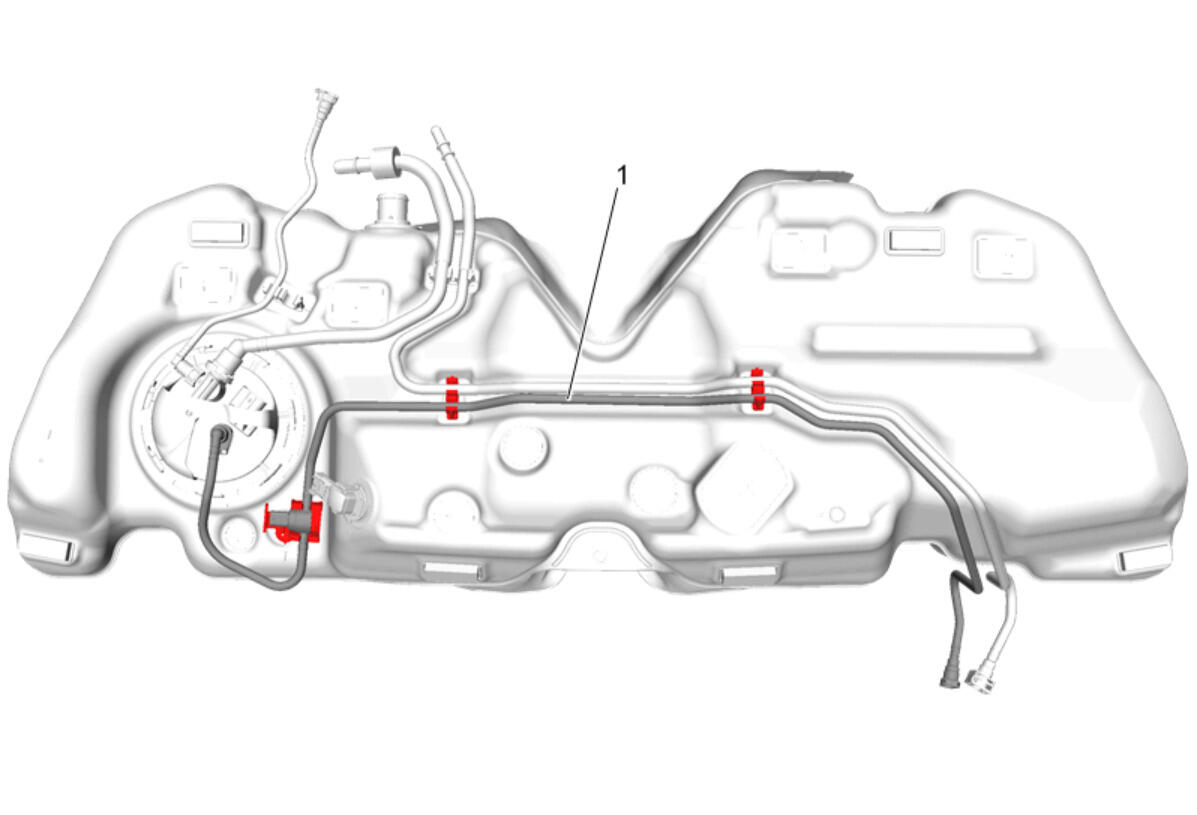

  3. GM5300191Courtesy of GENERAL MOTORS COMPANY

    Install the fuel sender wiring harness and connect to the retainer.

  4. Fuel Pump Fuel Feed Hose (1) - Install
  5. Connect quick connect fitting and engage the 4 retainers. Plastic Collar Quick Connect Fitting Service

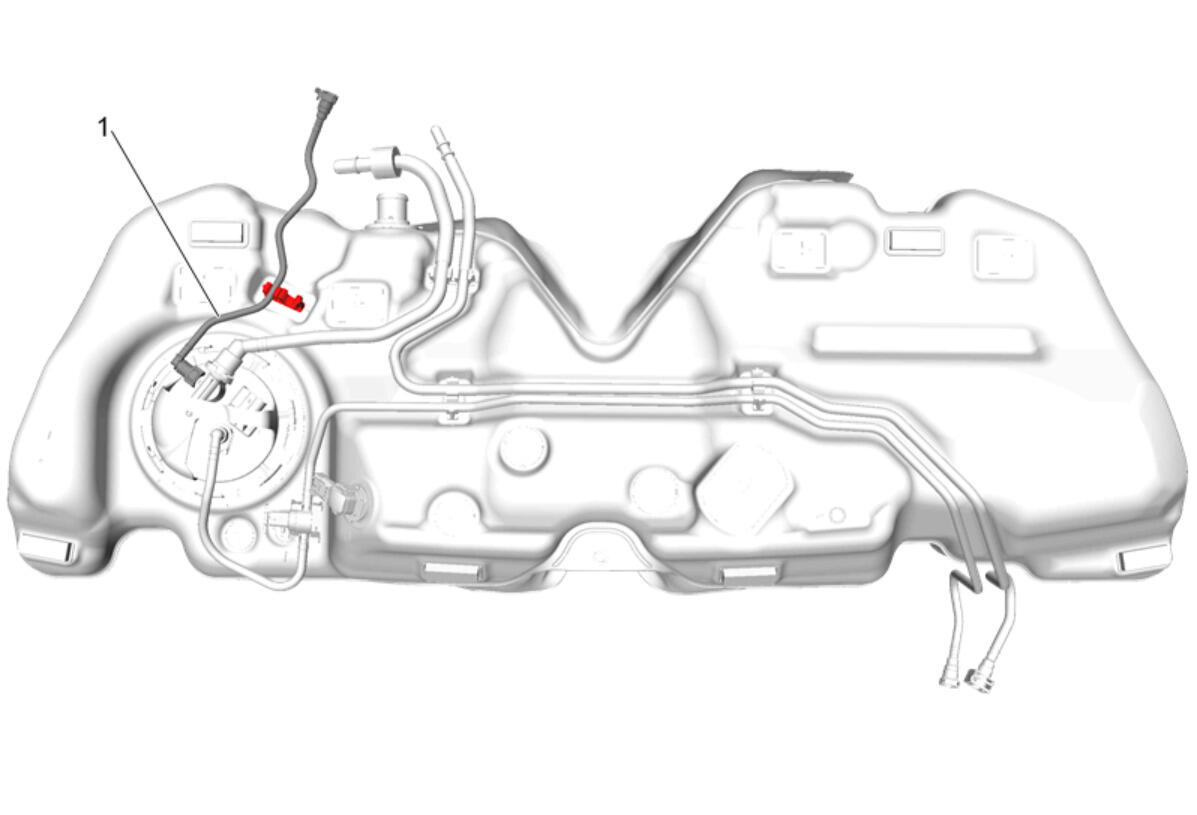

  6. GM5300187Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Evaporative Emission Valve Hose (1) - Install

  7. Connect the quick connect fitting and install the retainer. Plastic Collar Quick Connect Fitting Service

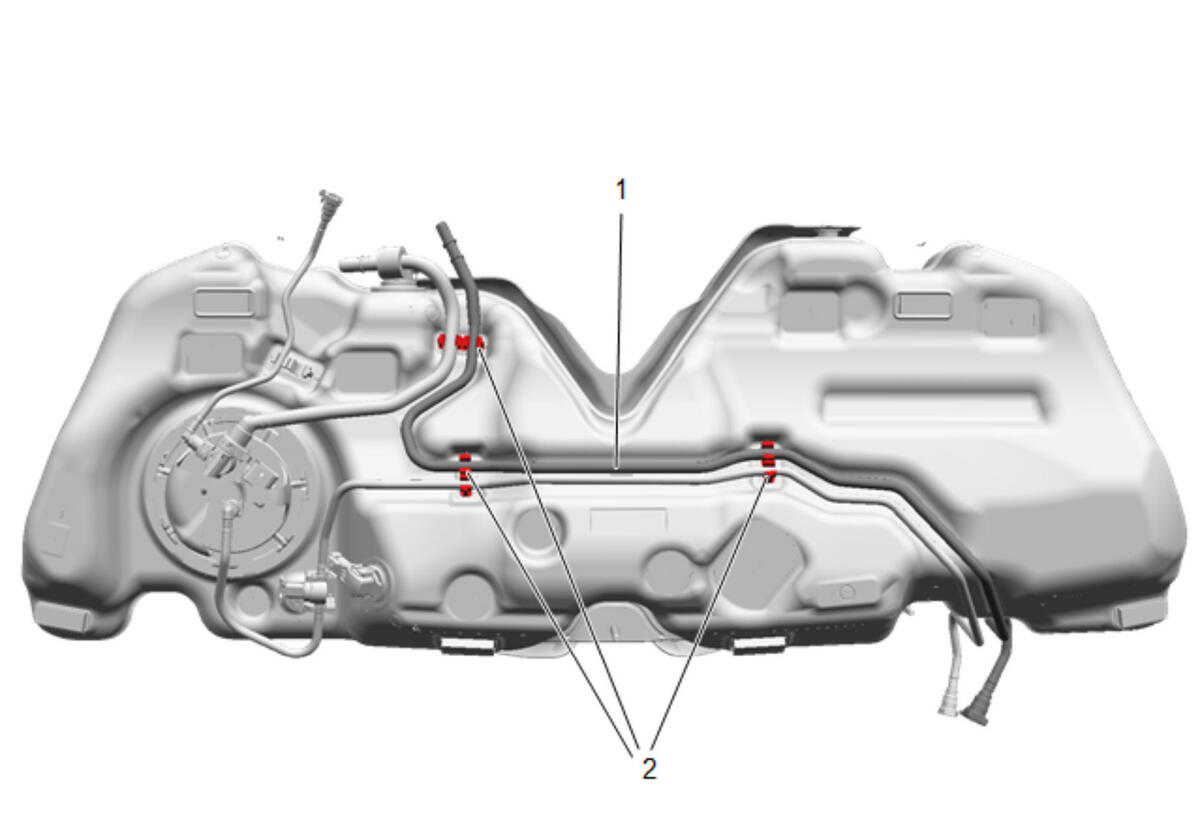

  8. GM5440370Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Vent Valve Hose (1) - Install

  9. Engage the 3 retainers. (2)
  10. GM5300199Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Seal (2) - Install NEW

  11. Fuel Tank Fuel Pump Module (1) - Install
  12. GM5300200Courtesy of GENERAL MOTORS COMPANY

    Transfer Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service

  13. Fuel Tank Vent Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service
  14. Electrical Connector (1) - Connect
  15. GM5300198Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Make sure lock ring is fully seated into the fuel tank encapsulated ring.

    Fuel Sender Ring (1) - Install - CH-45722  Fuel Sender Lock Ring Wrench (2)

  16. GM5300196Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Hose (4) - Connect - Plastic Collar Quick Connect Fitting Service

  17. Fuel Tank Filler Evaporative Emission Valve Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service
  18. Fuel Pump Fuel Feed Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
  19. Electrical Connector (1) - Connect [3x]
  20. GM5810559Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Hose (1) - Install

  21. Fuel Tank Filler Hose Clamp (2) - Tighten - Fastener Specifications
  22. GM5403397Courtesy of GENERAL MOTORS COMPANY

    With assistance, remove fuel tank from bench and place on a suitable adjustable jack.

  23. Guide the fuel tank fill hose into the fuel tank fill pipe when raising fuel tank.
  24. Fuel Tank (1) - Install
  25. GM5404295Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Strap (3) - Install [2x]

    26. CAUTION:

    Refer to Fastener Caution .

  26. Fuel Tank Strap Bolt (2) - Install and tighten [3x] - Fastener Specifications
  27. Fuel Tank Strap Bolt (1) - Install and tighten [2x] - Fastener Specifications
  28. Remove adjustable jack under the fuel tank.
  29. GM5405716Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Hose (6) - Connect - Plastic Collar Quick Connect Fitting Service

  30. Fuel Tank Vent Hose (5) - Connect - Plastic Collar Quick Connect Fitting Service
  31. Fuel Tank Filler Evaporative Emission Valve Hose (4) - Connect - Plastic Collar Quick Connect Fitting Service
  32. Fuel Tank Filler Hose Clamp (2) - Tighten - Fastener Specifications
  33. Fuel Tank Filler Pipe Ground Bolt (1) - Install and tighten - Fastener Specifications
  34. GM5403393Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Fuel Feed Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service

  35. Fuel Tank Vent Valve Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service
  36. GM5403392Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Connector (1) - Connect [2x]

  37. Install the harness retainers as needed.
  38. GM5312860Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Shield (2) - Install

  39. Fuel Tank Shield Retainer (1) - Install [5x]
  40. GM5334765Courtesy of GENERAL MOTORS COMPANY

    Apply a thin layer of grease to the transmission output shaft splines (1). Adhesives, Fluids, Lubricants, and Sealers

  41. Loosely install a NEW propeller shaft hub clamp (3) to the propeller shaft joint boot.
  42. Support and secure the propeller shaft (2) to a suitable hydraulic jack stand.
  43. Propeller Shaft (2) - Install
  44. GM5317838Courtesy of GENERAL MOTORS COMPANY

    Prepare the 2 propeller shaft bearing support bolts (1) for installation as follows:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  45. Propeller Shaft Bearing Support Bolt (1) - Install and tighten [2x] - Fastener Specifications
  46. Remove the hydraulic jack stand supporting the propeller shaft.
  47. GM5317835Courtesy of GENERAL MOTORS COMPANY

    Prepare the 3 rear propeller shaft bolts (1) and nuts (3) for installation as follows:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  48. Align the relationship marks (2) made on the propeller shaft and the rear differential flange.
  49. Rear Propeller Shaft Bolt (1) - Install [3x]
  50. Rear Propeller Shaft Nut (3) - Loosely install [3x]
  51. Rear Propeller Shaft Bolt (1) - Tighten [3x] - Fastener Specifications
  52. GM5427472Courtesy of GENERAL MOTORS COMPANY

    Using a suitable jack stand, support the rear of the transmission.

  53. Transmission Mount Bracket Bolt (1) - Remove [4x]
  54. GM5427478Courtesy of GENERAL MOTORS COMPANY

    Transmission Mount Bolt (1) - Remove [2x]

  55. Transmission Mount (2) - Remove
  56. GM5317844Courtesy of GENERAL MOTORS COMPANY
  57. Ensure that the drive shaft boot is completely seated in the output shaft groove prior to crimping the propeller shaft hub clamp (2).
  58. Using the DT-35910  Drive Axle Seal Clamp Pliers (1), crimp the propeller shaft hub clamp (2) until the final crimped outer diameter (a) is 39 - 41 mm (1.54 - 1.61 in).
  59. GM5427478Courtesy of GENERAL MOTORS COMPANY

    Transmission Mount (2) - Install

    60. NOTE:

    For proper bolt alignment, loosely install all mount bolts prior to tightening to specifications.

  60. Transmission Mount Bolt (1) - Loosely install [2x]
  61. GM5427472Courtesy of GENERAL MOTORS COMPANY

    Transmission Mount Bracket Bolt (1) - Loosely install [4x]

  62. GM5427478Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Transmission Mount Bolt (1) - Tighten [2x] - Fastener Specifications

  63. GM5427472Courtesy of GENERAL MOTORS COMPANY

    Transmission Mount Bracket Bolt (1) - Tighten [4x] - Fastener Specifications

  64. Remove the jack stand.
  65. GM5334717Courtesy of GENERAL MOTORS COMPANY

    Floor Panel Number 2 Cross Bar Reinforcement (2) - Install

  66. Floor Panel Number 2 Cross Bar Reinforcement Bolt (1) - Install and tighten [4x] - Fastener Specifications
  67. GM5309833Courtesy of GENERAL MOTORS COMPANY

    Exhaust Intermediate Underbody Heat Shield (2) - Install

  68. Exhaust Heat Shield Bolt (1) - Install and tighten [6x] - Fastener Specifications
  69. GM5309214Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Gasket (2) - Install NEW

  70. With the aid of an assistant, install the exhaust system to the vehicle. (1)
  71. {If equipped} Electrical Connector @ Exhaust Control Valve Actuator - Connect
  72. GM5309211Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator-Right Side (3) - Install

  73. Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Right Side (2) - Install
  74. GM5309202Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator-Left Side (3) - Install

  75. Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Left Side (2) - Install
  76. GM5309188Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Nut (1) - Install and tighten [2x] - Fastener Specifications

  77. GM5400756Courtesy of GENERAL MOTORS COMPANY

    Floor Panel Reinforcement (2) - Install

  78. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  79. Front End Sheet Metal Cross Brace Bolt (1) - Install and tighten [6x] - Fastener Specifications
  80. GM5400642Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector - Right Side (5) - Install

  81. Underbody Rear Air Deflector Plastic Nut (3) - Install and tighten [3x] - Fastener Specifications
  82. Underbody Rear Air Deflector Bolt (2) - Install and tighten [3x] - Fastener Specifications
  83. Underbody Rear Air Deflector Nut (4) - Install and tighten [2x] - Fastener Specifications
  84. Rear Wheelhouse Liner Screw (1) - Install and tighten - Fastener Specifications
  85. GM5424018Courtesy of GENERAL MOTORS COMPANY

    Rear Tire Front Air Deflector - Right Side (2) - Install

  86. Rear Tire Front Air Deflector Bolt (1) - Install and tighten [2x] - Fastener Specifications
  87. GM5400553Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector - Left Side (5) - Install

  88. Underbody Rear Air Deflector Plastic Nut (2) - Install and tighten [3x] - Fastener Specifications
  89. Underbody Rear Air Deflector Bolt (3) - Install and tighten [3x] - Fastener Specifications
  90. Underbody Rear Air Deflector Nut (4) - Install and tighten [2x] - Fastener Specifications
  91. Rear Wheelhouse Liner Screw (1) - Install and tighten - Fastener Specifications
  92. GM5424015Courtesy of GENERAL MOTORS COMPANY

    Rear Tire Front Air Deflector - Left Side (2) - Install

  93. Rear Tire Front Air Deflector Bolt (1) - Install and tighten [2x] - Fastener Specifications
  94. Remove the support and lower the vehicle.
  95. Inspect the exhaust system for leaks.
  96. Refill the fuel tank.
  97. Inspect for fuel leaks.
