Installation Procedure

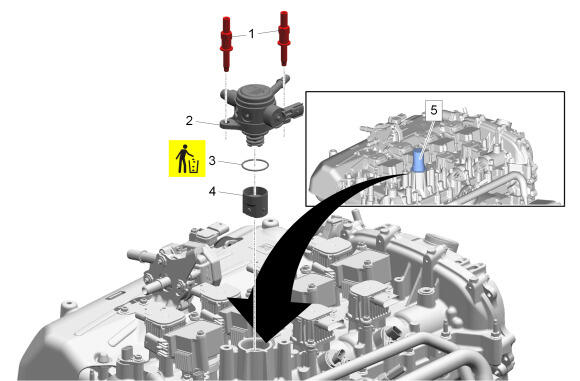

  1. GM5022674Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • The camshaft MUST be at the base circle position before the fuel pump is installed.
    • At the base circle position, the EN-52443  High Pressure Fuel Pump Alignment Tool will sit flush with the cylinder head.

    Install the EN-52443  High Pressure Fuel Pump Alignment Tool and turn the crankshaft until the camshaft lobe is at the base circle position.

  2. Remove the EN-52443  High Pressure Fuel Pump Alignment Tool.
  3. Lubricate the valve lifter follower (4) with clean engine oil.
  4. Valve Lifter Follower (4) - Install
  5. Fuel Pump Seal (3) - Install NEW
  6. Fuel Pump (2) - Install
  7. CAUTION:

    Alternately hand-tighten the fuel pump bolts one turn at a time until the pump is fully seated. Trying to draw down the pump without even side-to-side tightening may result in pump plunger damage.

  8. Fuel Pump Stud (1) - Install and tighten [2x] - Fastener Specifications
  9. Electrical Connector @ Fuel Pump - Connect

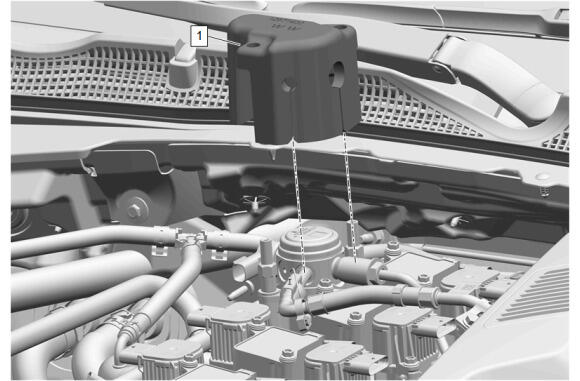

  10. GM5478583Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise canceling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

    Fuel Pump Insulator (1) - Install

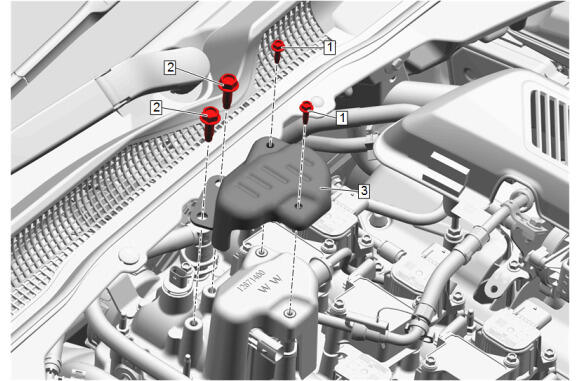

  11. GM5478561Courtesy of GENERAL MOTORS COMPANY

    Fuel Injection Pump Bracket (3) - Install

  12. Fuel Pump Shield Bolt (2) - Install and tighten [2x] - Fastener Specifications
  13. Fuel Pump Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications
  14. GM5404599Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Intermediate Pipe (2) - Install NEW

  15. Fuel Injection Fuel Feed Pipe Bracket Bolt (1) - Install and tighten - Fastener Specifications
  16. GM5404598Courtesy of GENERAL MOTORS COMPANY

    Nut @ Fuel Feed Intermediate Pipe (1) - Install and hand tighten [2x]

  17. Nut @ Fuel Feed Intermediate Pipe (1) - Tighten [2x] - Fastener Specifications

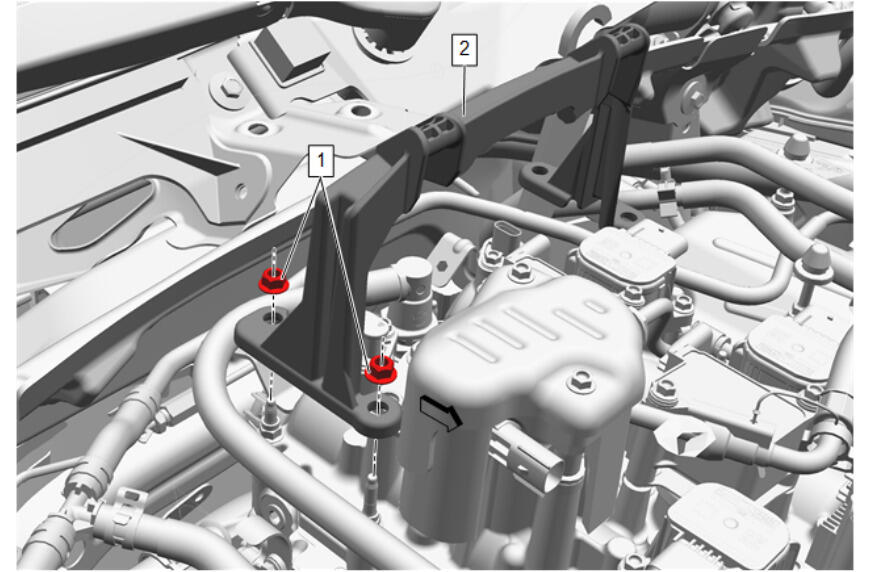

  18. GM5457786Courtesy of GENERAL MOTORS COMPANY

    Upper Intake Manifold Bracket (2) - Install

  19. Upper Intake Manifold Cover Nut (1) - Install and tighten [2x] - Fastener Specifications

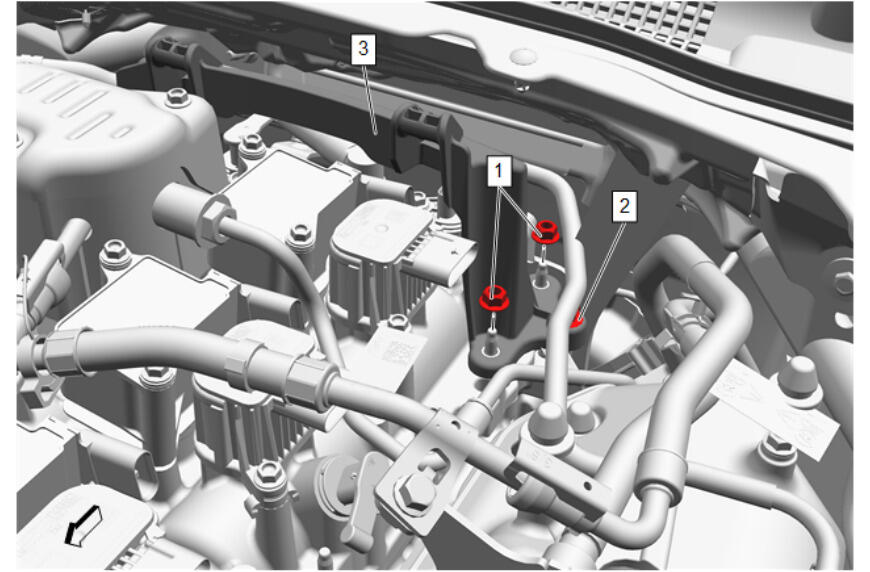

  20. GM5457857Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Inlet Hose Clip (2) @ Upper Intake Manifold Bracket (3) - Install

  21. Upper Intake Manifold Cover Nut (1) - Install and tighten [2x] - Fastener Specifications

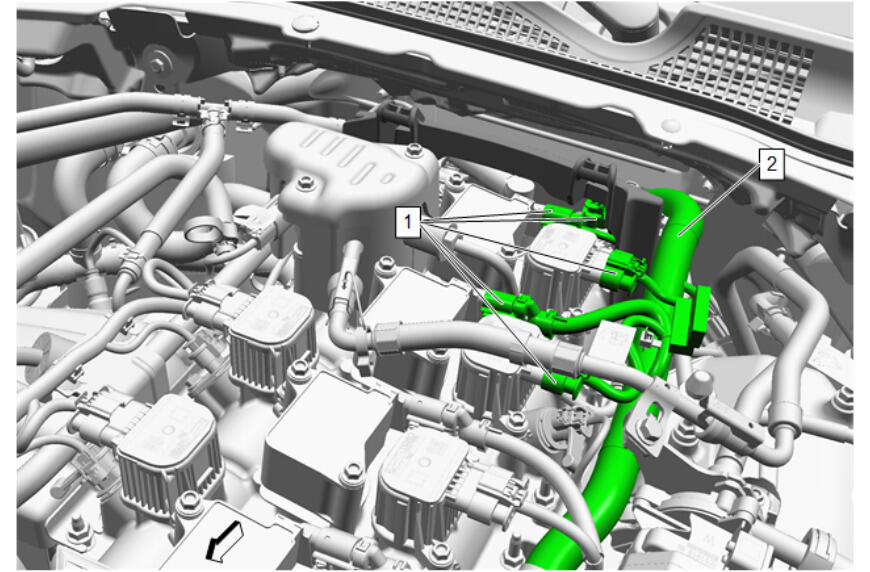

  22. GM5457059Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect as necessary

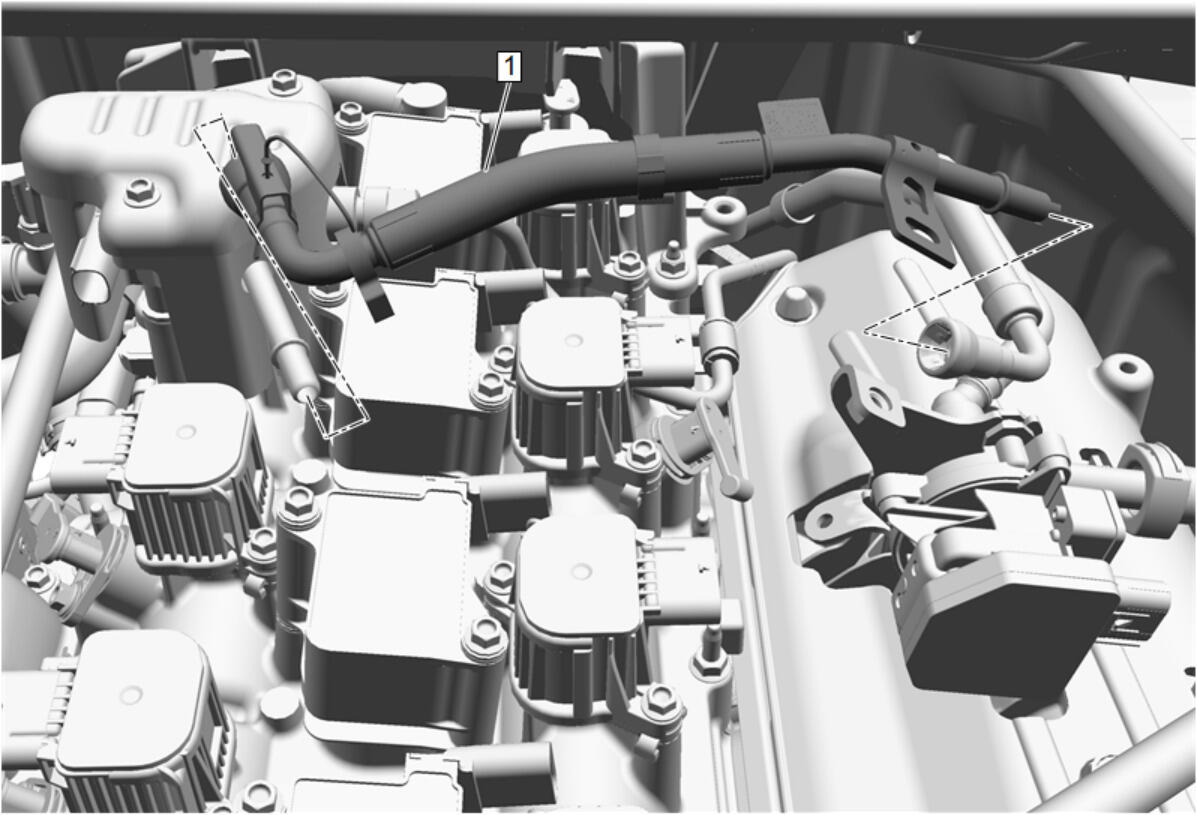

  23. GM5129475Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Pipe (1) @ Fuel Pump - Connect - Metal Collar Quick Connect Fitting Service

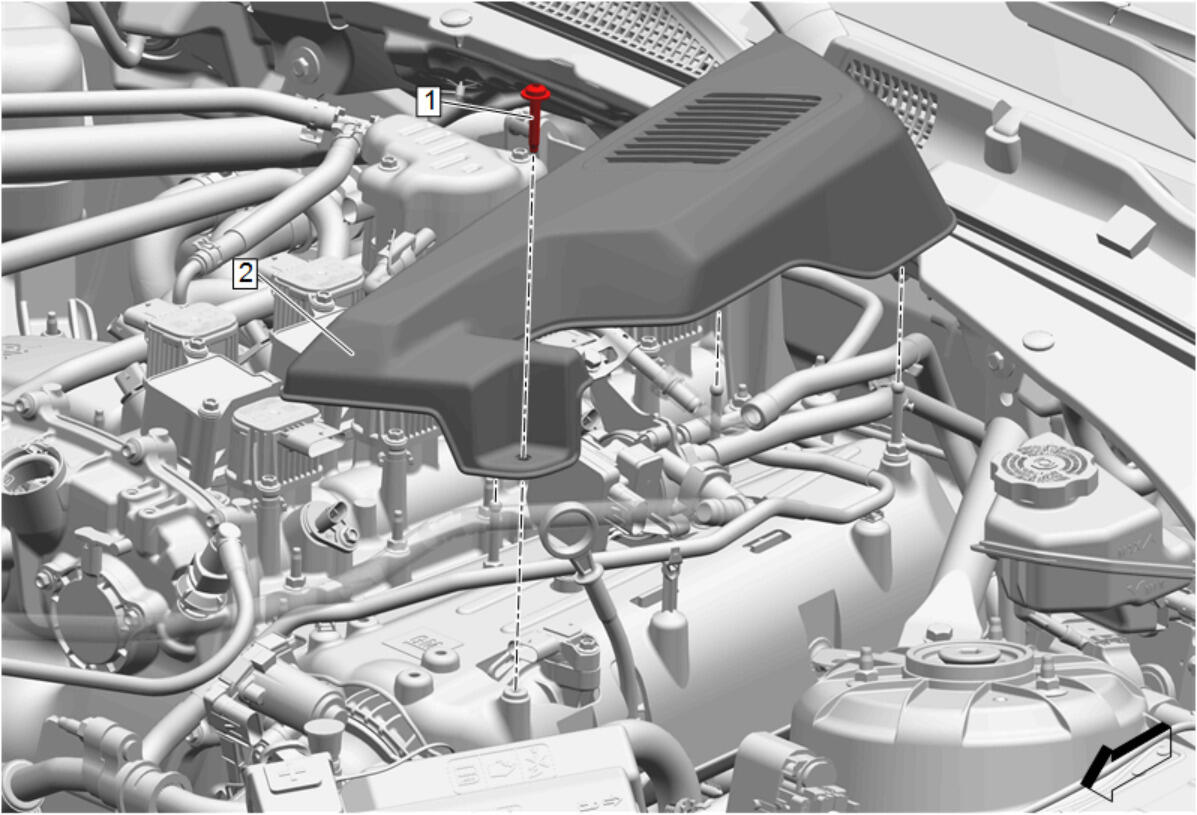

  24. GM5404330Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover Insulator (2) - Install

  25. Intake Manifold Cover Bolt (1) - Install and tighten - Fastener Specifications
  26. GM5432174Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install

  27. GM5432171Courtesy of GENERAL MOTORS COMPANY

    Push down on the front of the intake manifold cover (2).

  28. Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
  29. Install the oil fill cap.
  30. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  31. Inspect for leaks using the following procedure:
    1. Turn ON the ignition with the engine OFF for 2 seconds.
    2. Turn OFF the ignition for 10 seconds.
    3. Turn ON the ignition with the engine OFF.
    4. Inspect for fuel leaks.
