Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

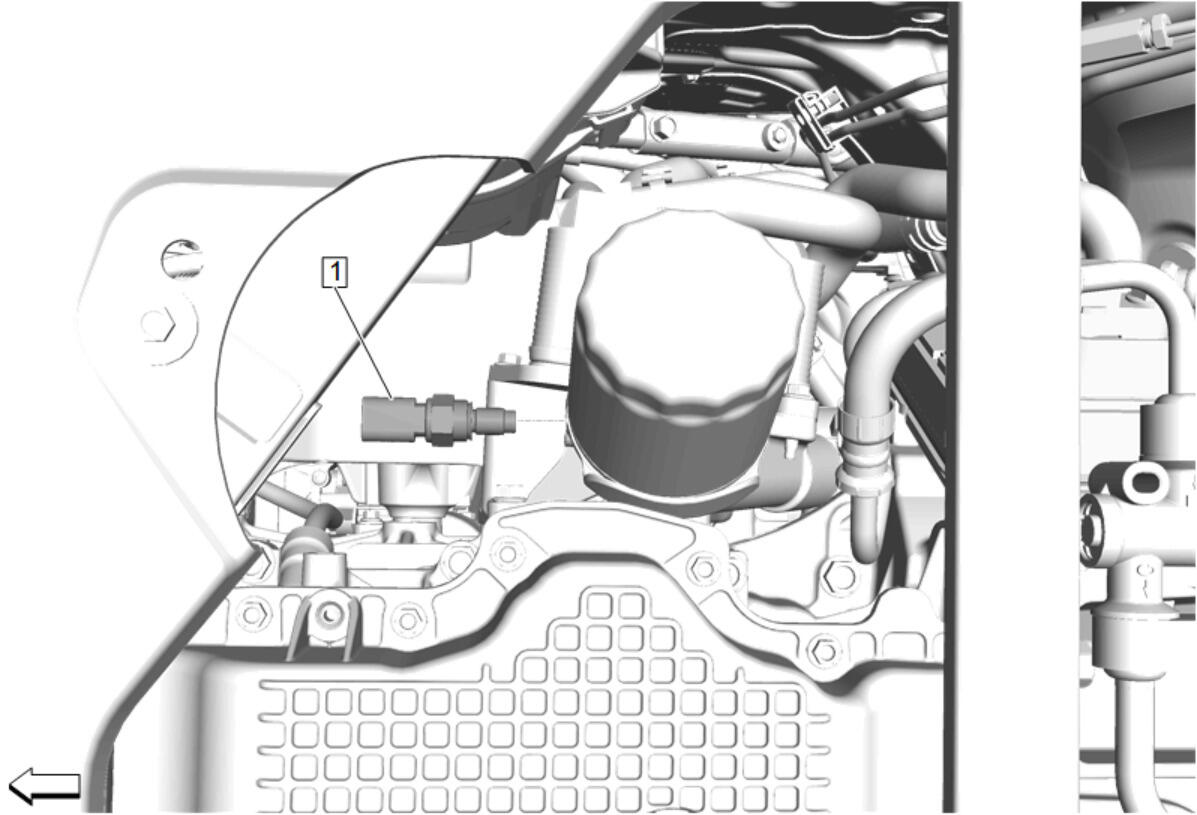

  2. GM5398921Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Retainer @ Oil Pan - Disconnect

  3. Disconnect the electrical connector.
  4. Engine Oil Temperature Sensor (1) - Remove
