Installation Procedure

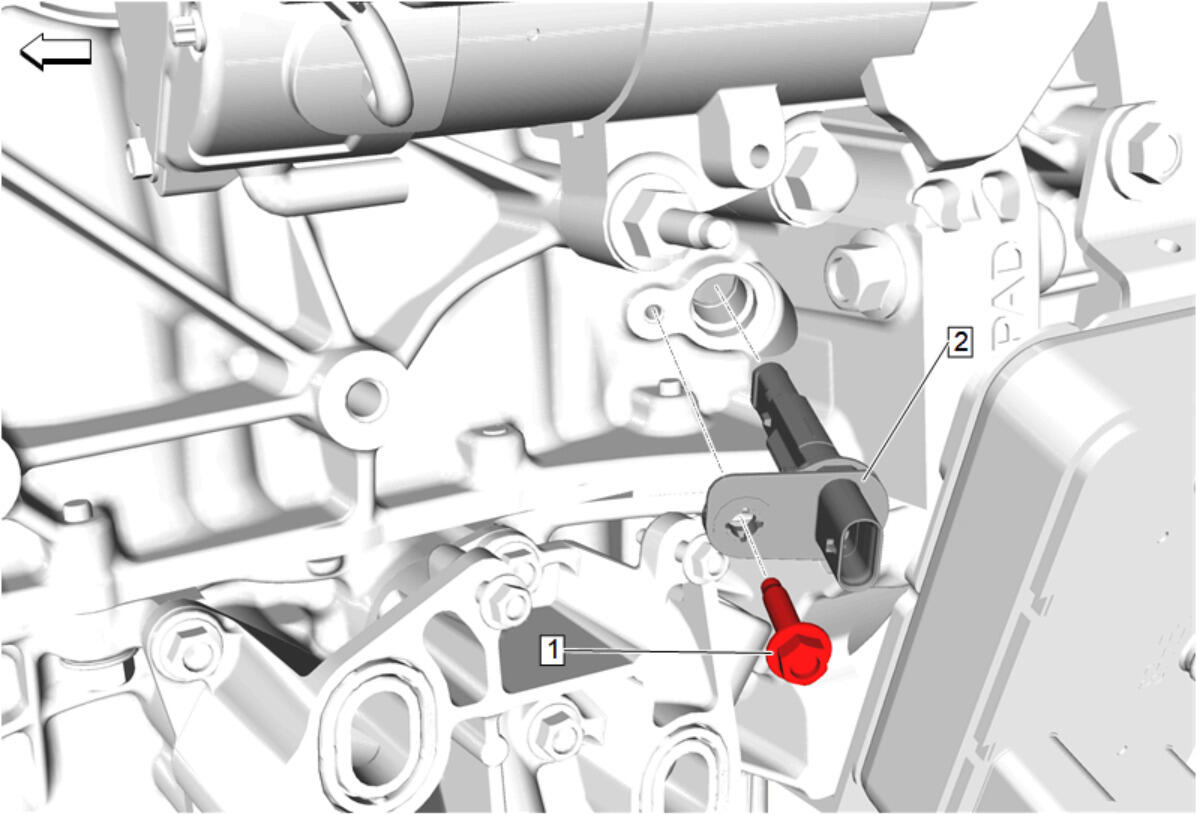

GM5406462Courtesy of GENERAL MOTORS COMPANY
  1. Crankshaft Position Sensor (2) - Install
    2. CAUTION:

    Refer to Fastener Caution .

  2. Crankshaft Position Sensor Bolt (1) - Install and tighten - Fastener Specifications
  3. Connect the electrical connector.
  4. Lower the vehicle.
  5. Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
