Installation Procedure

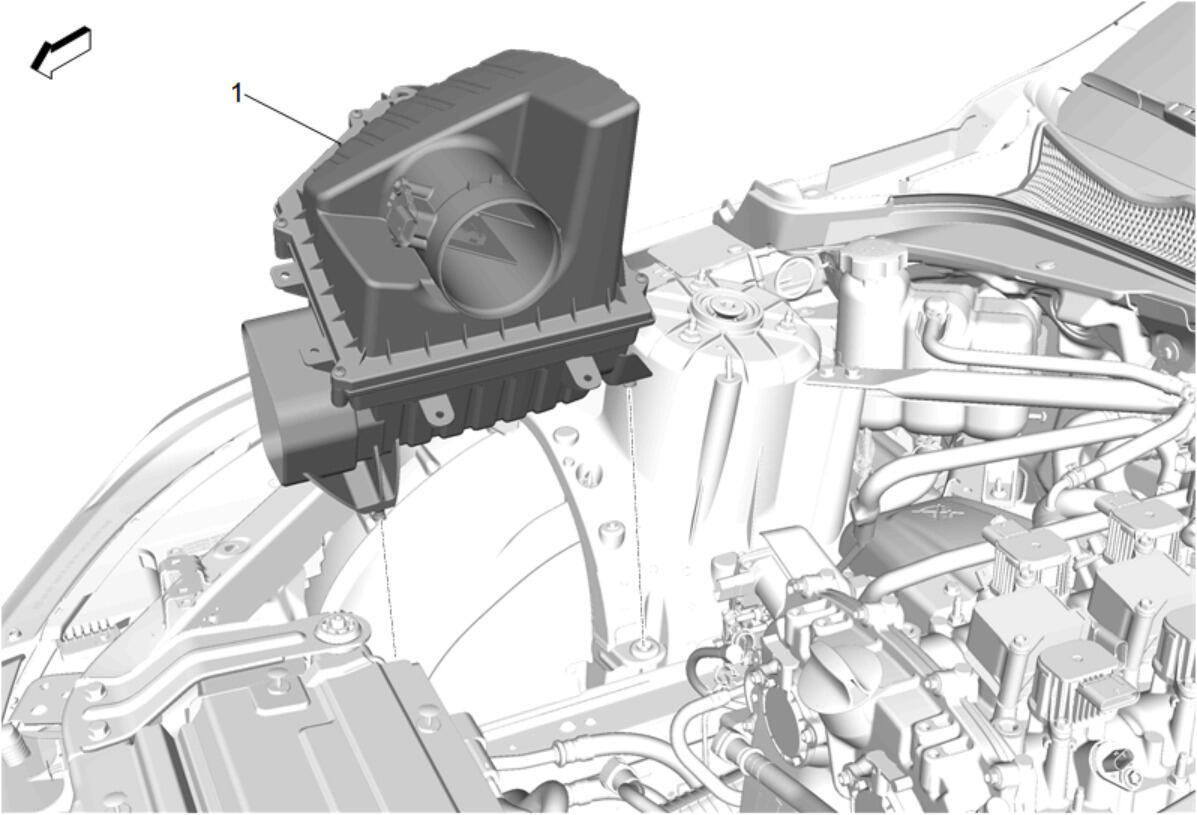

  1. GM5399073Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Assembly (1) - Install

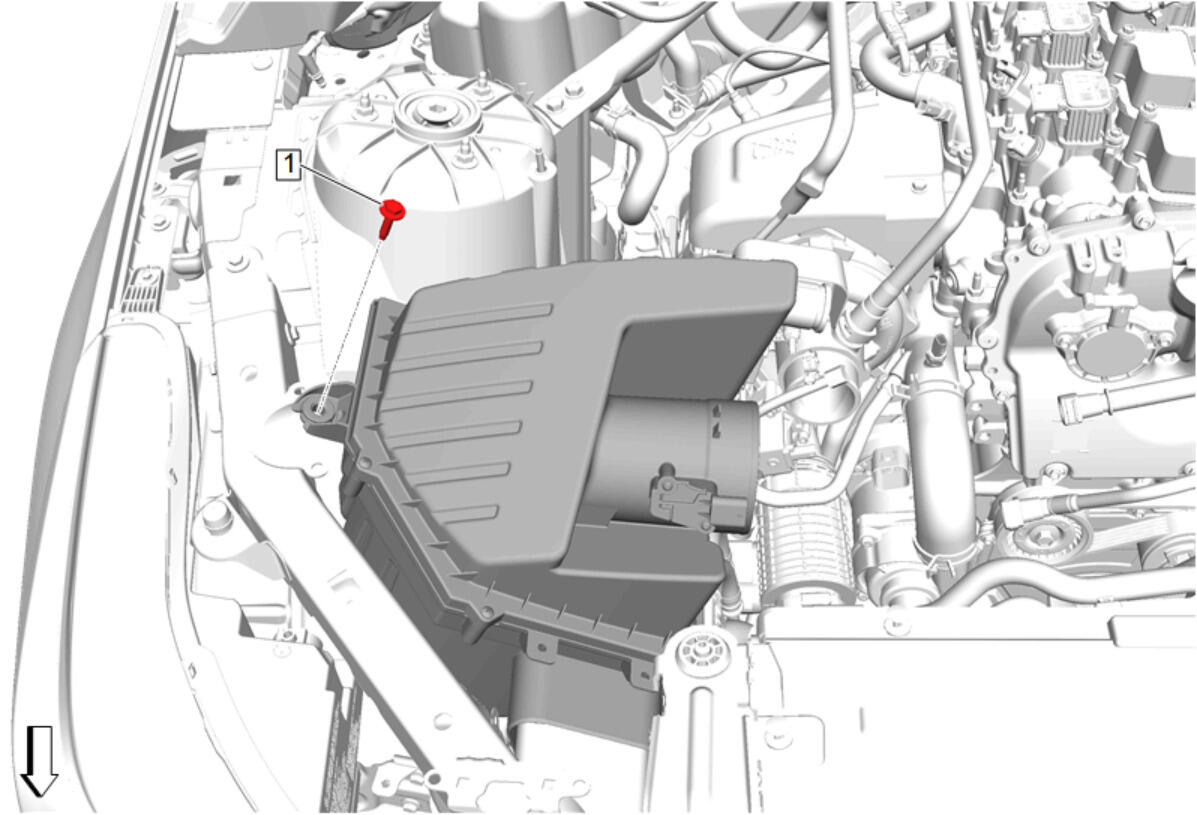

  2. GM5399053Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Air Cleaner Bolt (1) - Install and tighten - Fastener Specifications

  3. Connect the electrical connector and install all wiring harnesses to the air cleaner assembly.

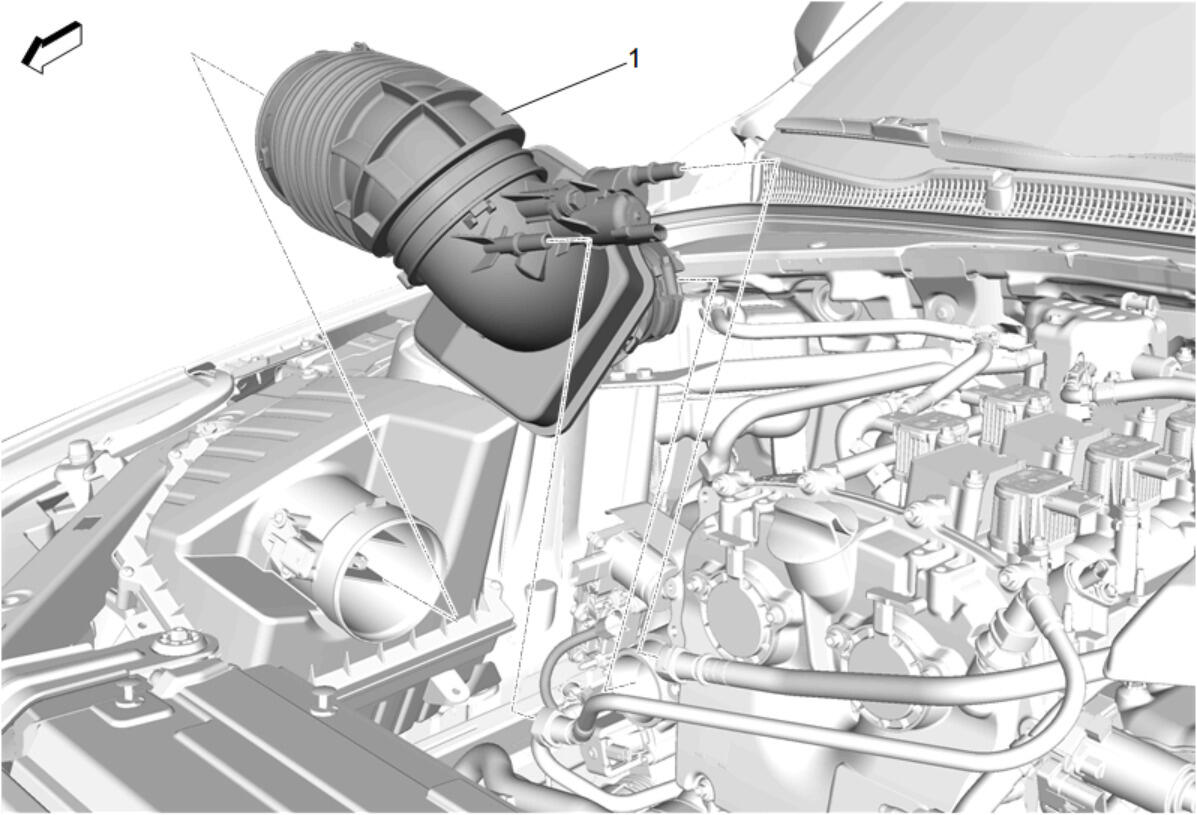

  4. GM5398967Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct (1) - Install

  5. Connect the electrical connector.

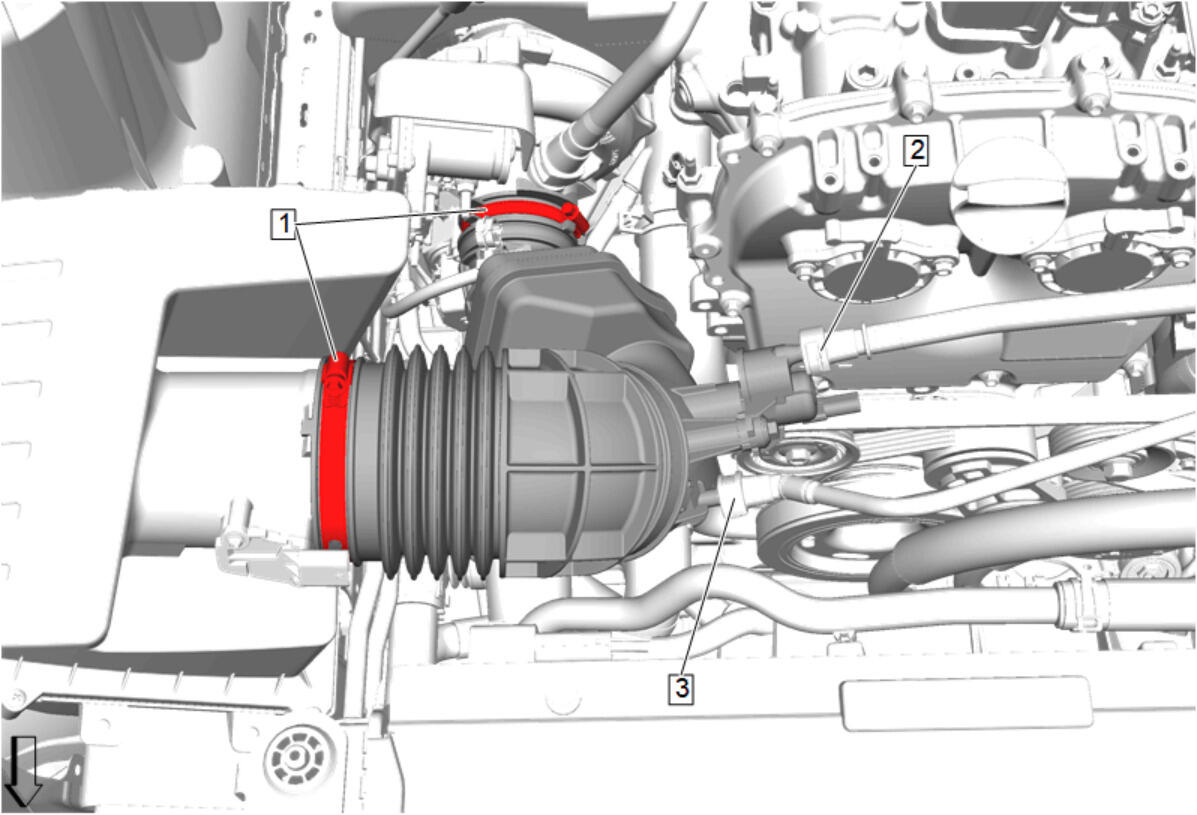

  6. GM5398955Courtesy of GENERAL MOTORS COMPANY

    Positive Crankcase Ventilation Tube (3) - Connect - Plastic Collar Quick Connect Fitting Service

  7. Evaporative Emission Canister Purge Tube (2) - Connect - Plastic Collar Quick Connect Fitting Service
  8. Air Cleaner Outlet Duct Clamp (1) - Tighten [2x] -
  9. GM5432174Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install

  10. GM5432171Courtesy of GENERAL MOTORS COMPANY

    Push down on the front of the intake manifold cover (2).

  11. Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
  12. Install the oil fill cap.
