Installation Procedure

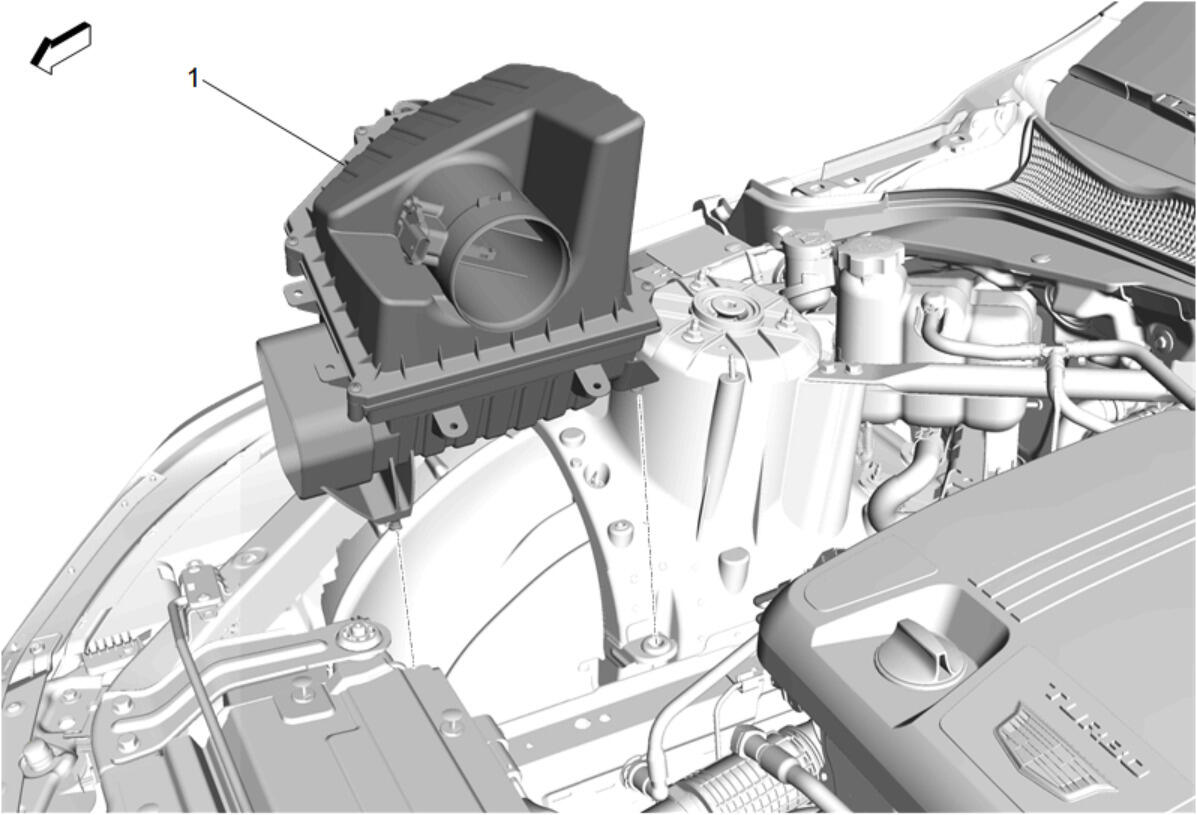

  1. GM5405482Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Assembly (1) - Install

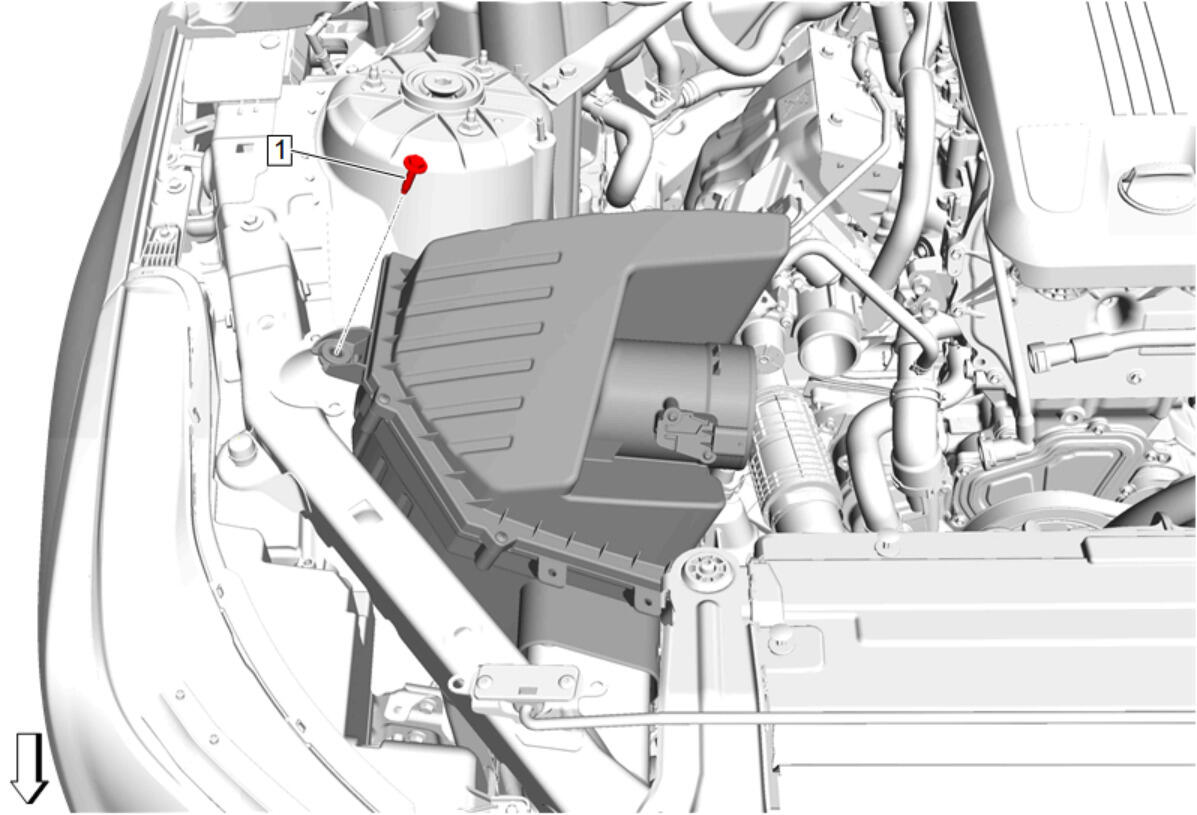

  2. GM5405481Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Air Cleaner Bolt (1) - Install and tighten - Fastener Specifications

  3. Connect the electrical connector and install all wiring harnesses to the air cleaner assembly.

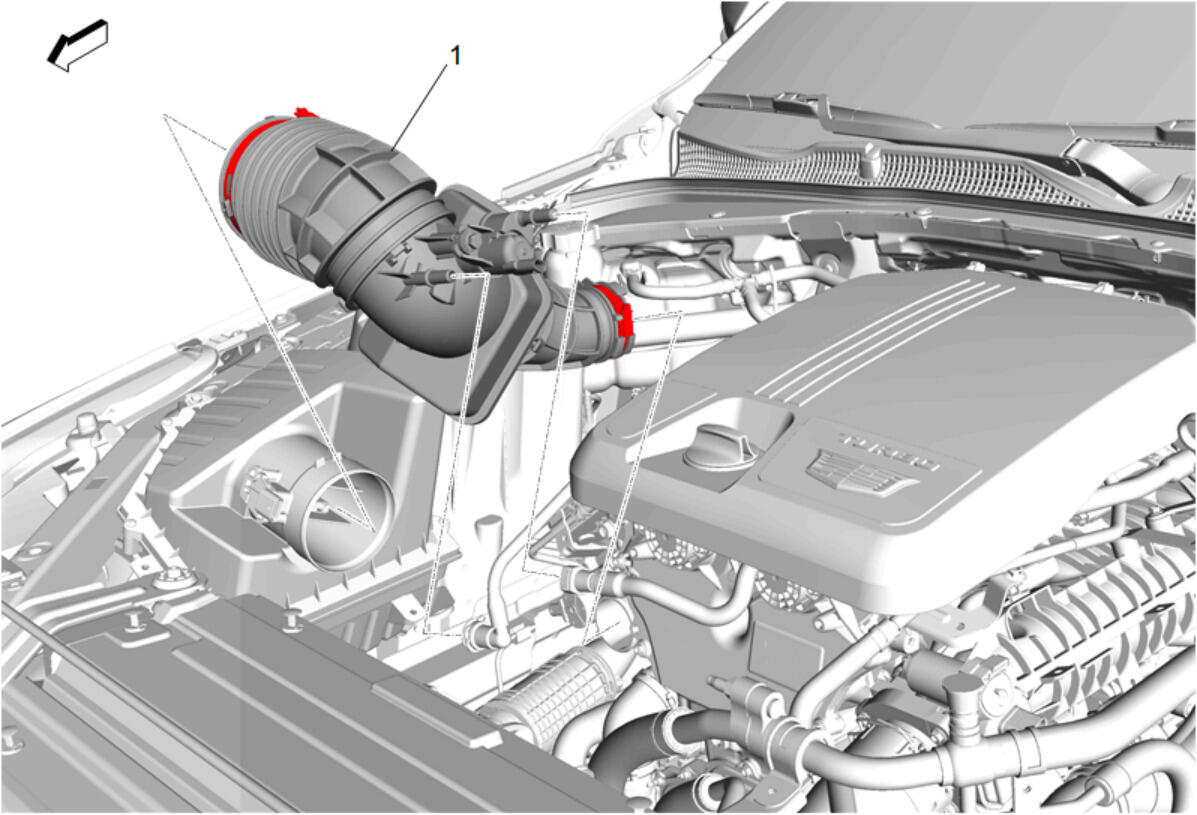

  4. GM5405476Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct (1) - Install

  5. Connect the electrical connector.

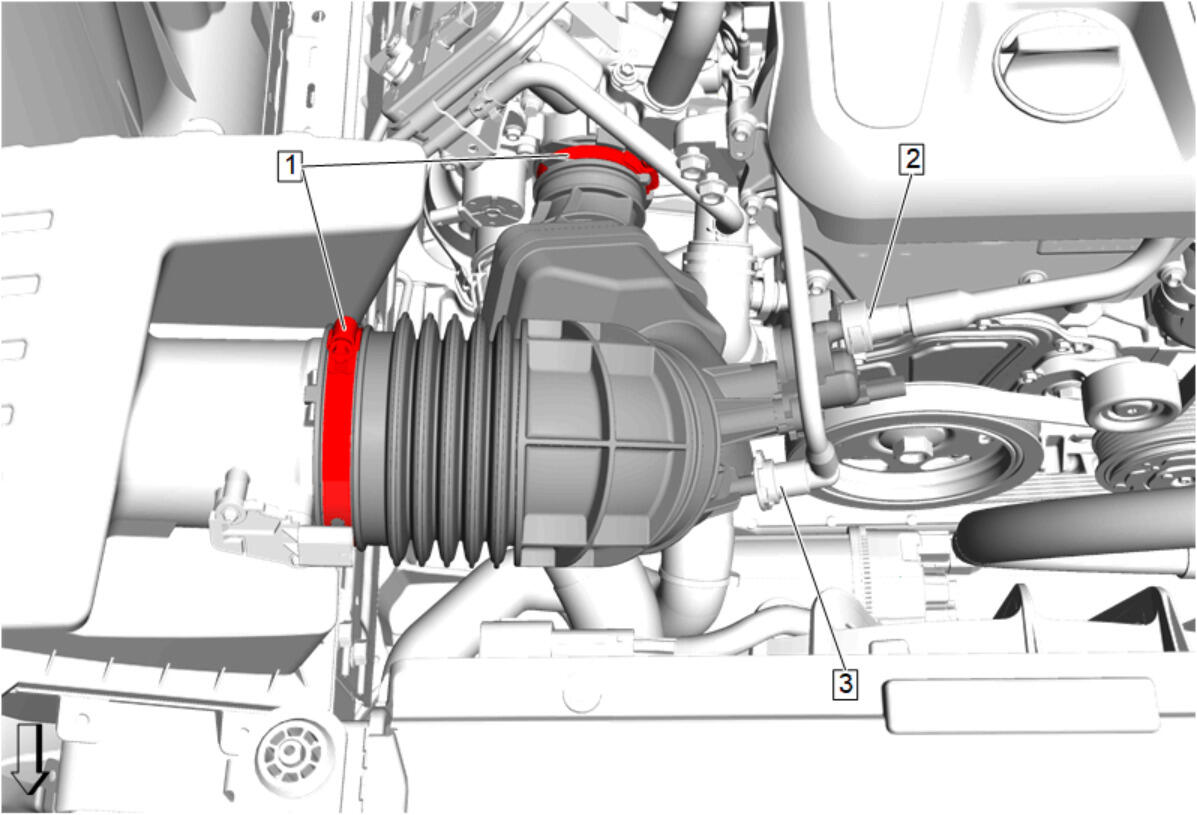

  6. GM5405472Courtesy of GENERAL MOTORS COMPANY

    Positive Crankcase Ventilation Tube (3) - Connect - Plastic Collar Quick Connect Fitting Service

  7. Evaporative Emission Canister Purge Tube (2) - Connect - Plastic Collar Quick Connect Fitting Service
  8. Air Cleaner Outlet Duct Clamp (1) - Tighten [2x] - Fastener Specifications
