Installation Procedure

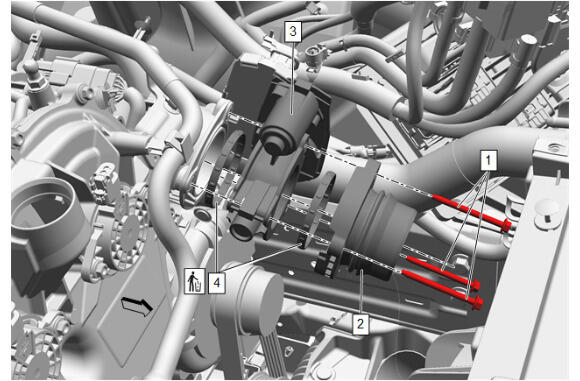

GM5470183Courtesy of GENERAL MOTORS COMPANY
  1. Throttle Body Seal (4) - Install NEW [2x]
  2. Throttle Body (3) - Install
  3. Throttle Body Adapter (2) - Install
    4. CAUTION:

    Refer to Fastener Caution

  4. Throttle Body Bolt (1) - Install and tighten [3x] - Fastener Specifications
  5. Connect the electrical connector.

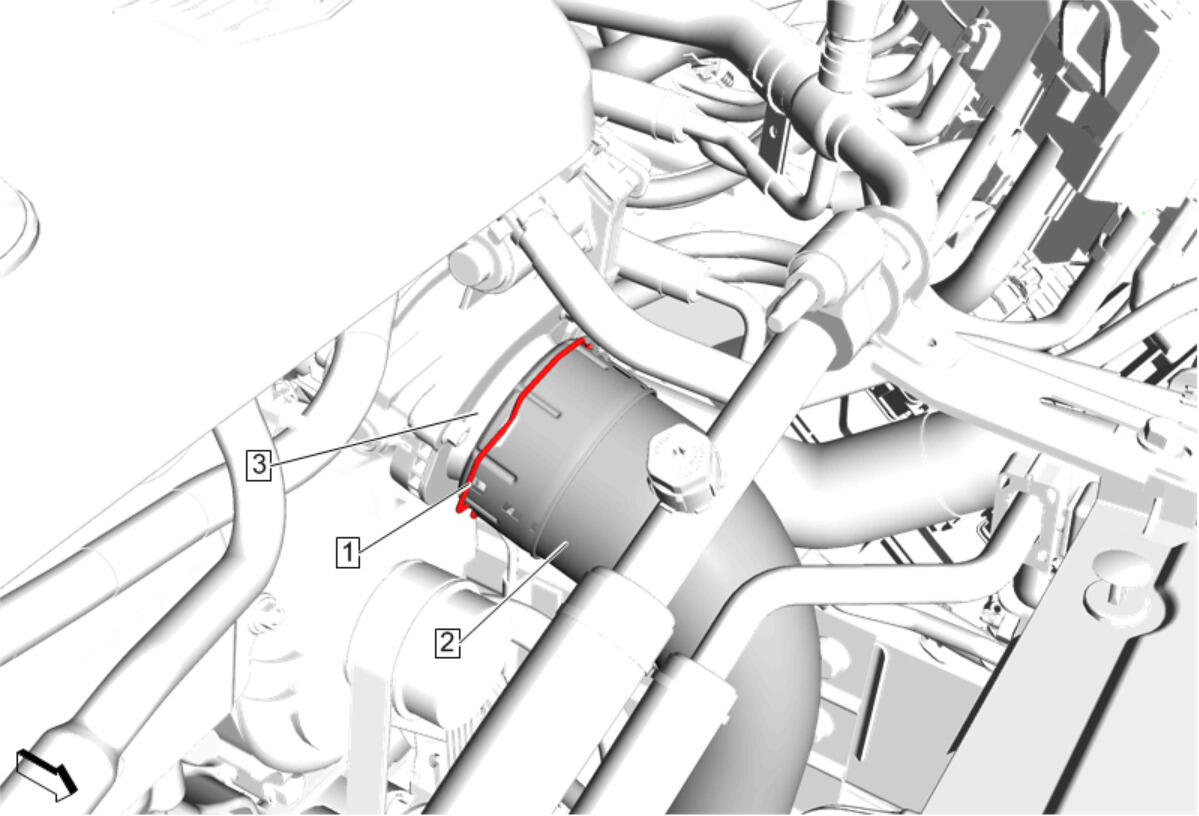

  6. GM5314509Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Outlet Air Tube (2) @ Throttle Body (3) - Install

  7. Retainer Spring (1) - Engage
  8. Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
