Removal Procedure

Remove the oil fill cap.
Courtesy of GENERAL MOTORS COMPANY

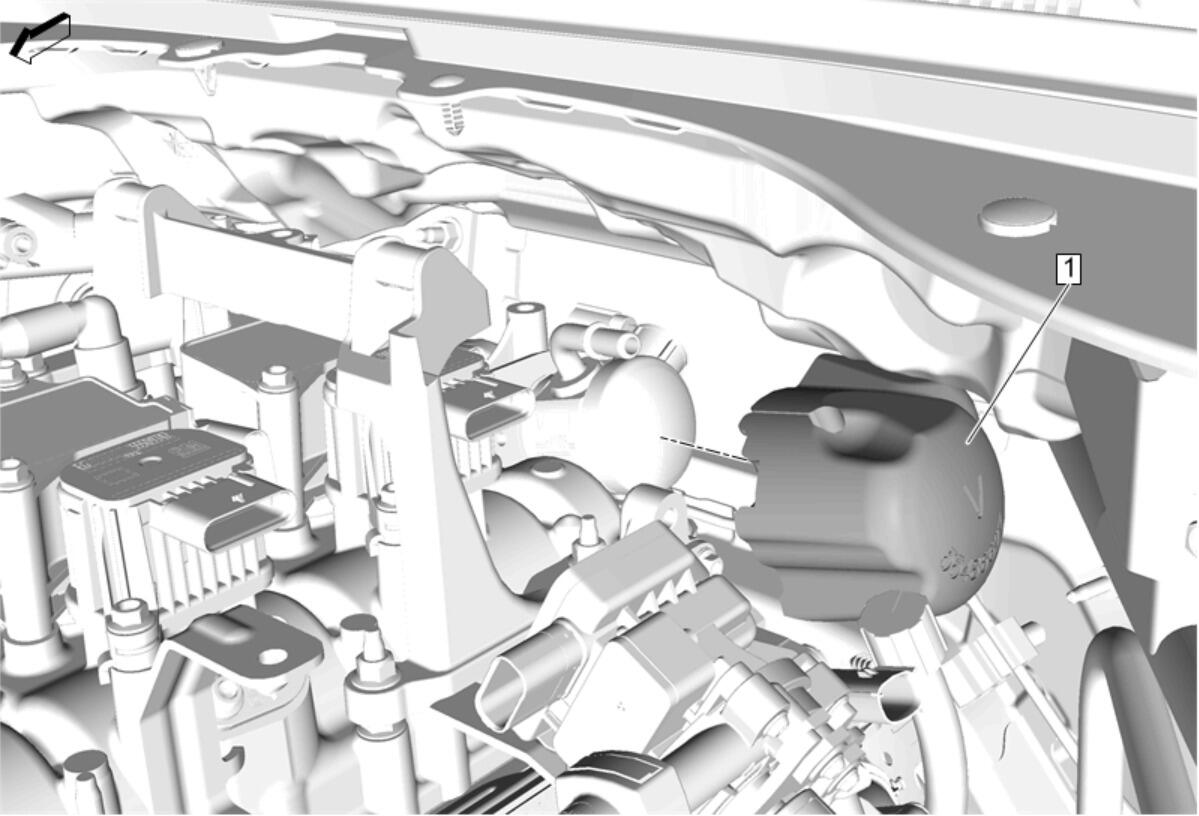

Lift up on the front of the intake manifold cover (1).
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Radiator Surge Tank Inlet Hose Clip (1) @ Positive Crankcase Ventilation Hose - Remove
Radiator Surge Tank Inlet Hose Clip (3) @ Fuel Pump Cover - Remove
Radiator Surge Tank Inlet Hose Clip (2) @ Engine Wiring Harness - Remove
Courtesy of GENERAL MOTORS COMPANY

Radiator Surge Tank Inlet Hose Clip (1) @ Radiator Surge Tank Inlet Pipe Bracket - Remove
Radiator Surge Tank Inlet Hose Clip (2) @ Radiator Surge Tank Inlet Pipe Bracket - Remove
Radiator Surge Tank Outlet Pipe (3) - Reposition
Courtesy of GENERAL MOTORS COMPANY

WARNING:
Refer to Diesel/Gasoline Vapors Warning .

WARNING:
Refer to Safety Glasses Warning .

Relieve the fuel system pressure. Fuel Pressure Relief
Fuel Feed Pipe (1) @ Fuel Pump - Disconnect - Metal Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

Reposition wiring harness as necessary.
Fuel Pump Shield Bolt (1) - Remove [3x]
Fuel Pump Cover (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

WARNING:
The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise canceling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

Fuel Pump Insulator (1) - Remove
