Removal Procedure

  1. Remove the oil fill cap.
  2. GM5335087Courtesy of GENERAL MOTORS COMPANY

    Lift up on the front of the intake manifold cover (1).

  3. GM5335089Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove

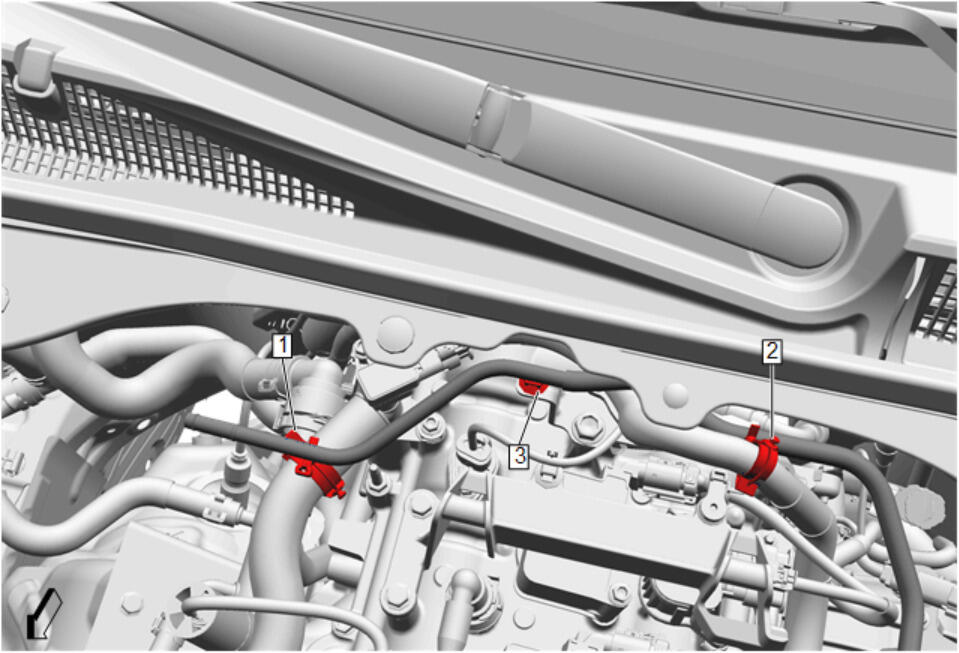

  4. GM5312607Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Inlet Hose Clip (1) @ Positive Crankcase Ventilation Hose - Remove

  5. Radiator Surge Tank Inlet Hose Clip (3) @ Fuel Pump Cover - Remove
  6. Radiator Surge Tank Inlet Hose Clip (2) @ Engine Wiring Harness - Remove

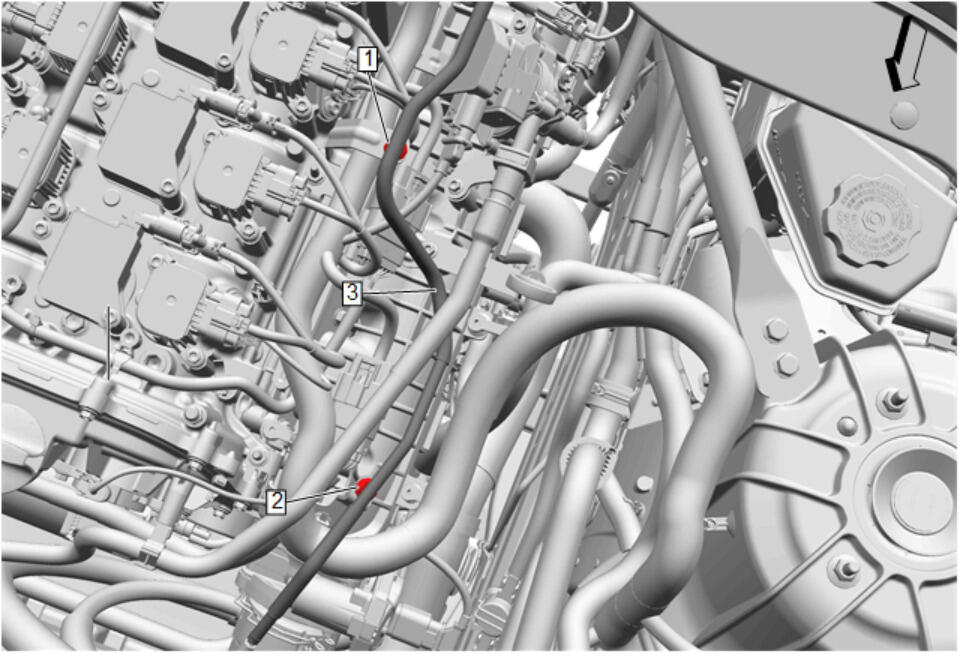

  7. GM5312610Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Inlet Hose Clip (1) @ Radiator Surge Tank Inlet Pipe Bracket - Remove

  8. Radiator Surge Tank Inlet Hose Clip (2) @ Radiator Surge Tank Inlet Pipe Bracket - Remove
  9. Radiator Surge Tank Outlet Pipe (3) - Reposition

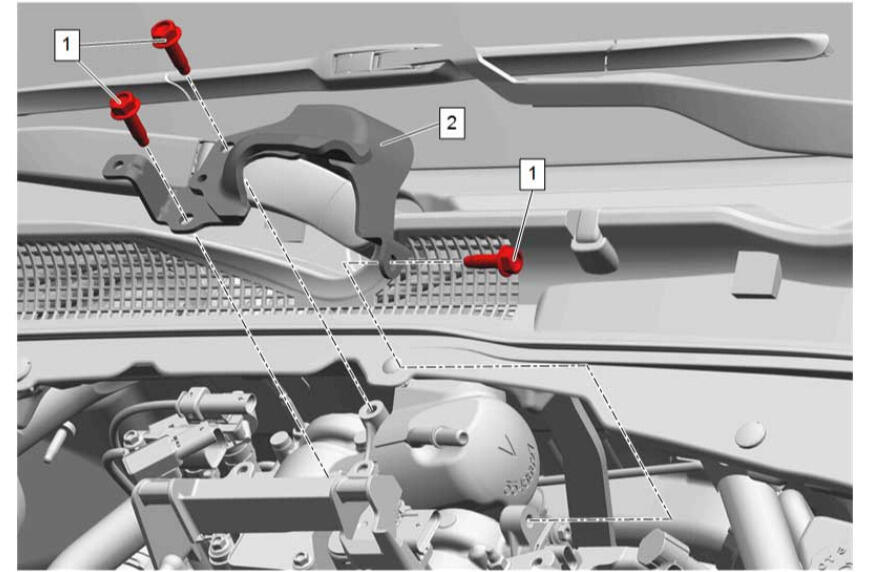

  10. GM5422918Courtesy of GENERAL MOTORS COMPANY

    Reposition wiring harness as necessary.

  11. Fuel Pump Shield Bolt (1) - Remove [3x]
  12. Fuel Pump Cover (2) - Remove
