Removal Procedure
- Relieve the fuel system pressure. Fuel Pressure Relief
- Remove the oil fill cap.
Lift up on the front of the intake manifold cover (1).
Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove
Reposition wiring harness as necessary.

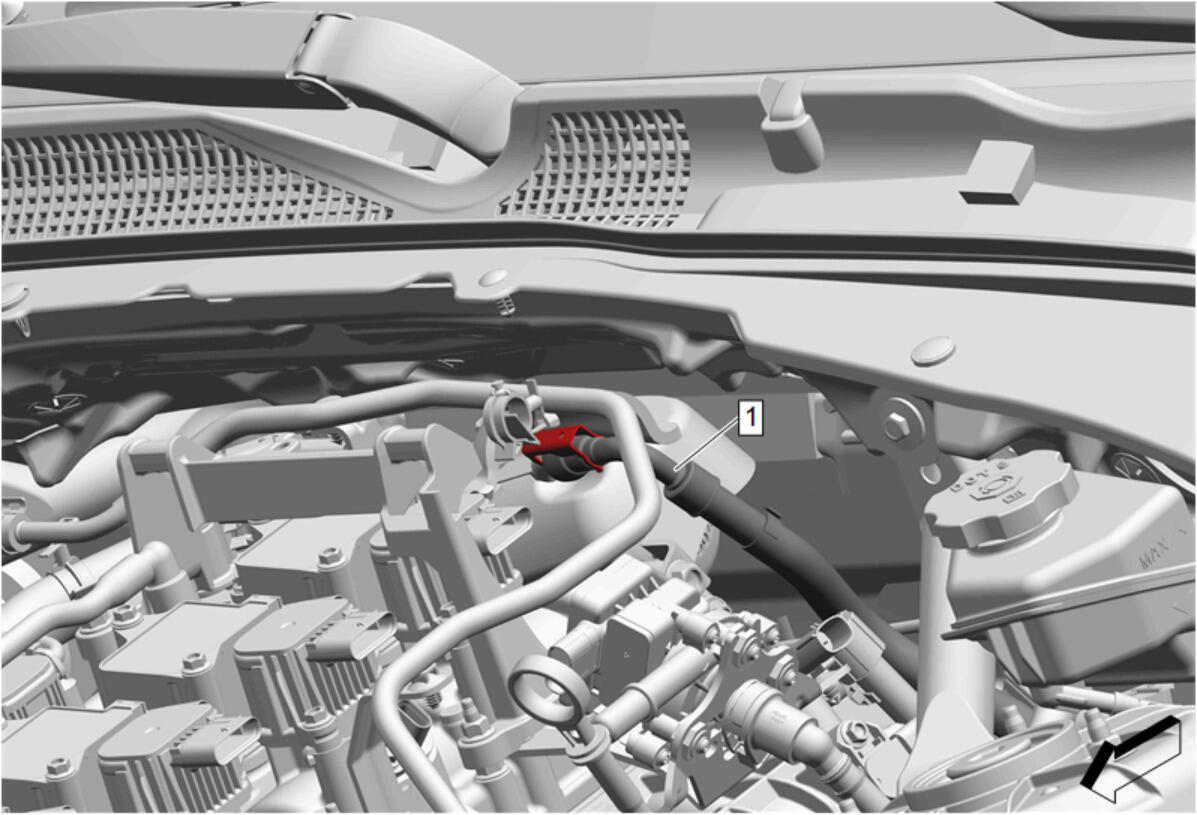

- Fuel Feed Pipe (1) @ Fuel Pump - Disconnect - Metal Collar Quick Connect Fitting Service
Disconnect transmission vent hose retainer and reposition.
Reposition wiring harness as necessary.

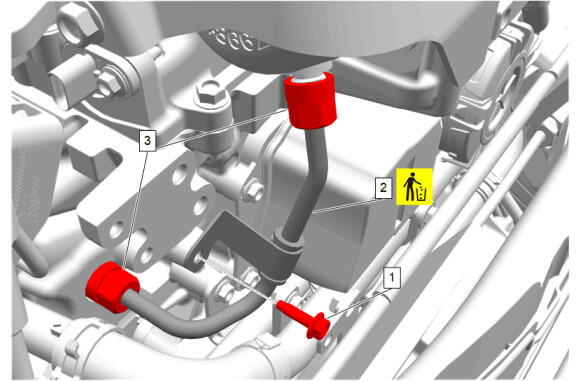

- Fuel Injection Fuel Feed Pipe Bolt (1) - Remove
- Fuel Injection Fuel Feed Front Pipe Nut (3) - Remove [2x]
- Fuel Feed Intermediate Pipe (2) - Remove and DISCARD
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Refer to Safety Glasses Warning .
