Home >> Cadillac >> 2023 >> CT4 Luxury, RWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry - Passive and Keyless Start

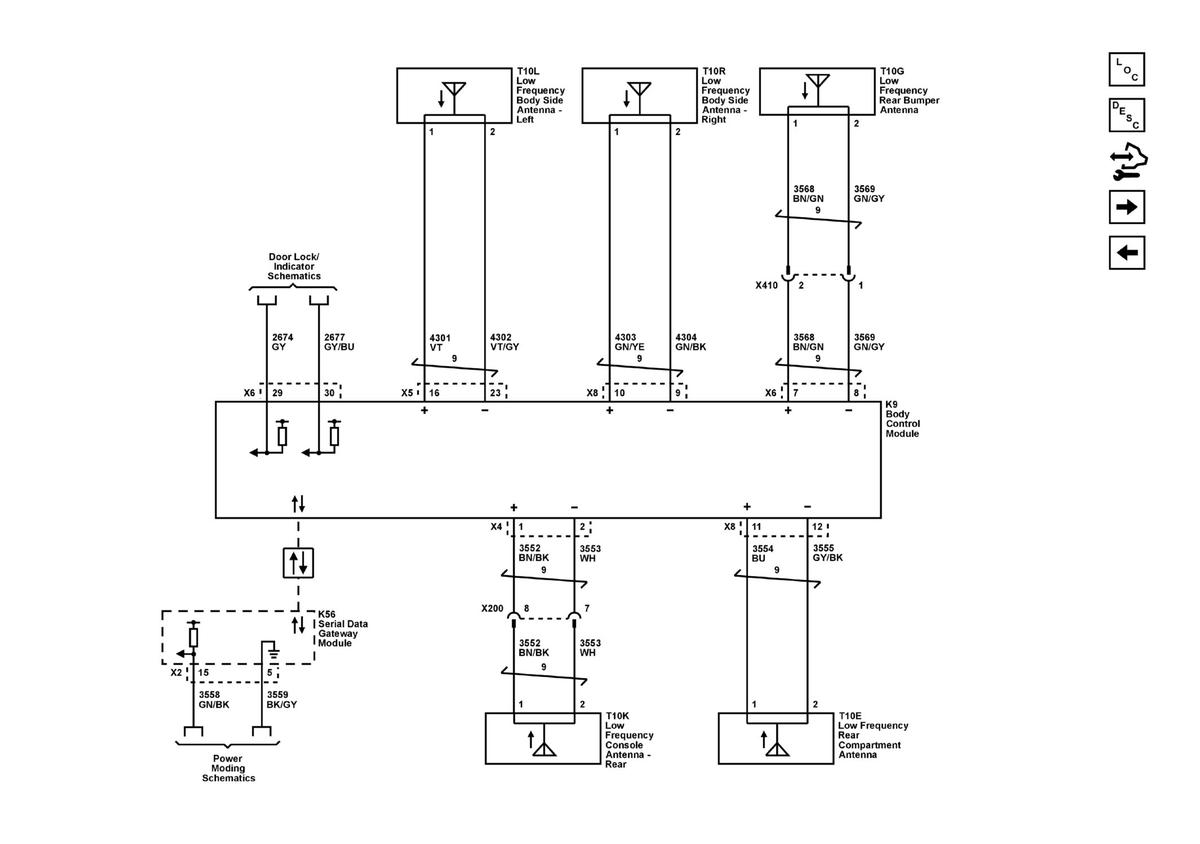

Keyless Entry - Passive and Keyless Start

GM5991328Courtesy of GENERAL MOTORS COMPANY
