Air Cleaner Element Replacement

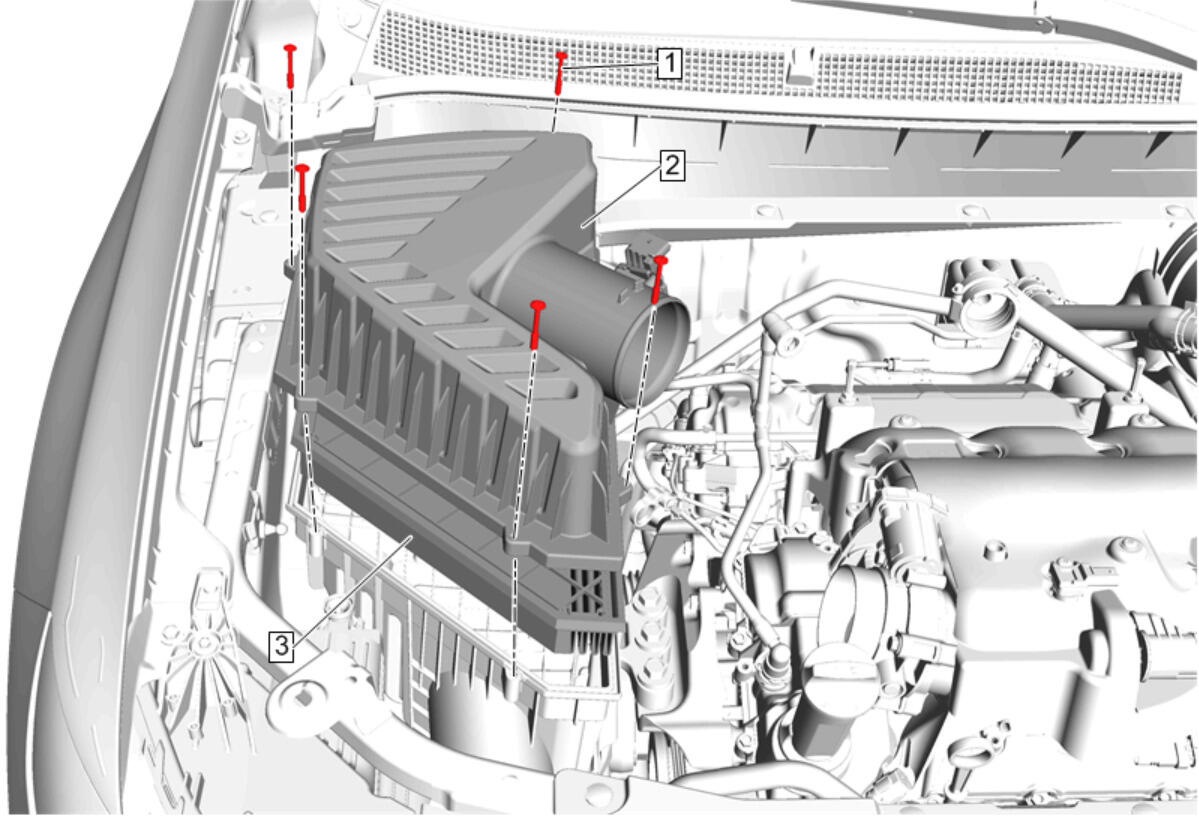

GM5224121Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Air Cleaner Outlet Duct Replacement
  2. Disconnect the electrical connector.
  3. Remove wiring harness retainers from air cleaner assembly.
1 Air Cleaner Housing Cover Bolt [5x]
CAUTION:

Refer to Fastener Caution .


Tighten
4 N.m (35 lb in)
2 Air Cleaner Upper Housing
3 Air Cleaner Element
