Air Cleaner Element Replacement

Courtesy of GENERAL MOTORS COMPANY

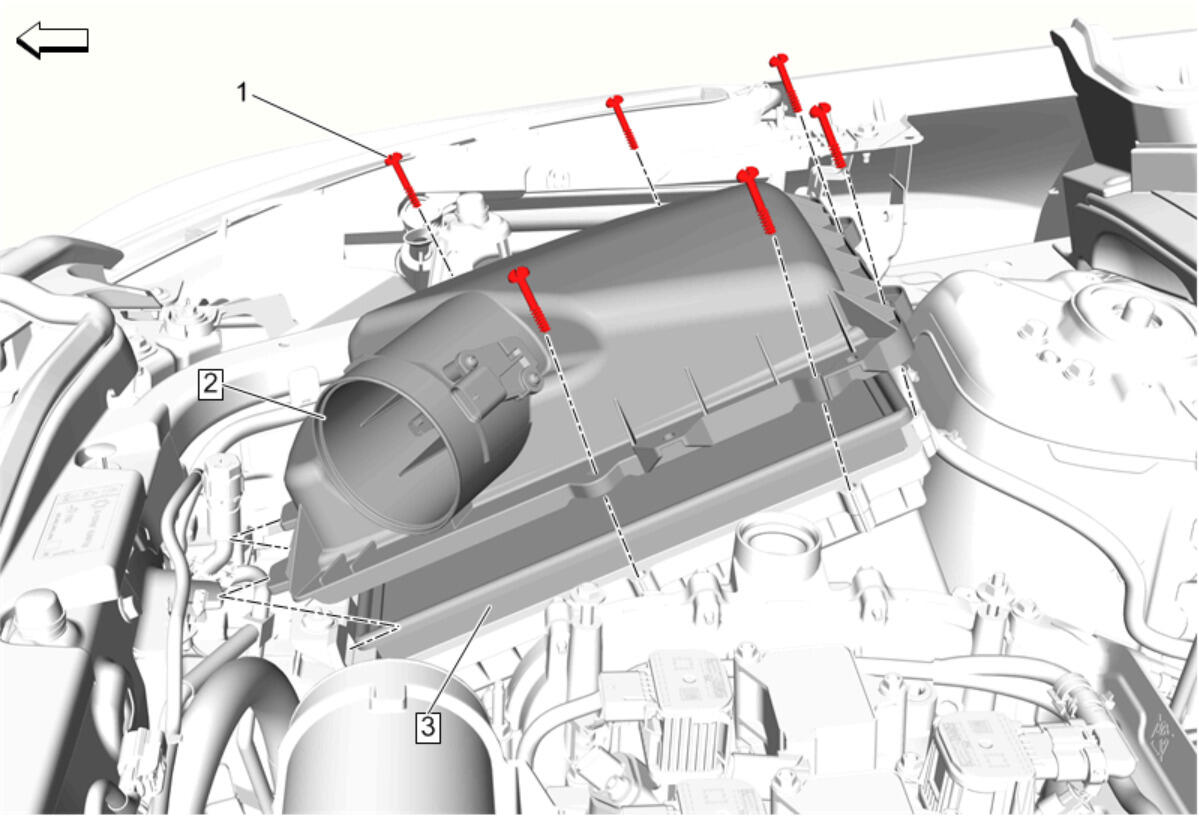

Callout	Component Name
Preliminary Procedures Front Compartment Side Sight Shield-Left Side - Remove - Front Compartment Side Sight Shield Replacement Air Cleaner Outlet Duct Replacement Disconnect the electrical connector. Remove wiring harness retainers from air cleaner assembly.
1	Air Cleaner Housing Cover Bolt [6x] CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Air Cleaner Upper Housing
3	Air Cleaner Element
