Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

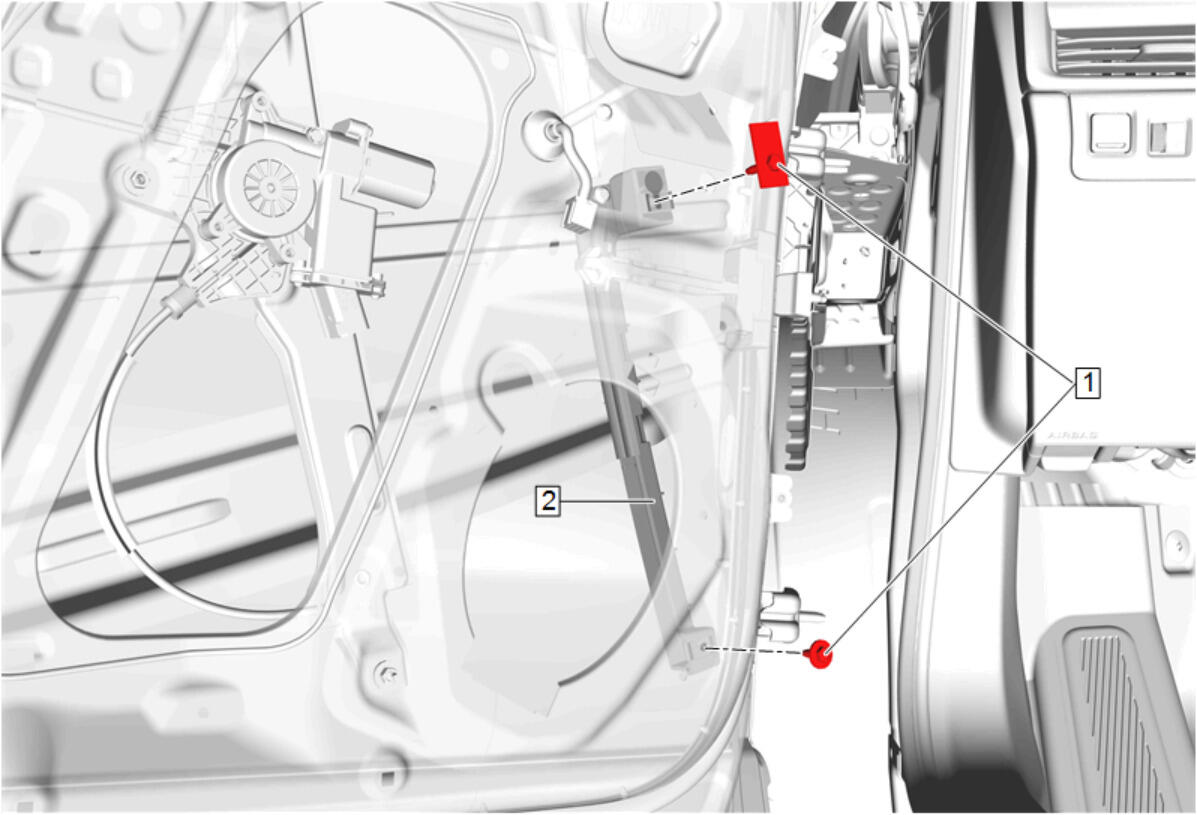

Front Side Door Window Channel Front Retainer (2) - Install

CAUTION:

Front Side Door Window Channel Front Retainer Bolt (1) - Install and tighten [2x] 11 N.m (97 lb in)
Courtesy of GENERAL MOTORS COMPANY

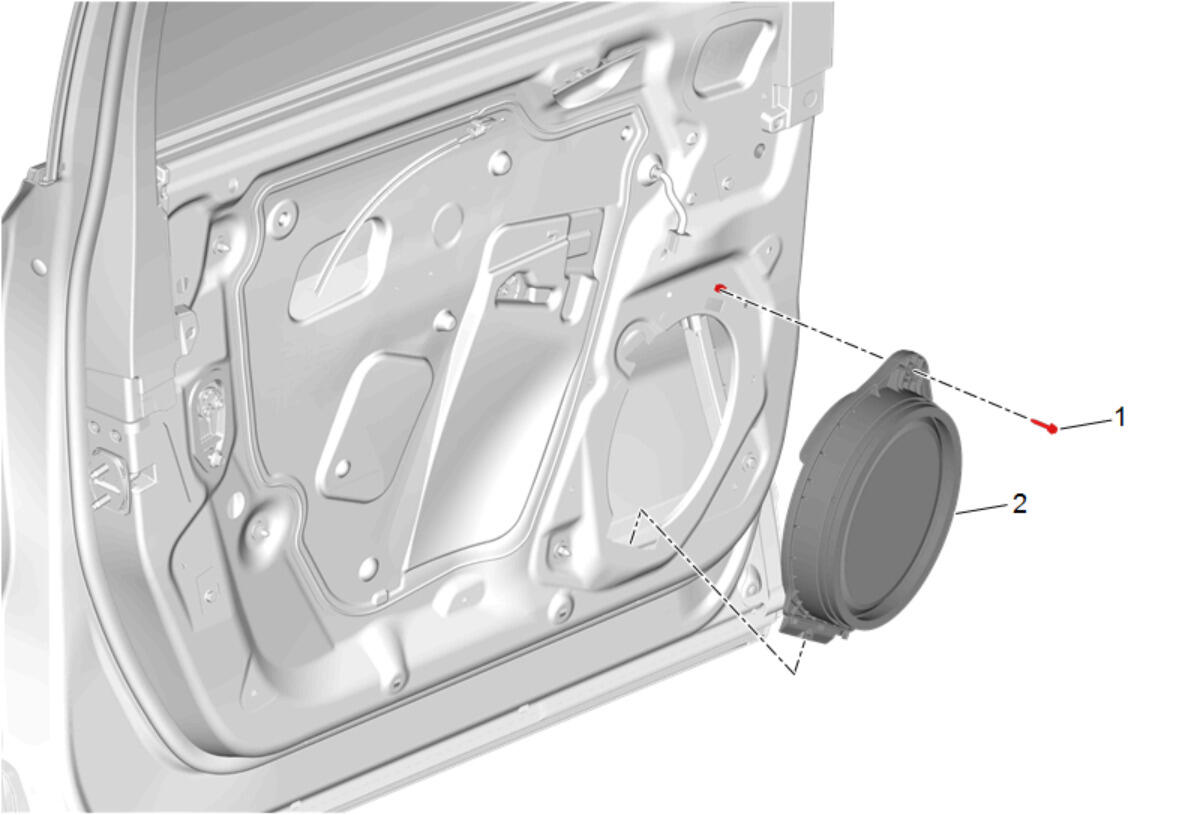

Radio Front Side Door Speaker (2) - Install - Radio Front Side Door Speaker Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Water Deflector (2) - Install - Front Side Door Water Deflector Replacement
Ensure the window system operates properly.
