Horn Replacement

Courtesy of GENERAL MOTORS COMPANY

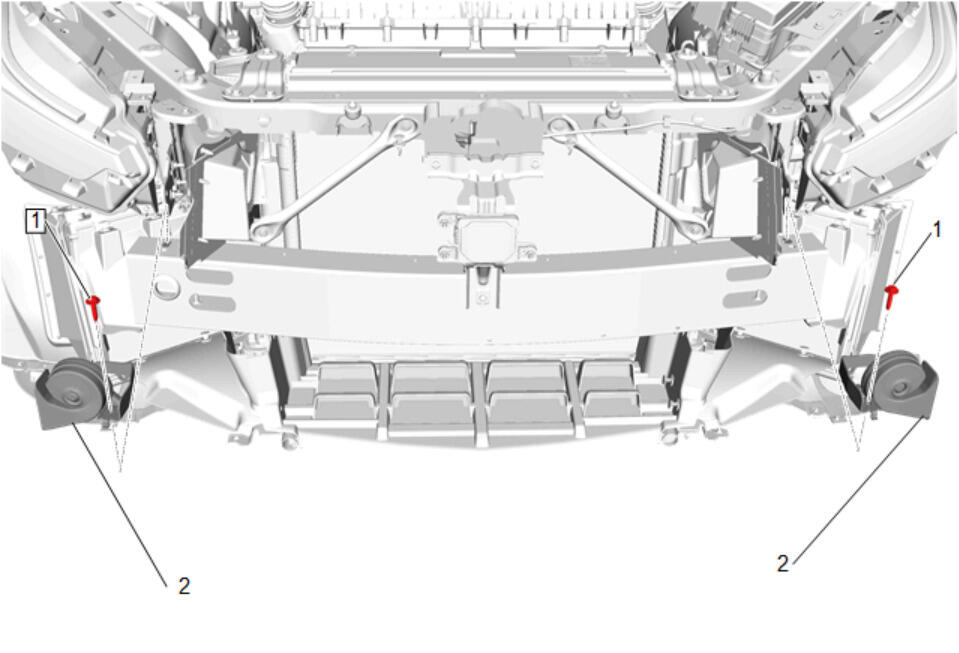

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement (without Blackwing)Front Bumper Fascia Replacement (with Blackwing)
1	Horn Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Horn [2x] Procedure Disconnect the electrical connector. Release the wire harness retainer from horn bracket.

Callout

Component Name

Horn Bolt [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Horn [2x]

Procedure
