Installation Procedure

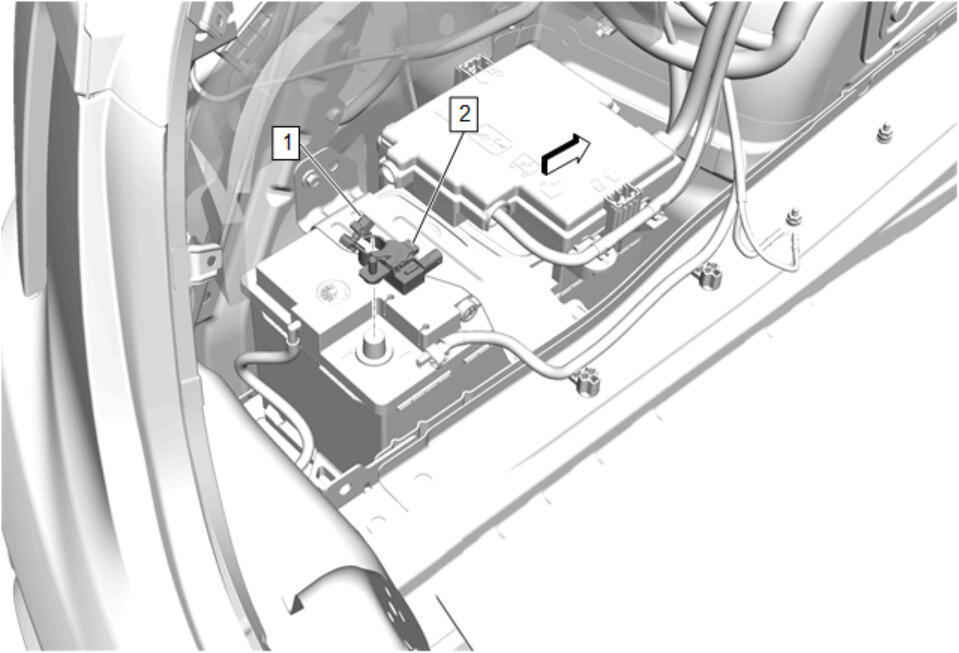

  1. GM5310228Courtesy of GENERAL MOTORS COMPANY

    Battery Monitor Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Post Negative Cable Clamp Nut (1) - Tighten 4.5 N.m (40 lb in)

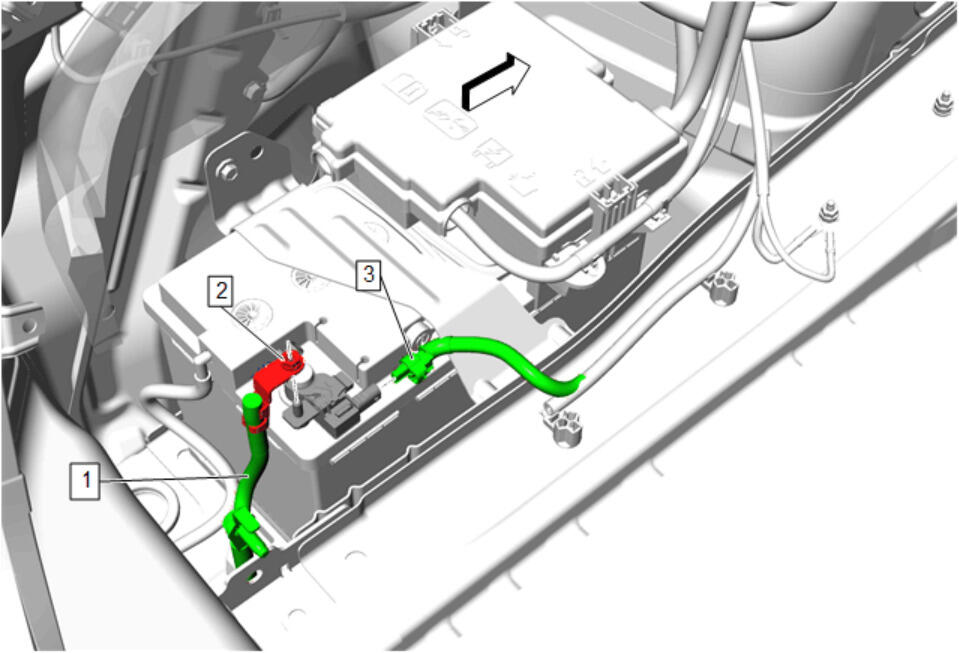

  3. GM5310144Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable (1) - Install

  4. Battery Negative Cable Nut (2) @Battery Monitor Module - Install and Tighten 9 N.m (80 lb in)
  5. Electrical Connector (3) - Connect

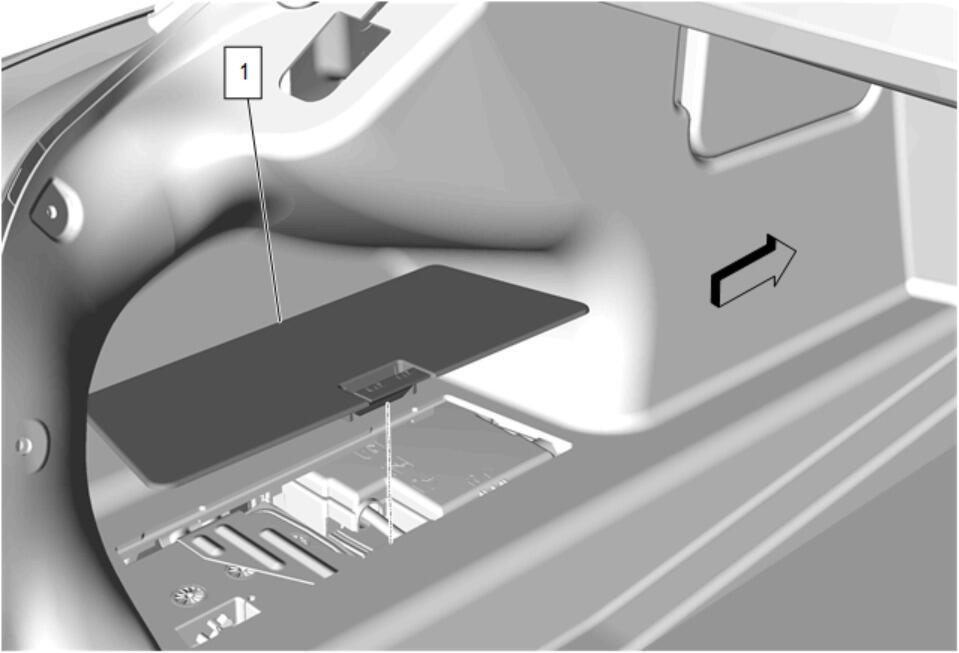

  6. GM5310002Courtesy of GENERAL MOTORS COMPANY

    Battery Access Cover (1) - Install
