Fuel Level Sensor Replacement

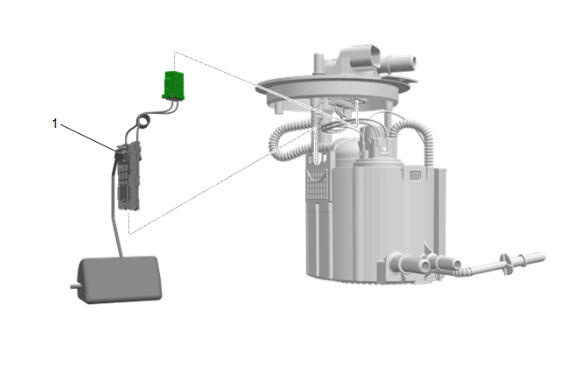

GM5835371Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Fuel Tank Fuel Pump Module Replacement
1 Fuel Level Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Release tabs and slide fuel level sensor up to remove.
