Engine Oil Pressure Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

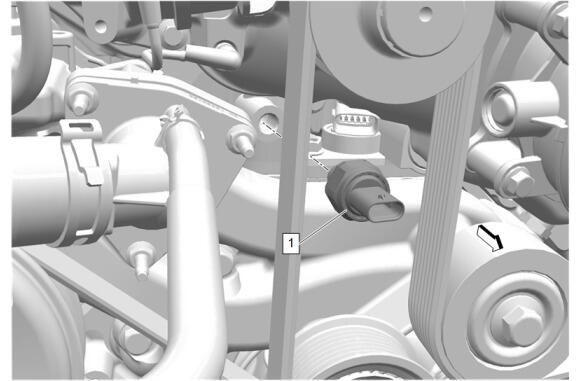

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Air Cleaner Outlet Duct Replacement
1	Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the electrical connector. Clean and inspect O-ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers Tighten 35 N.m (26 lb ft)

Callout

Component Name

Engine Oil Pressure Sensor

CAUTION:

Procedure

Disconnect the electrical connector.
Clean and inspect O-ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers

Tighten
35 N.m (26 lb ft)
