Installation Procedure

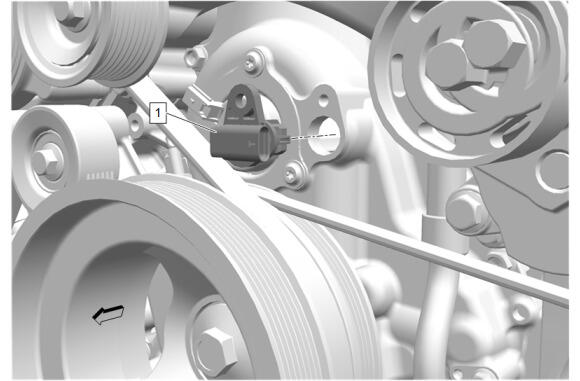

  1. GM5834703Courtesy of GENERAL MOTORS COMPANY

    Camshaft Position Sensor (1) - Install

  2. GM4211991Courtesy of GENERAL MOTORS COMPANY

    Install the camshaft position sensor wire (1).

  3. GM4211962Courtesy of GENERAL MOTORS COMPANY

    Connect the and the engine wiring harness connector (1), oil pump flow control valve connector (2), camshaft position actuator solenoid connector (3), camshaft position sensor connector (4).

  4. GM4211965Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Camshaft Position Sensor Bracket Bolt (1) - Install and tighten [2x] 25 N.m (18 lb ft)

  5. Air Conditioning Compressor Belt - Install - Air Conditioning Compressor Belt Replacement
  6. Air Cleaner Outlet Duct - Install - Air Cleaner Outlet Duct Replacement
