Installation Procedure

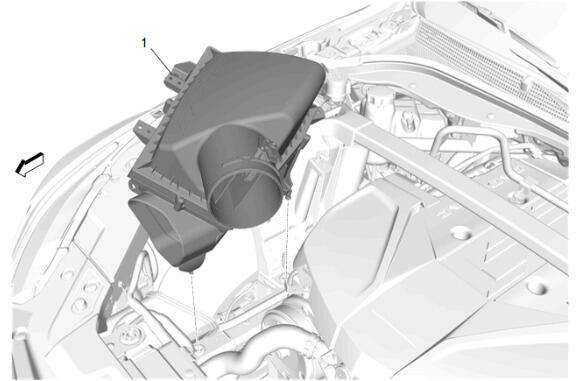

  1. GM5831521Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Assembly (1) - Install

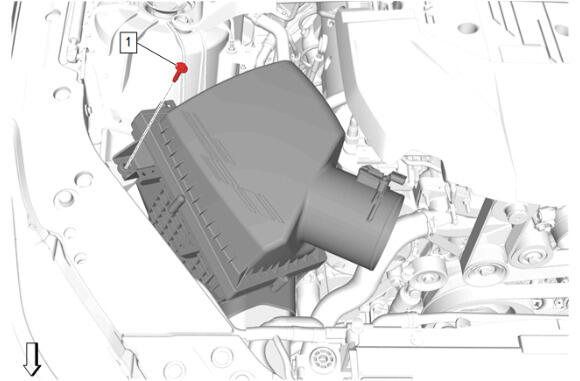

  2. GM5831520Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Air Cleaner Bolt (1) - Install and tighten 9 N.m (80 lb in)

  3. Connect the electrical connector and install all retainers to the air cleaner assembly.

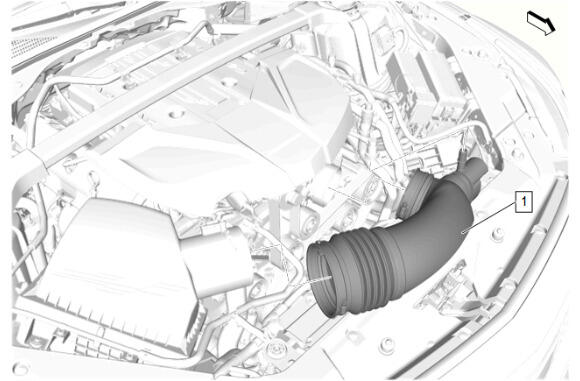

  4. GM5831524Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct (1) - Install - Air Cleaner Outlet Duct Replacement
