Fastener Specifications

GM5485744Courtesy of GENERAL MOTORS COMPANY
Column Lock Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Lock Control Module Protector Bolt [4x] Yes - Tighten until the bolt head breaks off Column Lock Module Replacement
2 Steering Column Lock Control Module Bolt [4x] - - 9.5 N.m (84 lb in) Column Lock Module Replacement
GM5421005Courtesy of GENERAL MOTORS COMPANY
Steering Column (AWD)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Intermediate Steering Shaft Lower Bolt - Yes 57 N.m (42 lb ft) Intermediate Steering Shaft Replacement (RWD without Blackwing) , or Intermediate Steering Shaft Replacement (AWD) , or Intermediate Steering Shaft Replacement (RWD with Blackwing)
2 Mid Intermediate Steering Shaft Bolt - Yes 36 N.m (27 lb ft) Mid Lower Intermediate Steering Shaft Replacement
3 Mid Intermediate Steering Shaft Bolt [2x] - Yes 36 N.m (27 lb ft) Mid Intermediate Steering Shaft Replacement (RWD without Blackwing) , or Mid Intermediate Steering Shaft Replacement (AWD) , or Mid Intermediate Steering Shaft Replacement (RWD with Blackwing)
4 Intermediate Steering Shaft Boot Nut [3x] - - Intermediate Steering Shaft Boot Nut Sequence  Intermediate Steering Shaft Boot Replacement - Outer
5 Intermediate Steering Shaft Boot Nut - - 9 N.m (80 lb in) Intermediate Steering Shaft Boot Replacement - Inner
6 Upper Intermediate Steering Shaft Bolt - - 50 N.m (37 lb ft) Steering Column Replacement (with N37) , or Steering Column Replacement (with N38)
7 Steering Column Nut [4x] - - Steering Column Nut Sequence  Steering Column Replacement (with N37) , or Steering Column Replacement (with N38)
8 Steering Wheel Bolt - Yes 45 N.m (33 lb ft) Steering Wheel Replacement
GM5485104Courtesy of GENERAL MOTORS COMPANY
Steering Column (RWD)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Intermediate Steering Shaft Lower Bolt - Yes 57 N.m (42 lb ft) Intermediate Steering Shaft Replacement (RWD without Blackwing) , or Intermediate Steering Shaft Replacement (AWD) , or Intermediate Steering Shaft Replacement (RWD with Blackwing)
2 Mid Intermediate Steering Shaft Bolt [2x] - Yes 36 N.m (27 lb ft) Mid Intermediate Steering Shaft Replacement (RWD without Blackwing) , or Mid Intermediate Steering Shaft Replacement (AWD) , or Mid Intermediate Steering Shaft Replacement (RWD with Blackwing)
3 Intermediate Steering Shaft Boot Nut [3x] - - Intermediate Steering Shaft Boot Nut Sequence  Intermediate Steering Shaft Boot Replacement - Outer
4 Intermediate Steering Shaft Boot Nut - - 9 N.m (80 lb in) Intermediate Steering Shaft Boot Replacement - Inner
5 Upper Intermediate Steering Shaft Bolt - - 50 N.m (37 lb ft) Upper Intermediate Steering Shaft Replacement
6 Steering Column Nut [4x] - - Steering Column Nut Sequence  Steering Column Replacement (with N37) , or Steering Column Replacement (with N38)
7 Steering Wheel Bolt - Yes 45 N.m (33 lb ft) Steering Wheel Replacement

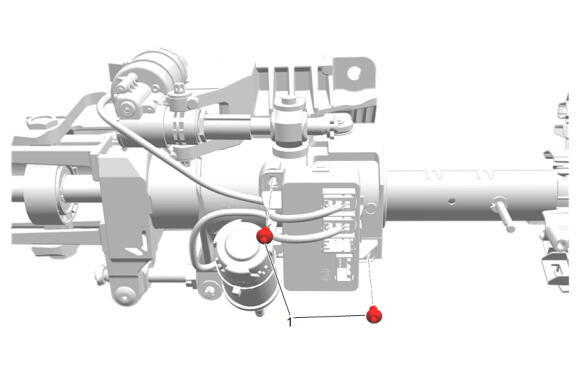

GM5876159Courtesy of GENERAL MOTORS COMPANY
Steering Column Tilt Wheel and Telescope Control Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Control Module Bracket Bolt [2x] - - 2.5 N.m (22 lb in) Steering Column Tilt Wheel and Telescope Control Module Replacement

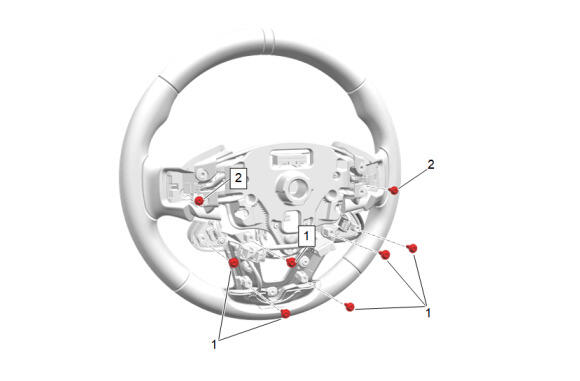

GM5876163Courtesy of GENERAL MOTORS COMPANY
Steering Wheel (Blackwing)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Bolt @ Steering Wheel Shroud [6x] - - 1.8 N.m (16 lb in) Steering Wheel Shroud Replacement (without Blackwing) , or Steering Wheel Shroud Replacement (Blackwing with MHU) , or Steering Wheel Shroud Replacement (Blackwing with MG9)
2 Steering Wheel Bolt @ Steering Wheel Spoke Cover [2x] - - 1.8 N.m (16 lb in) Steering Wheel Spoke Cover Replacement (without Blackwing) , or Steering Wheel Spoke Cover Replacement (Blackwing with MHU) , or Steering Wheel Spoke Cover Replacement (Blackwing with MG9)

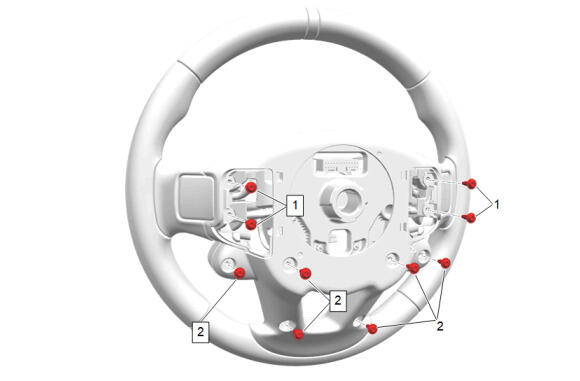

GM5873395Courtesy of GENERAL MOTORS COMPANY
Steering Wheel (Blackwing and MG9)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Bolt @ Steering Wheel Shroud [4x] - - 3.5 N.m (31 lb in) Steering Wheel Shroud Replacement (without Blackwing) , or Steering Wheel Shroud Replacement (Blackwing with MHU) , or Steering Wheel Shroud Replacement (Blackwing with MG9)
2 Steering Wheel Bolt @ Steering Wheel Shroud [6x] - - 1.8 N.m (16 lb in) Steering Wheel Shroud Replacement (without Blackwing) , or Steering Wheel Shroud Replacement (Blackwing with MHU) , or Steering Wheel Shroud Replacement (Blackwing with MG9)
GM5442980Courtesy of GENERAL MOTORS COMPANY
Steering Wheel (without Blackwing)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Bolt @ Steering Wheel Shroud [4x] - - 1.8 N.m (16 lb in) Steering Wheel Shroud Replacement (without Blackwing) , or Steering Wheel Shroud Replacement (Blackwing with MHU) , or Steering Wheel Shroud Replacement (Blackwing with MG9)
2 Steering Wheel Bolt @ Steering Wheel Spoke Cover [2x] - - 1.8 N.m (16 lb in) Steering Wheel Spoke Cover Replacement (without Blackwing) , or Steering Wheel Spoke Cover Replacement (Blackwing with MHU) , or Steering Wheel Spoke Cover Replacement (Blackwing with MG9)

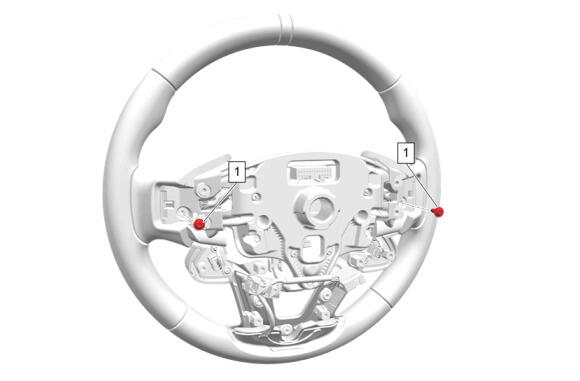

GM5876168Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Spoke Cover (MG9)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Bolt @ Steering Wheel Spoke Cover [2x] - - 1.8 N.m (16 lb in) Steering Wheel Spoke Cover Replacement (without Blackwing) , or Steering Wheel Spoke Cover Replacement (Blackwing with MHU) , or Steering Wheel Spoke Cover Replacement (Blackwing with MG9)
Intermediate Steering Shaft Boot Nut Sequence
GM5541048Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Intermediate Steering Shaft Boot Nut [3x] - - 9 N.m (80 lb in) Intermediate Steering Shaft Boot Replacement - Outer
Steering Column Nut Sequence
GM5433773Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Nut [4x] - - 22 N.m (16 lb ft) Steering Column Replacement (with N37) , or Steering Column Replacement (with N38)
