Active Safety Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

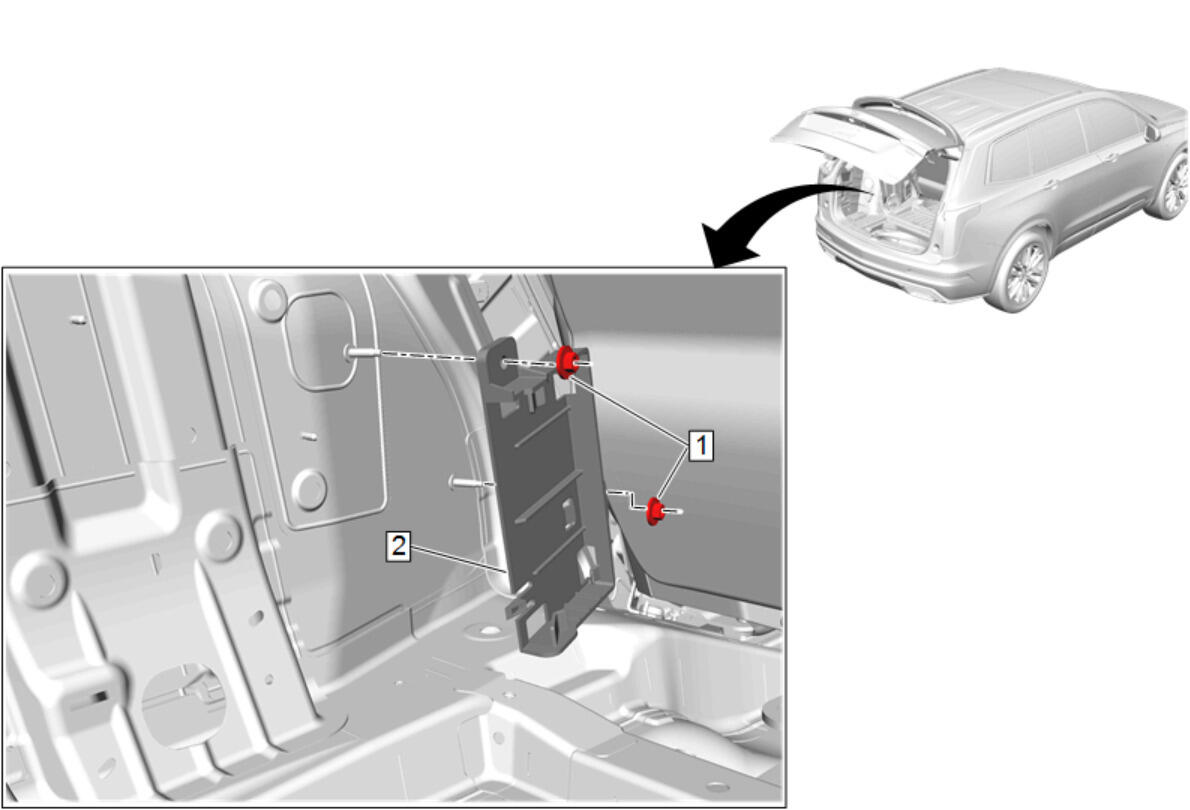

Callout	Component Name
Preliminary Procedure Image Processing Module Replacement
1	Active Safety Control Module Bracket Nut [ 2x ] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Active Safety Control Module Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Active Safety Control Module Bracket Nut [ 2x ]

CAUTION:

Tighten
9 N.m (80 lb in)

Active Safety Control Module Bracket

Procedure
