Front Side Door Outside Handle Insert Replacement

Courtesy of GENERAL MOTORS COMPANY

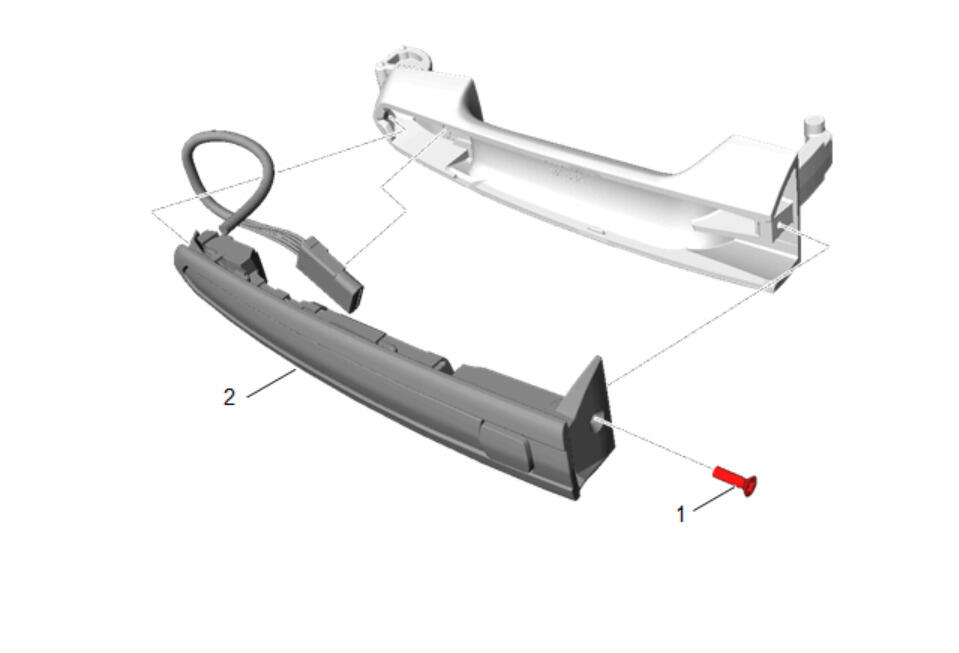

Callout	Component Name
Preliminary Procedure Remove the appropriate front side door outside handle: Front Side Door Outside Handle Replacement - Left Side Front Side Door Outside Handle Replacement - Right Side
1	Front Side Door Outside Handle Insert Bolt CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Front Side Door Outside Handle Insert Procedure Using an appropriate tool, release the front side door outside handle insert from the front side door outside handle. Pass the electrical connector through the grommet of the front side door outside handle.

Callout

Component Name

Preliminary Procedure
Remove the appropriate front side door outside handle:

Front Side Door Outside Handle Insert Bolt

CAUTION:

Tighten
1.5 N.m (13 lb in)

Front Side Door Outside Handle Insert

Procedure

Using an appropriate tool, release the front side door outside handle insert from the front side door outside handle.
Pass the electrical connector through the grommet of the front side door outside handle.
