Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Reset the front side door outside handle bracket counter balance as follows:
1. The outside door handle Can Not be installed until the counter balance is reset.

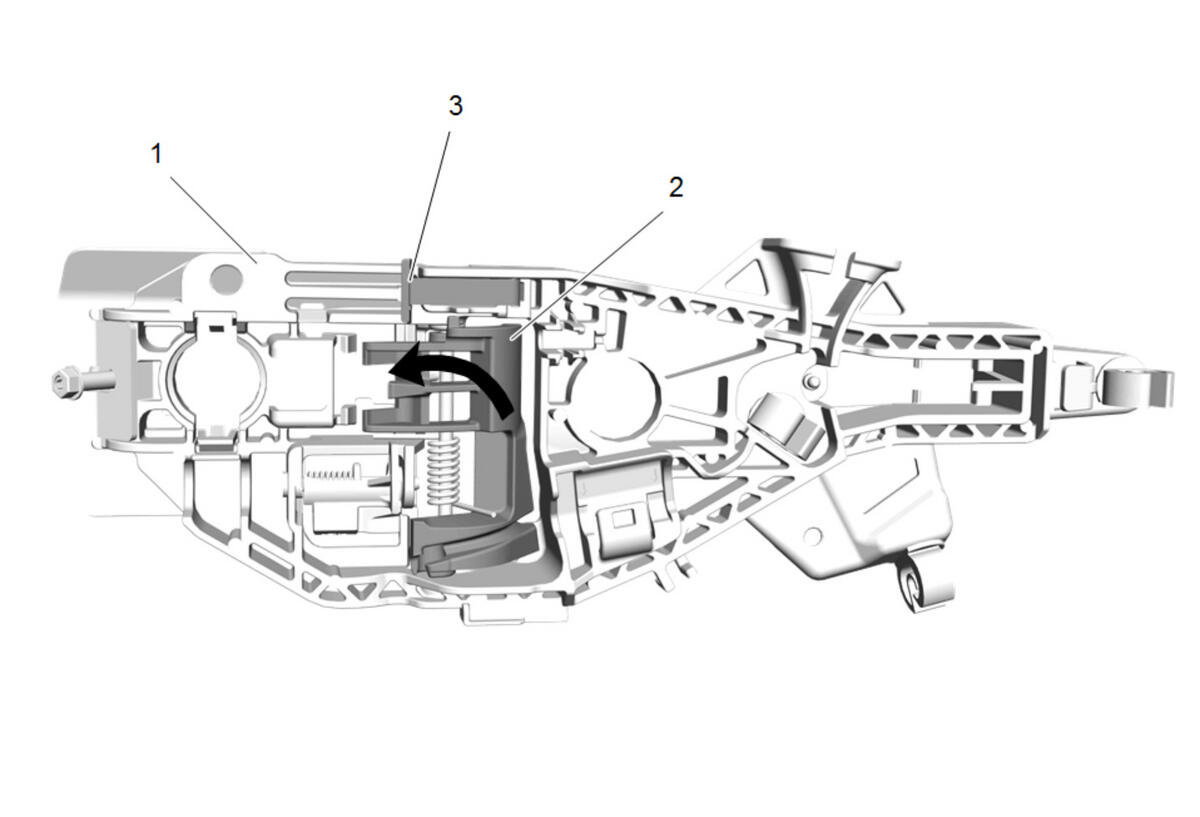

2. Grasp the front side door outside handle bracket (1) with one hand.
3. From the back side of the counter balance (2) push forward on the counter balance until it can be held in place using the bracket clip (3).
Courtesy of GENERAL MOTORS COMPANY

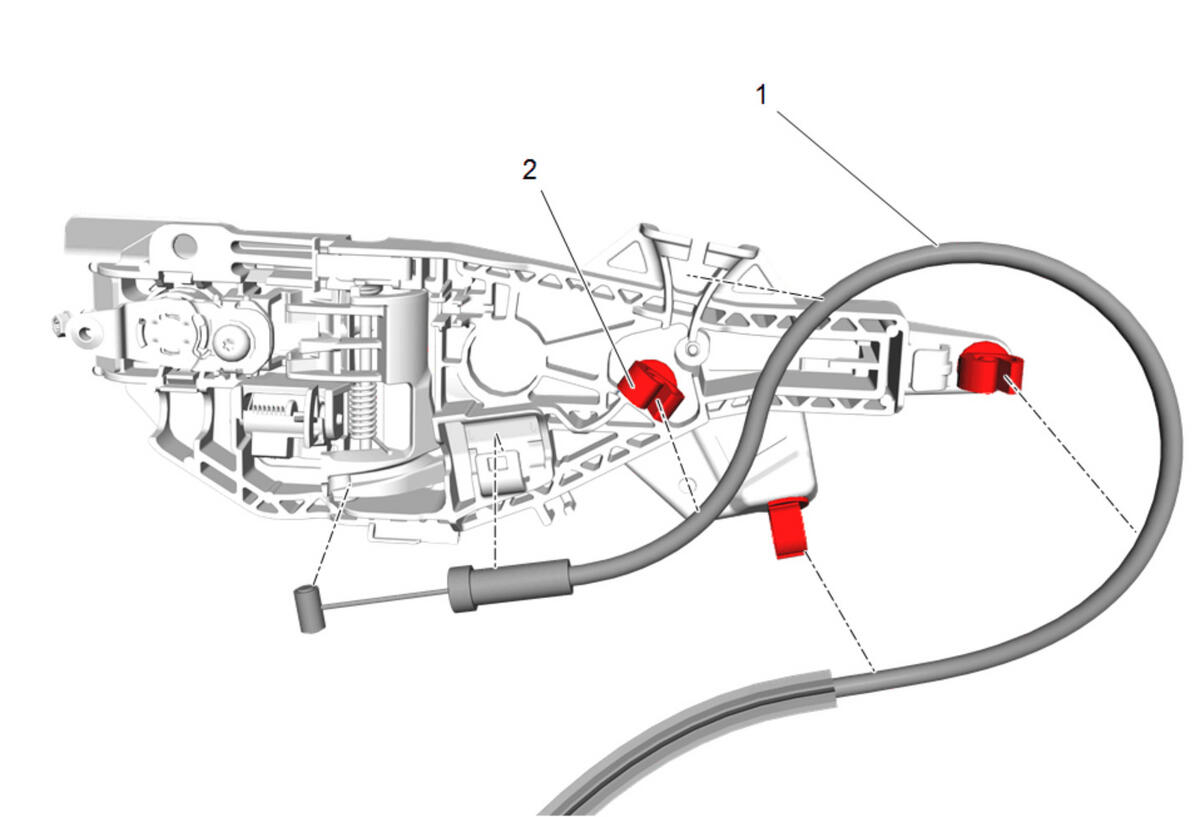

Install the front side door outside handle bracket cable (1) to the counter balance (2).
Courtesy of GENERAL MOTORS COMPANY

Install the front side door outside cable (1) into the retainers (2).
Courtesy of GENERAL MOTORS COMPANY

{ If equipped }Front Side Door Lock Cylinder (2) - Install - Front Side Door Lock Cylinder Replacement
Courtesy of GENERAL MOTORS COMPANY

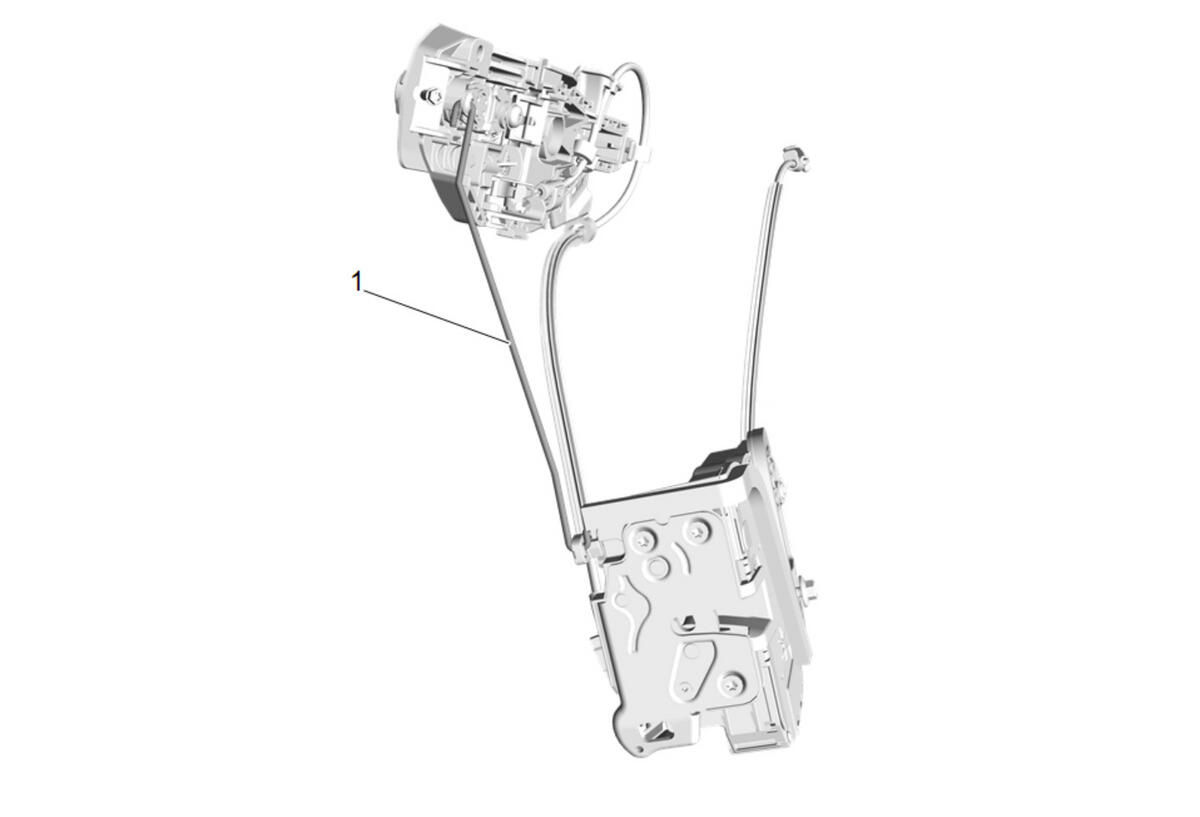

Install the front side door lock rod (1) to the front side door lock cylinder.
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Latch (2) - Install - Front Side Door Latch Replacement
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Ensure that the counter balance is reset and locked in the detent of the handle bracket. The counter balance Can Not be reset after the handle bracket has been reinstalled in the door.
- Bracket should be slid full rearward prior to tightening bracket screw.
CAUTION:
Refer to Fastener Caution .

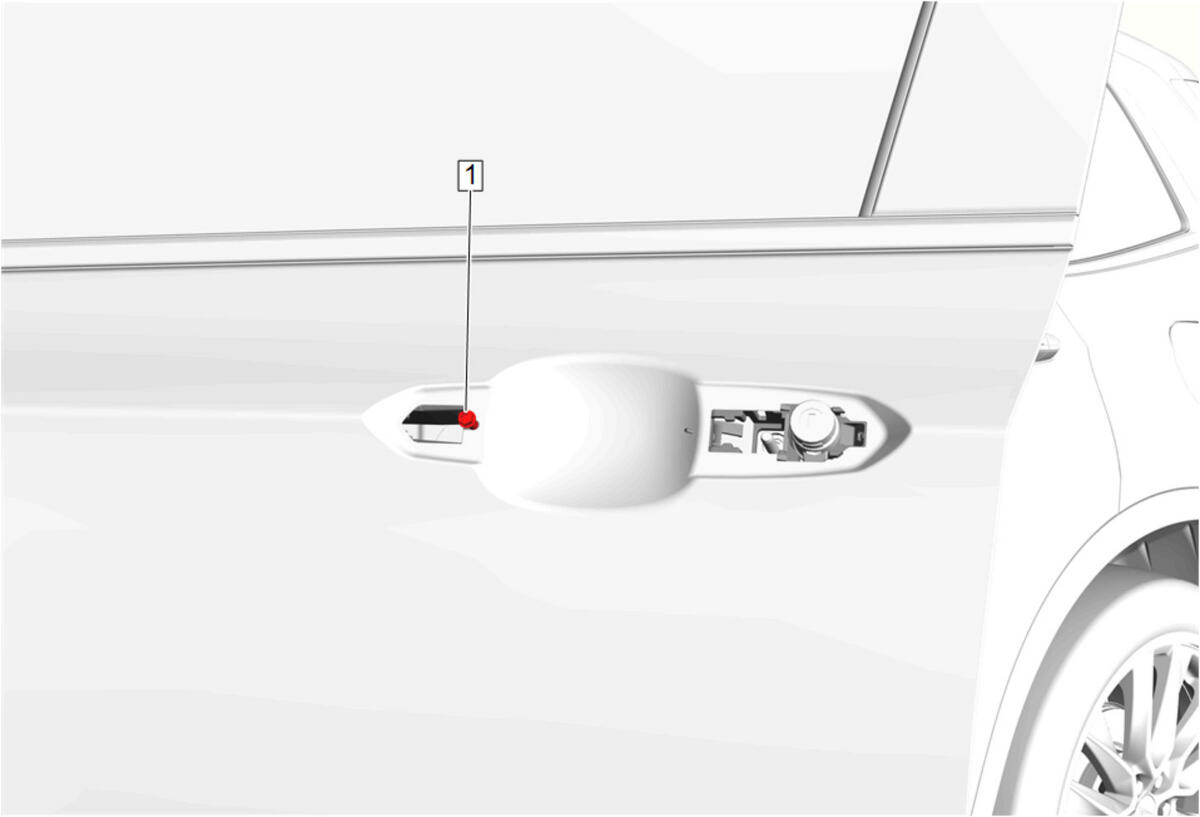

Front Side Door Outside Handle Bracket Screw (1) - Install and tighten 4.7 N.m (42 lb in)
Install the appropriate front side door outside handle:
- Front Side Door Outside Handle Replacement - Left Side
- Front Side Door Outside Handle Replacement - Right Side
Verify all door systems operate properly.
