Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

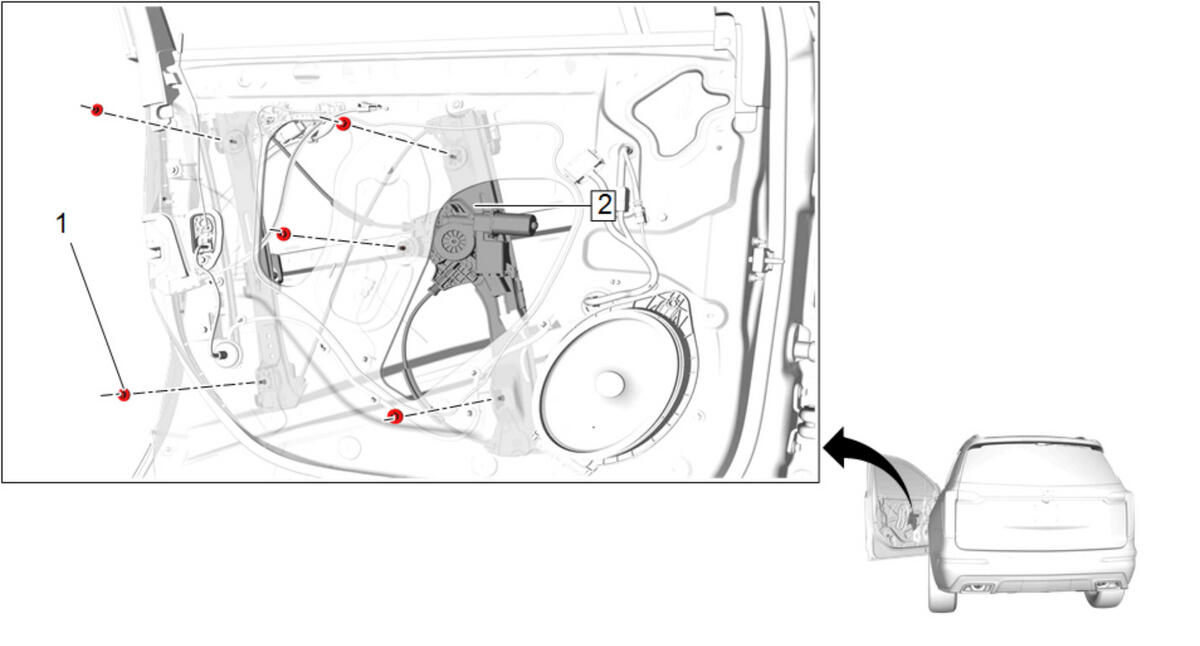

Front Side Door Window Regulator (2) - Remove - Front Side Door Window Regulator Replacement
Courtesy of GENERAL MOTORS COMPANY

{ If equipped }Front Side Door Lock Cover (3) - Remove - Front Side Door Lock Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Bracket (1) - Remove - Front Side Door Outside Handle Bracket Replacement
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

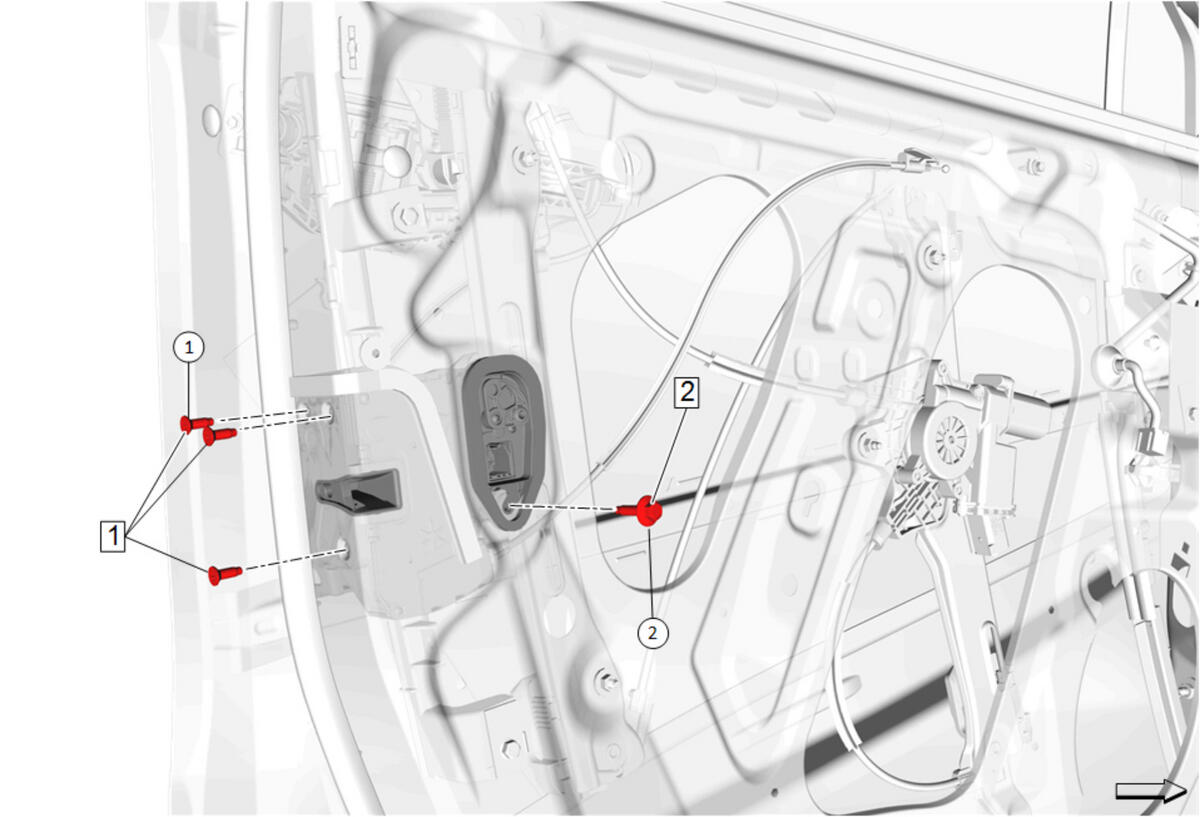

Front Side Door Latch Bolt (1) - Remove [ 3x ]
Front Side Door Latch Screw (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

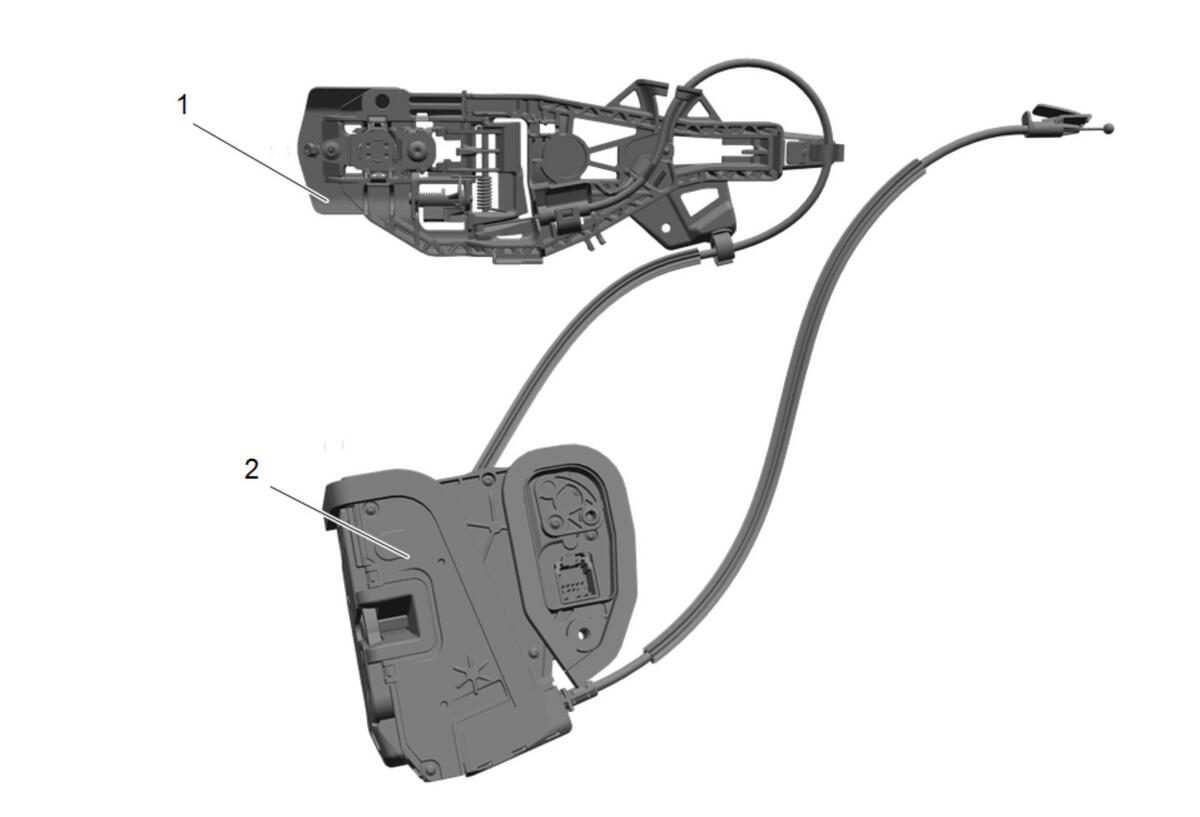

Remove both the front side door outside handle bracket (1) and the front side door latch (2).
Courtesy of GENERAL MOTORS COMPANY

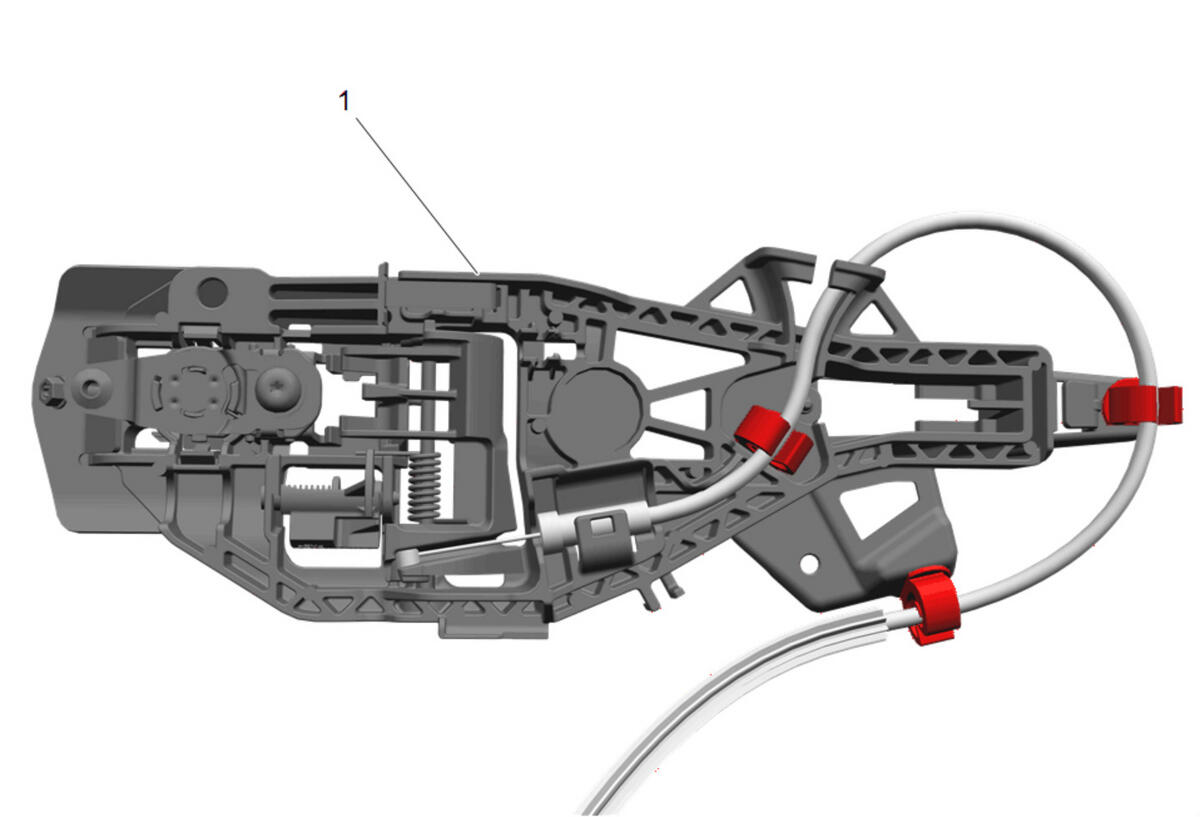

Front Side Door Outside Handle Cable (1) - Remove - Front Side Door Outside Handle Cable Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Inside Handle Cable (1) - Remove
