Removal Procedure
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the right front tire and wheel assembly. Tire and Wheel Removal and Installation

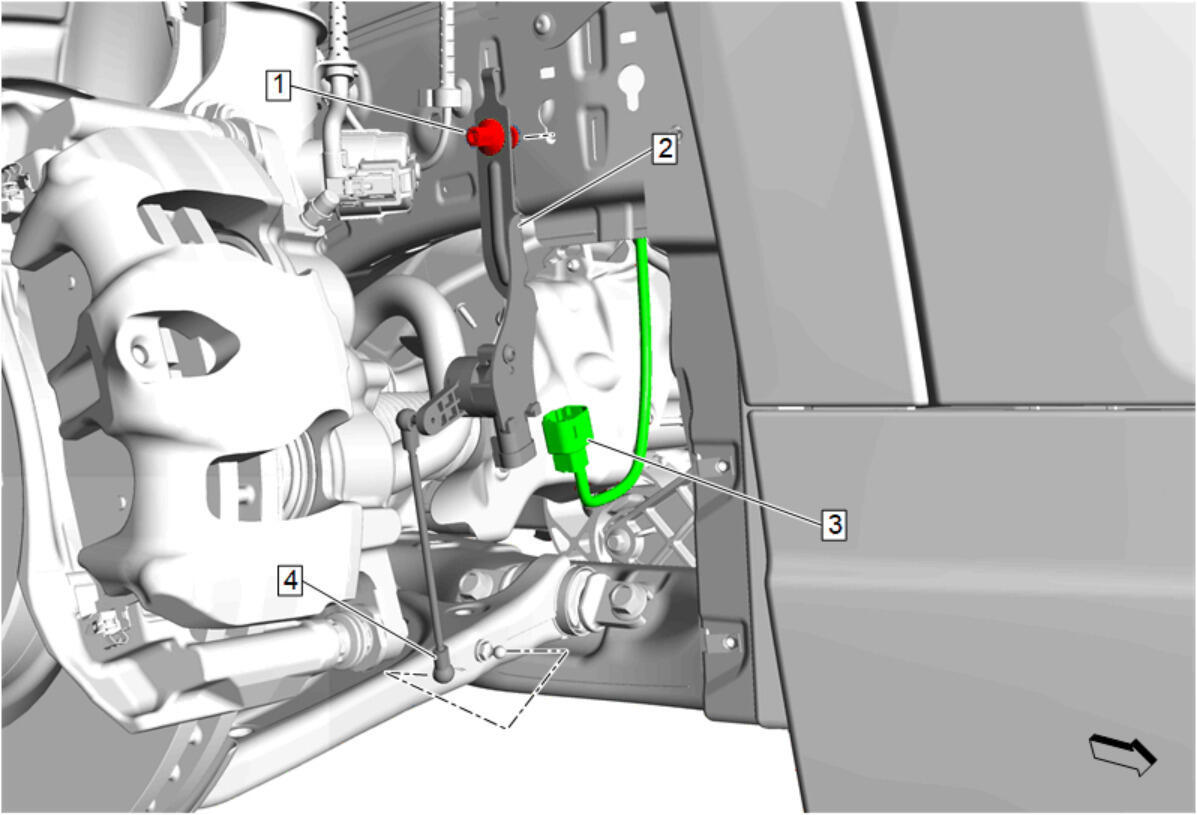

Disconnect the front suspension 4 corner leveling system position sensor electrical connector (3).
- Remove the front suspension 4 corner leveling system position sensor link arm (4) from the electronic suspension front position sensor link ball stud.
- Loosen the front suspension 4 corner leveling system position sensor nut (1).
- Lightly tap on the front suspension 4 corner leveling system position sensor nut (1) with a hammer to release the stud.
- Remove the front suspension 4 corner leveling system position sensor (2) from the keyhole slot in the body.
