Installation Procedure

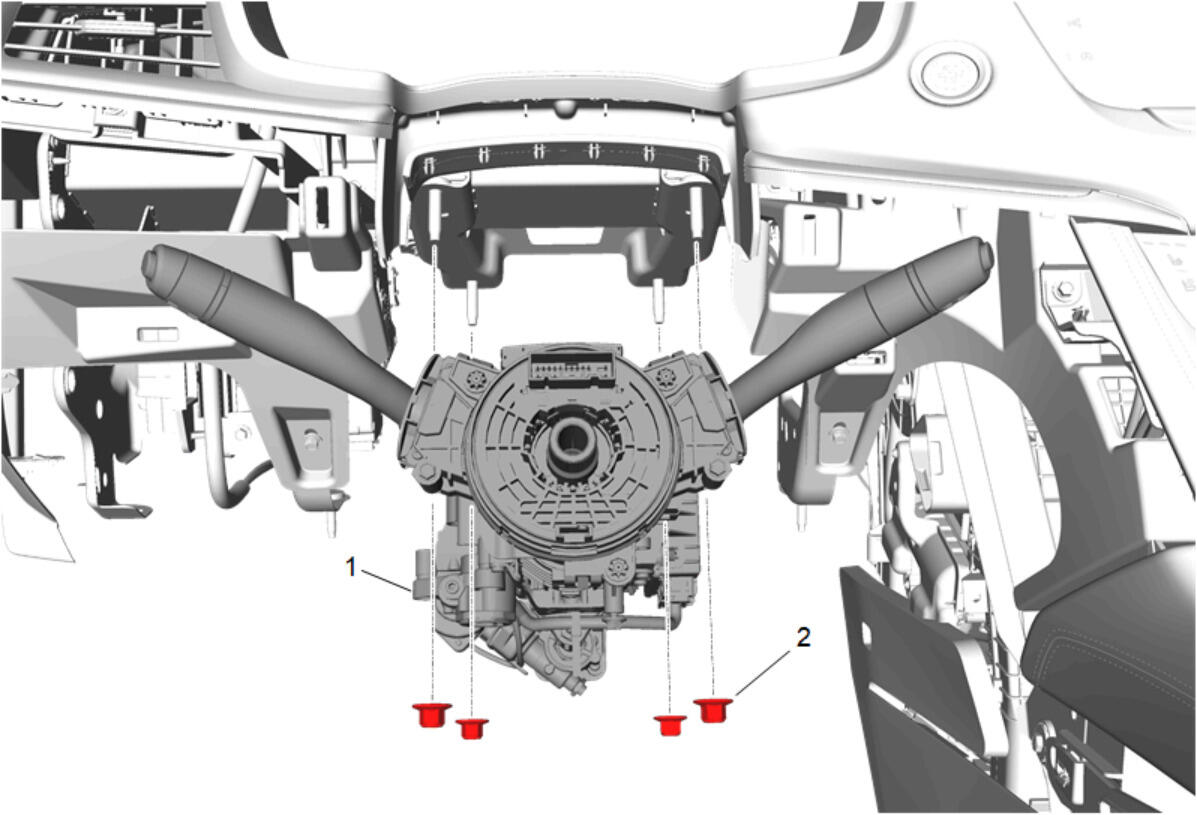

  1. GM5238418Courtesy of GENERAL MOTORS COMPANY

    Steering Column (1) - Install

    2. NOTE:

    Support the steering column while installing the steering column nuts.

  2. Steering Column Nut (2) - Install and hand tighten [4x]

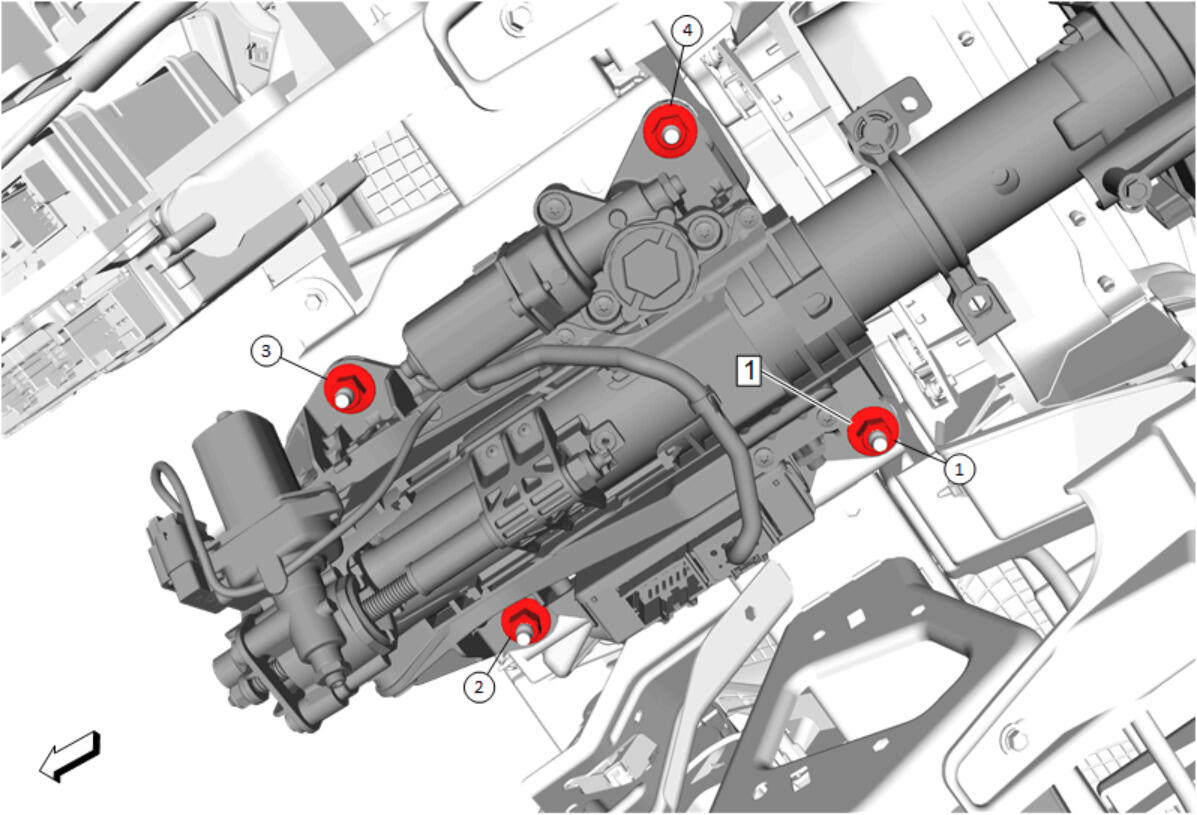

  3. GM5238564Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Steering Column Nut (1) - tighten in sequence[4x]22 N.m (16 lb ft)

  4. Connect the steering column electrical connectors.
  5. GM4421684Courtesy of GENERAL MOTORS COMPANY

    Align the relationship marks made between the steering column and the upper intermediate steering shaft (1) during removal.

  6. Intermediate Steering Shaft (1) @ Steering Column - Install - Intermediate Steering Shaft Replacement

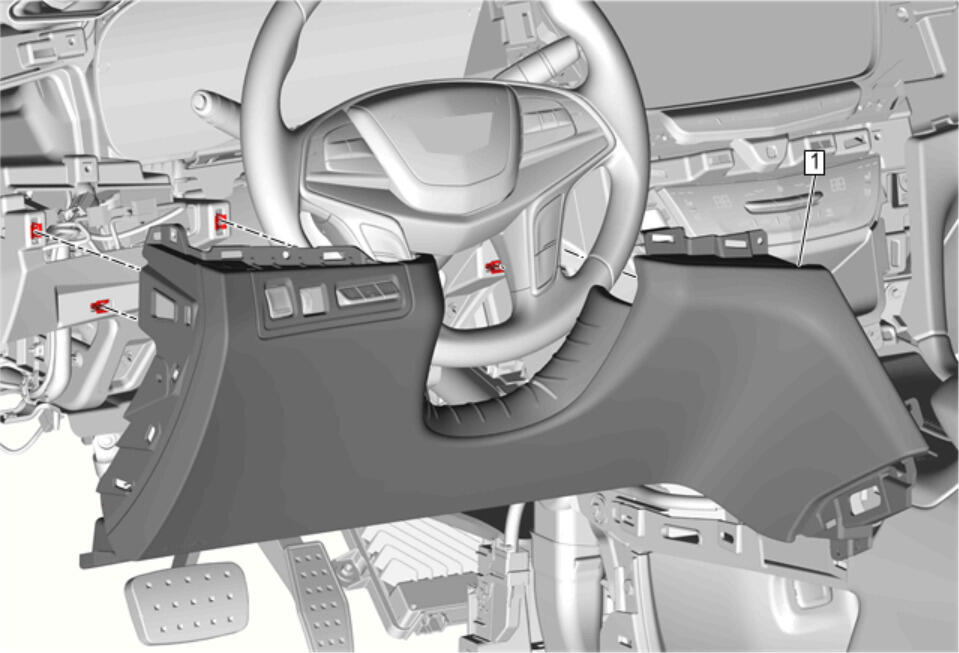

  7. GM4279825Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement

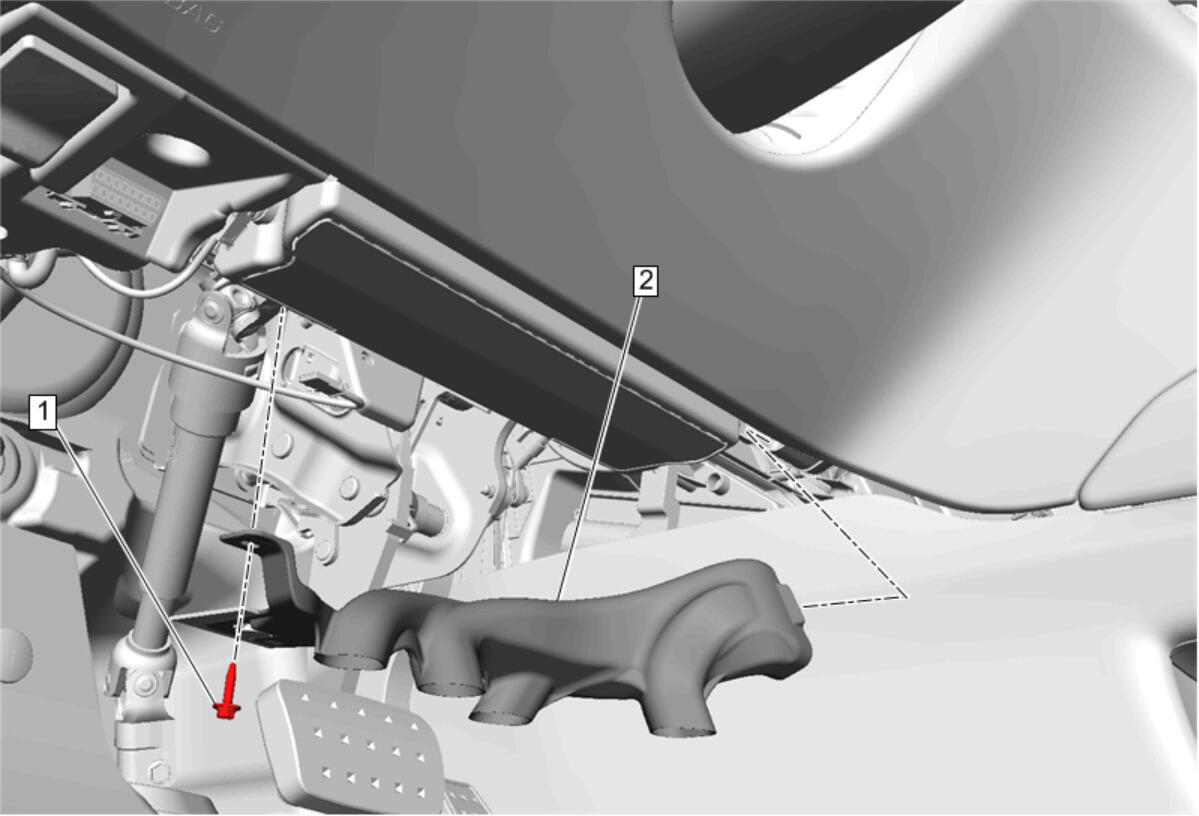

  8. GM4290914Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side (2) - Install - Floor Front Air Outlet Duct Replacement - Left Side

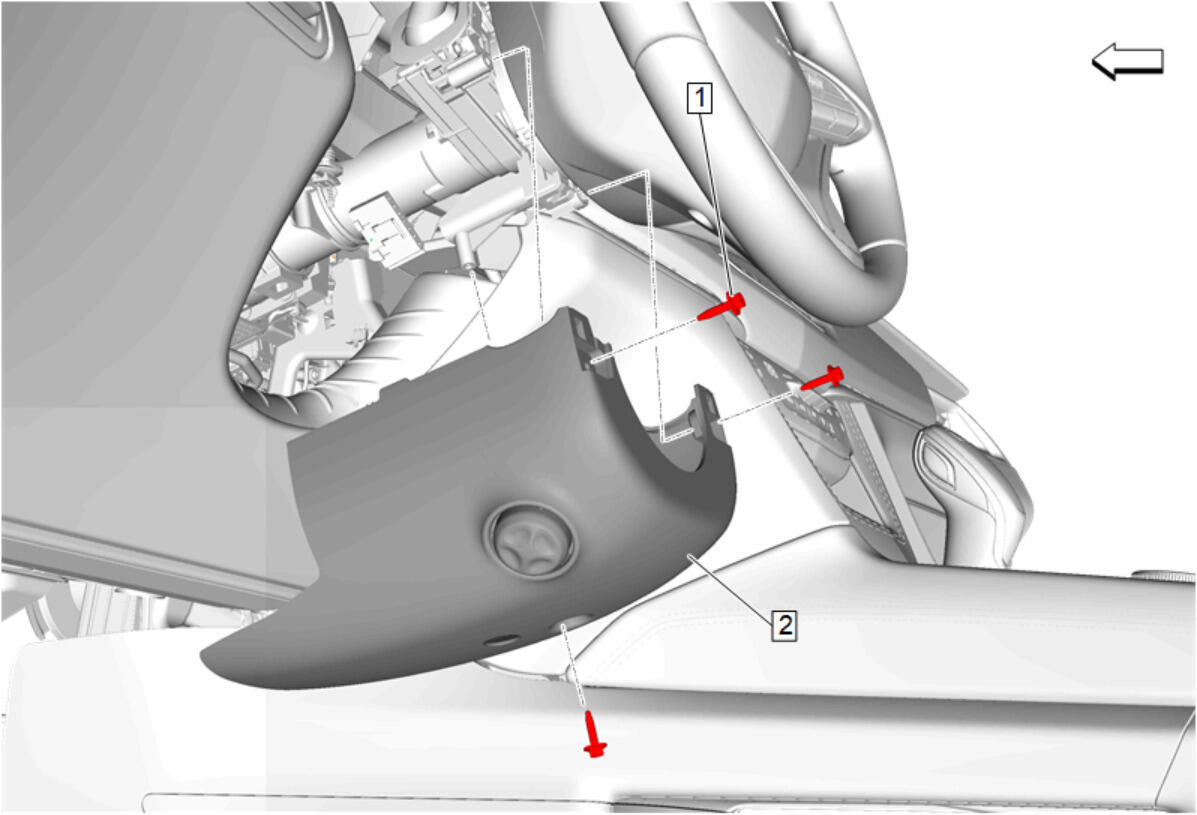

  9. GM5228072Courtesy of GENERAL MOTORS COMPANY

    Steering Column Lower Trim Cover (2) - Install - Steering Column Lower Trim Cover Replacement

  10. GM5227327Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    The anti-rotation pin must be removed from the steering column before installing the steering wheel. Ensure that the steering wheel bolt is torqued to specification during steering wheel installation. Over torquing the steering wheel bolt can result in damage to the steering column rivets which will disable the telescoping mechanism. If the steering column rivets are damaged, a new steering column must be installed.

    Remove the device used to prevent steering column rotation.

  11. Steering Wheel (2) - Install - Steering Wheel Replacement
  12. If equipped, install the fuse for the steering column lock control module. The fuse is found in the instrument panel fuse block and is labeled ESCL. Electrical Center Identification Views
  13. Enable the SIR System. SIR Disabling and Enabling
  14. Program the steering column lock control module. Control Module References
  15. Center the steering angle sensor.
  16. If battery was disconnected for steering column replacement, wait for all modules to fall asleep. This can be done by closing all vehicle closures (doors, trunk, hood) and waiting for three minutes without actuating any vehicle functions or pushing any buttons.
  17. Perform functionality check of tilt and telescoping features.
