Installation Procedure

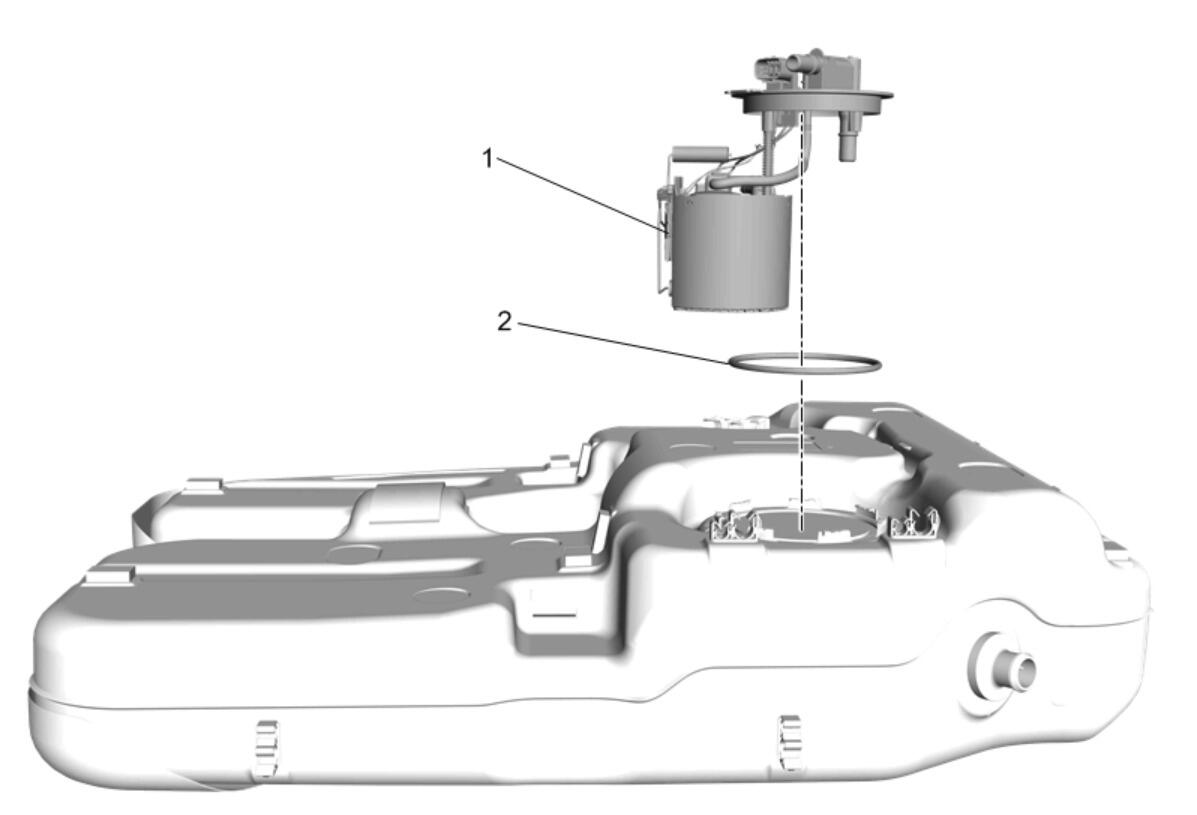

  1. GM5169674Courtesy of GENERAL MOTORS COMPANY

    O-Ring (2) - Install NEW

  2. Fuel Tank Fuel Pump Module (1) - Install

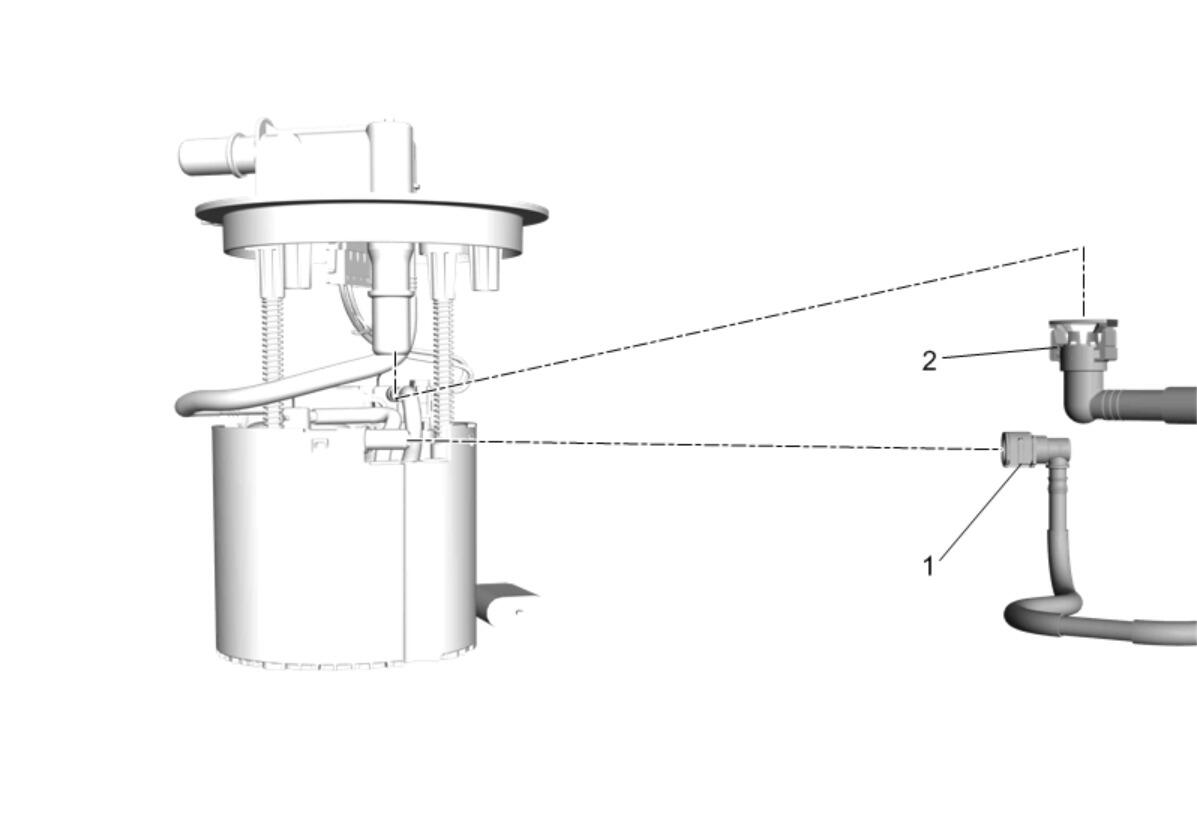

  3. GM5169681Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Vent Pipe (2) - Connect - Plastic Collar Quick Connect Fitting Service

  4. Transfer Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service

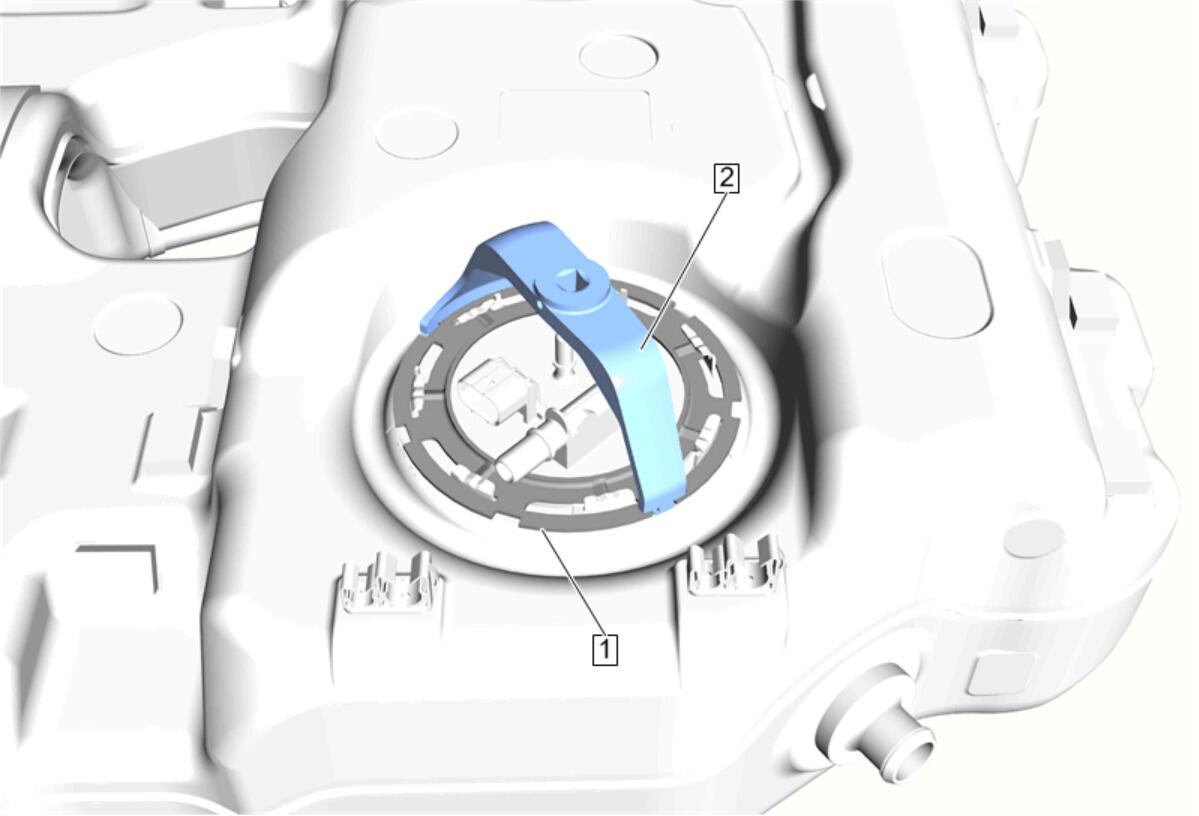

  5. GM5169666Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Lock Ring (1) - Install - CH - 45722  Fuel Sender Lock Ring Wrench (2)

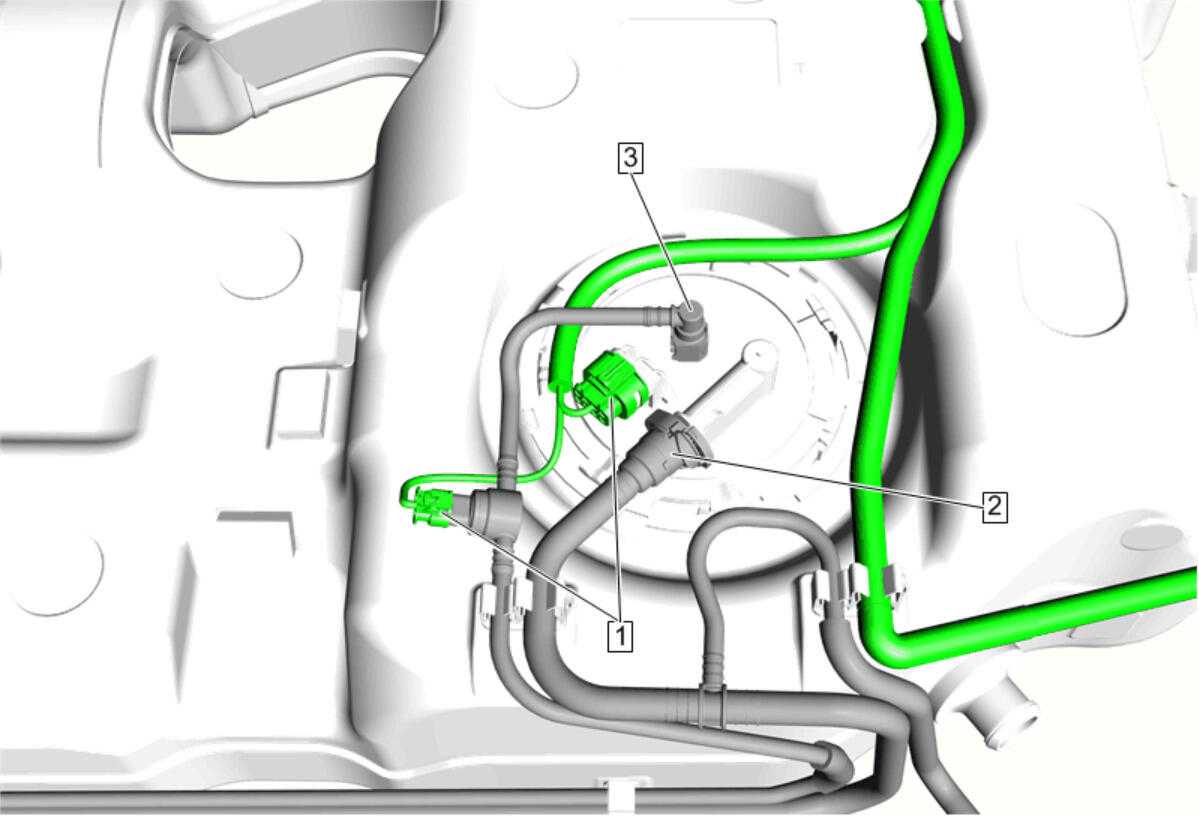

  6. GM5169659Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Fuel Feed Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service

  7. Evaporative Emission Canister Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
  8. Electrical Connector (1) - Connect [ 2x ]
  9. Fuel Tank - Install - Fuel Tank Replacement
