Engine Control Module Bracket Replacement

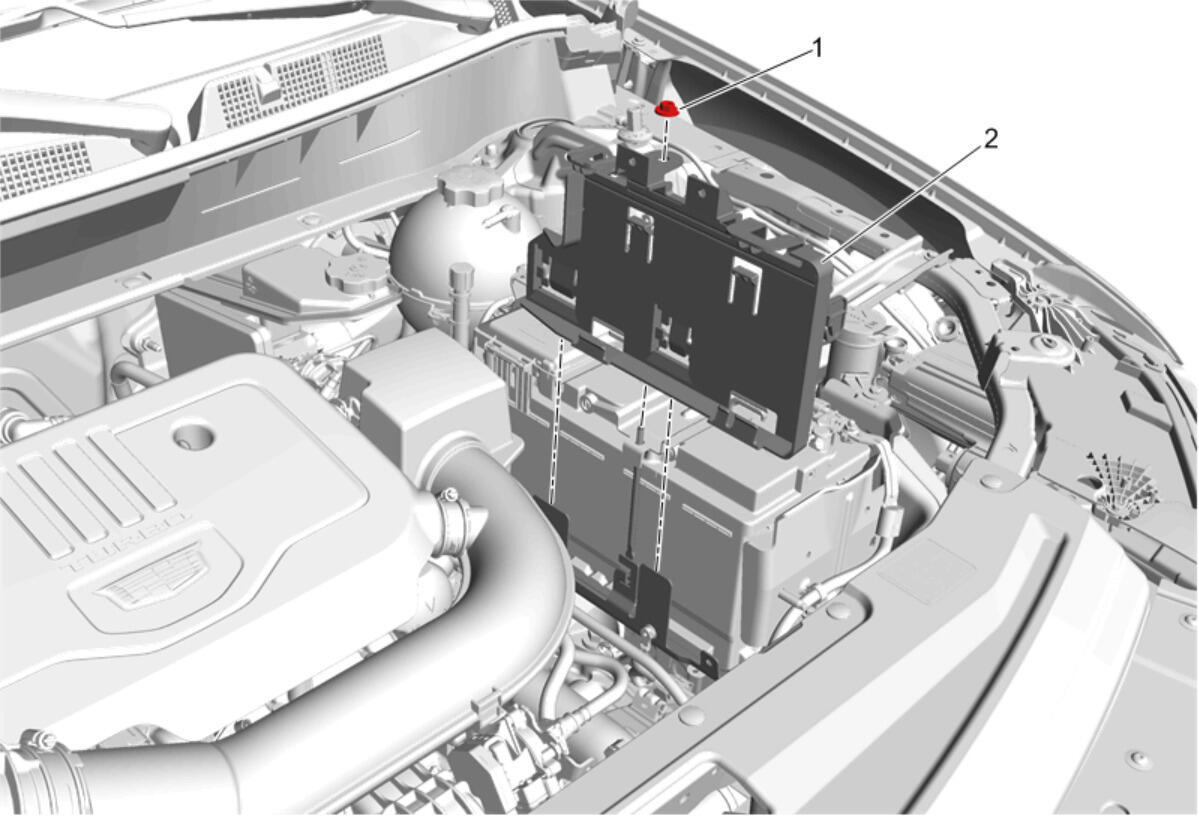

GM5214665

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Engine Coolant Air Bleed Hose @ Engine Control Module Bracket - Reposition away - Engine Coolant Air Bleed Hose Replacement (Water Pump to Water Pump Inlet Pipe)Engine Coolant Air Bleed Hose Replacement (Engine Coolant Flow Control Valve to Engine Coolant thermostat Housing Pipe)Engine Coolant Air Bleed Hose Replacement (LSY Radiator to Radiator Surge Tank to Engine Coolant Thermostat Housing Pipe)
Engine Control Module Replacement

1

Engine Control Module Bracket Nut

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Engine Control Module Bracket
