Installation Procedure

  1. Windshield - Install - Adhesive Installation of Windshields

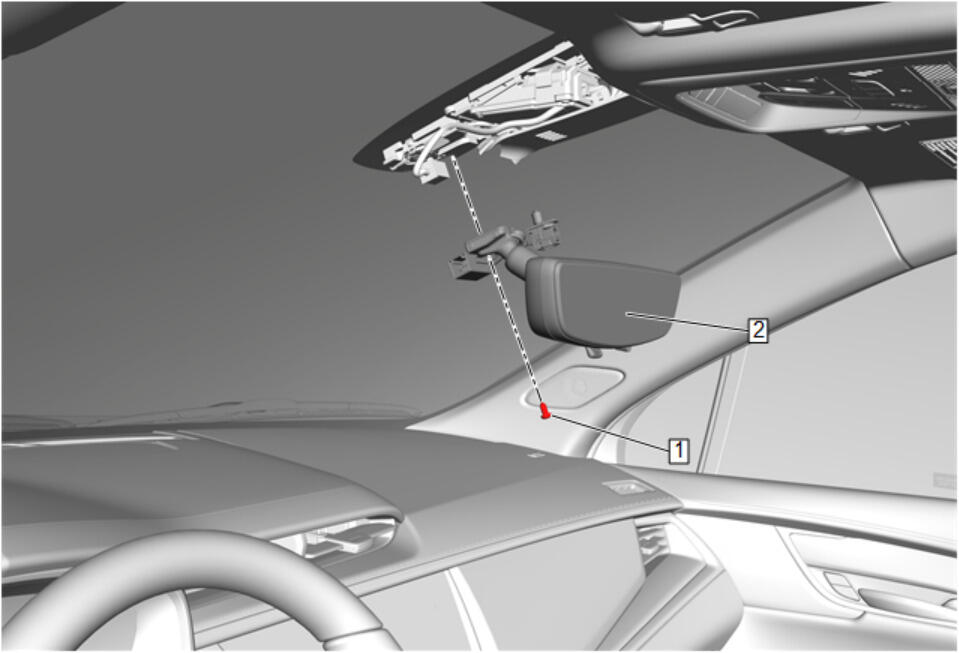

  2. GM5207689Courtesy of GENERAL MOTORS COMPANY

    Inside Rearview Mirror (2) - Install - Inside Rearview Mirror Replacement

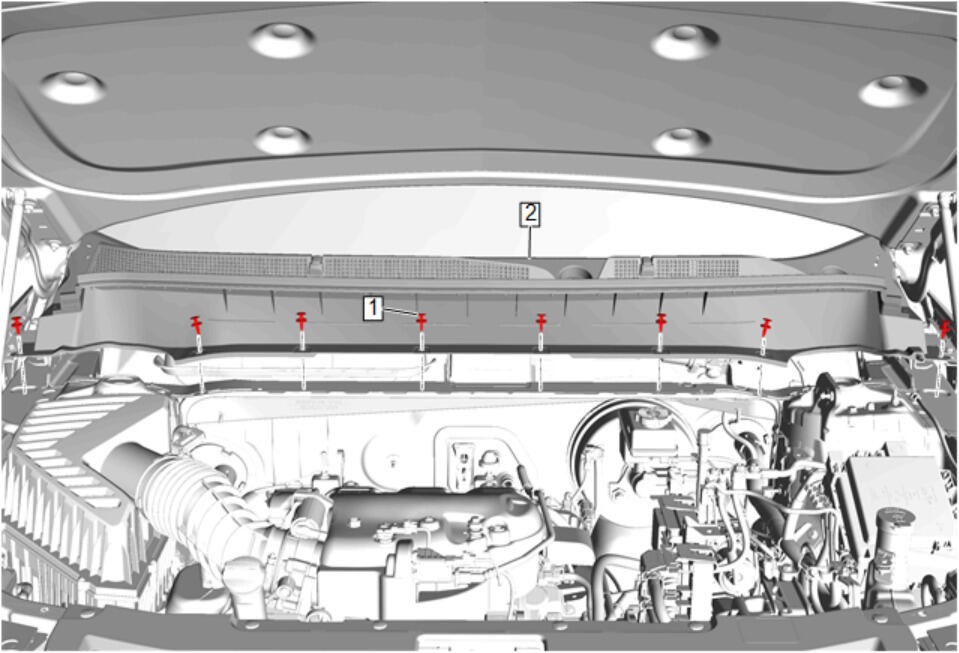

  3. GM5206147Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel (2) - Install - Air Inlet Grille Panel Replacement

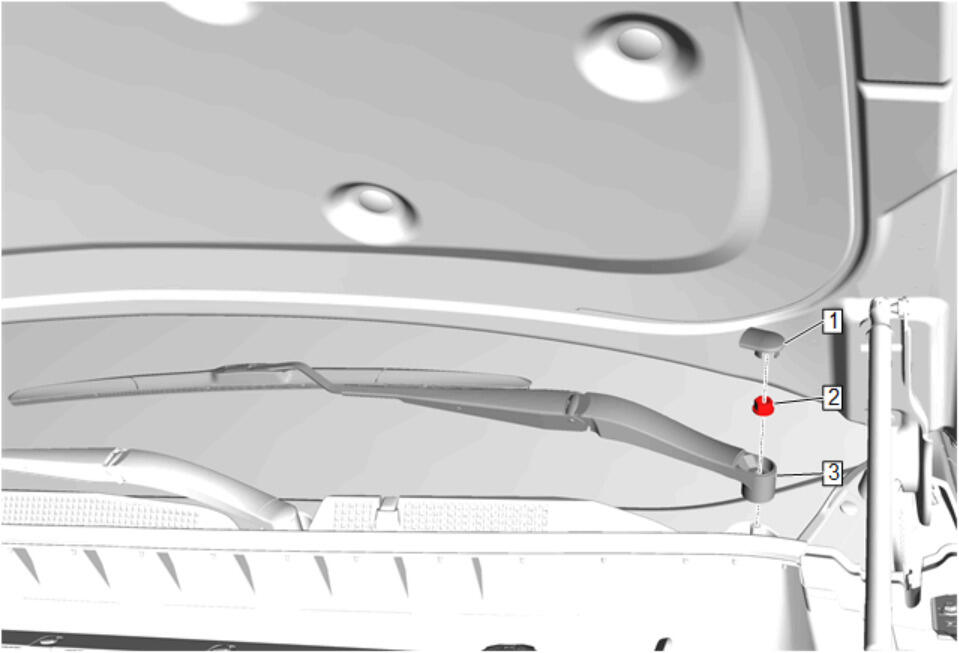

  4. GM5205933Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper Arm (3) - Install - Windshield Wiper Arm Replacement

  5. Remove the double layer of masking tape around the perimeter of the painted surfaces.
