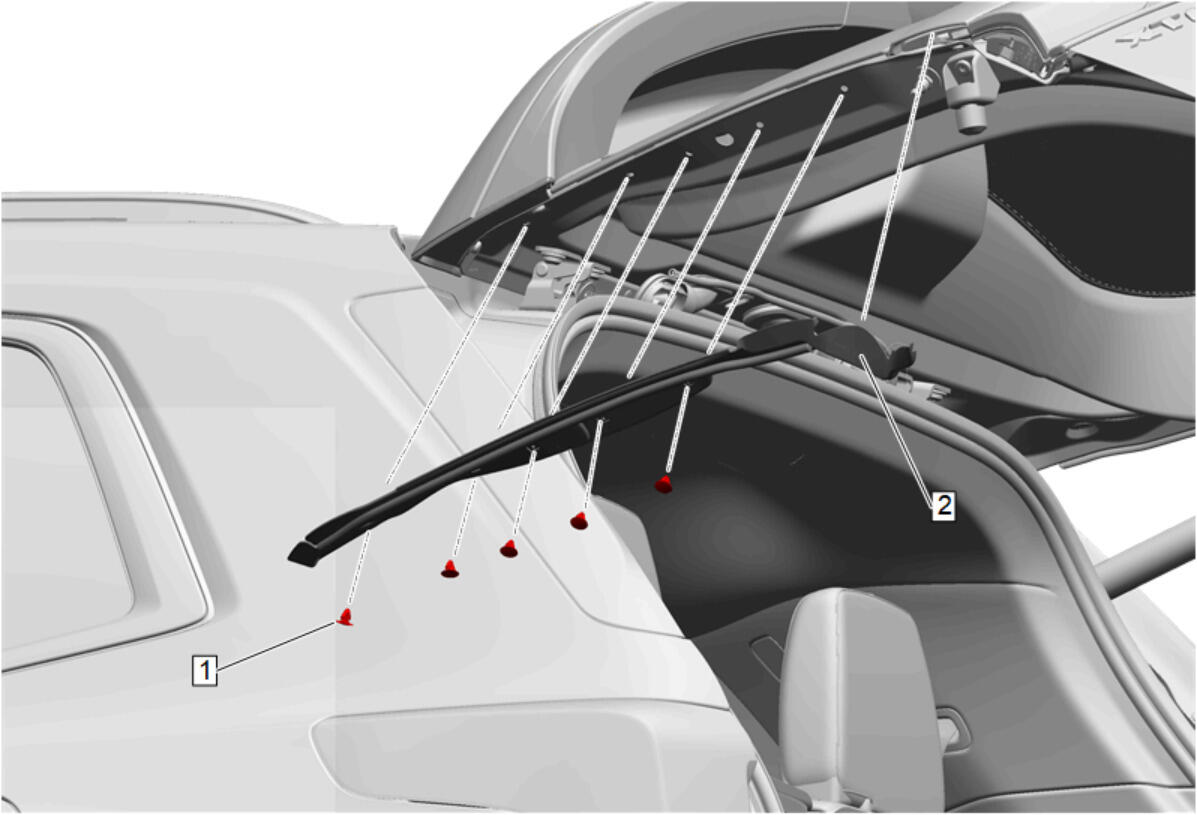

Liftgate Side Sensor Replacement - Left Side
| Callout | Component Name |
|---|---|
| Preliminary Procedure Liftgate Upper Side Trim Finish Panel Replacement |
|
| 1 | Liftgate Side Sensor Retainer[ 5x ]
NOTE:
Install a NEW retainer. Do NOT reuse the old retainer. |
| 2 | Liftgate Side Sensor Procedure Disconnect the electrical connector. |
