Video Processing Module Replacement

Courtesy of GENERAL MOTORS COMPANY

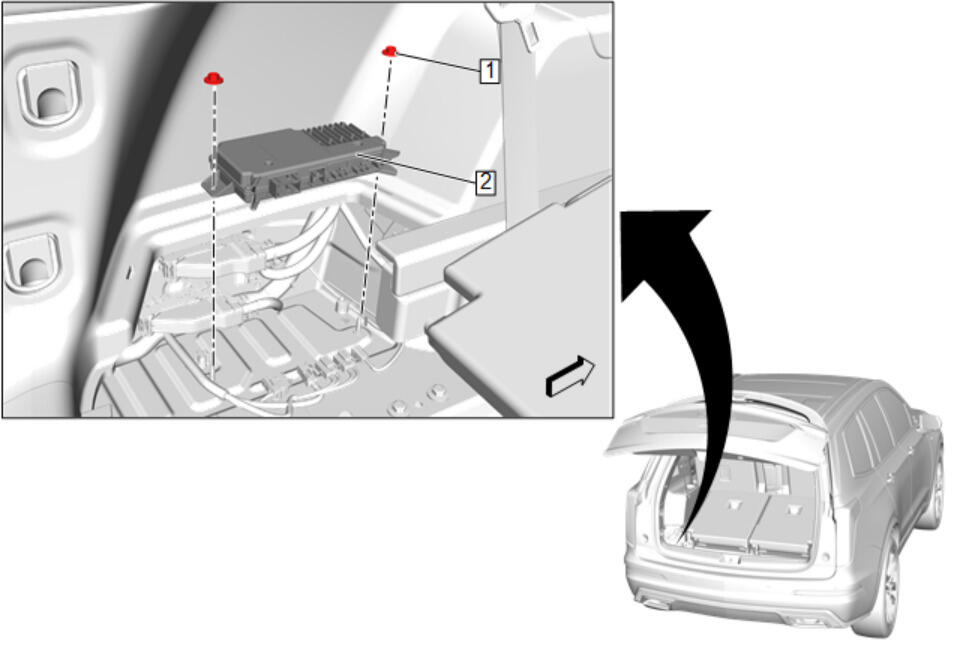

Callout	Component Name
Preliminary Procedures Rear Compartment Floor Stowage Side Rear Compartment Replacement Reposition the wiring harness.
1	Video Processing Module Nut [ 2x ] CAUTION: Refer to Fastener Caution . tighten 9 N.m (80 lb in)
2	Video Processing Module Procedure Disconnect all electrical Connector s. After installation, program the module. Control Module References

Callout

Component Name

Preliminary Procedures

Video Processing Module Nut [ 2x ]

CAUTION:

tighten
9 N.m (80 lb in)

Video Processing Module

Procedure
