Steering Components

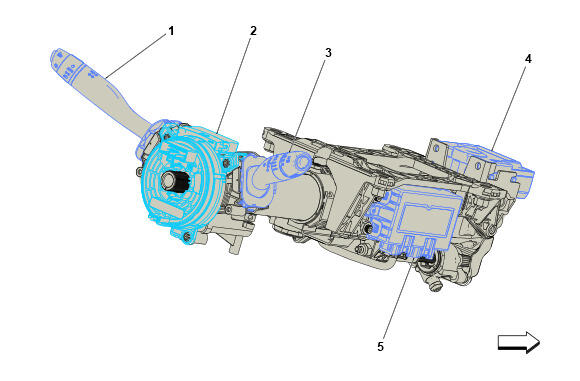

GM5233554Courtesy of GENERAL MOTORS COMPANY
Items
1. S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch
2. X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1 , or X85 Steering Wheel Air Bag Coil X2
3. S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch
4. K60 Steering Column Lock Module (N06) K60 Steering Column Lock Module
5. K99 Steering Column Position Control Module (N38) K99 Steering Column Position Control Module X1 (N38) , or K99 Steering Column Position Control Module X2 (N38)
