Passenger Front Door Components

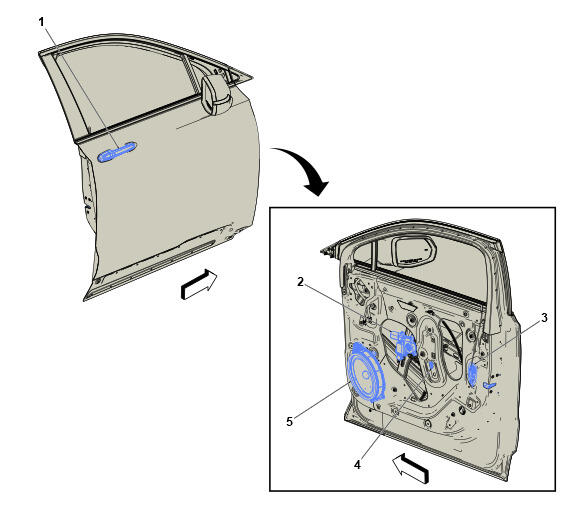

GM5233538Courtesy of GENERAL MOTORS COMPANY
Items
1. B27P Door Handle Switch - Passenger Exterior
2. M74P Window Motor - Passenger
3. A23P Door Latch Assembly - Passenger A23P Door Latch Assembly - Passenger
4. B63RF Side Impact Sensor - Right Front B63RF Side Impact Sensor - Right Front
5. P19AH Speaker - Right Front Door P19AH Speaker - Right Front Door
