Removal Procedure
WARNING: This page is about a different car, the 2020 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.
Outside Rearview Mirror Housing Bezel (2) - Remove - Outside Rearview Mirror Housing Bezel Replacement

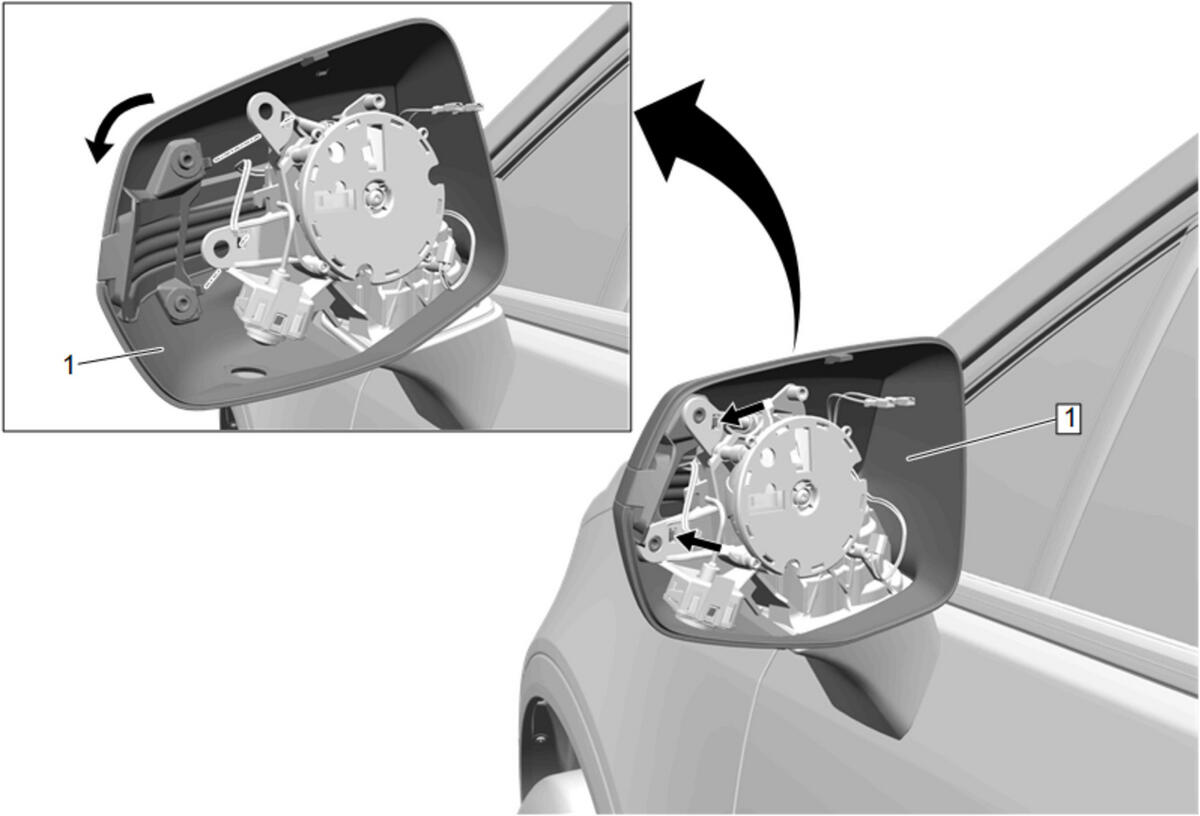

Release the retaining tabs on the outside rearview mirror housing cover (1) and rotate downward.
- Disconnect the electrical connector.
- NOTE:
Observe the mounting of the side view driver information camera to ensure proper reinstallation.
Release the retaining tab.
- Remove the side view driver information camera (2) and release from the side view driver information camera bracket (1).
- Transfer components as necessary.
