Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

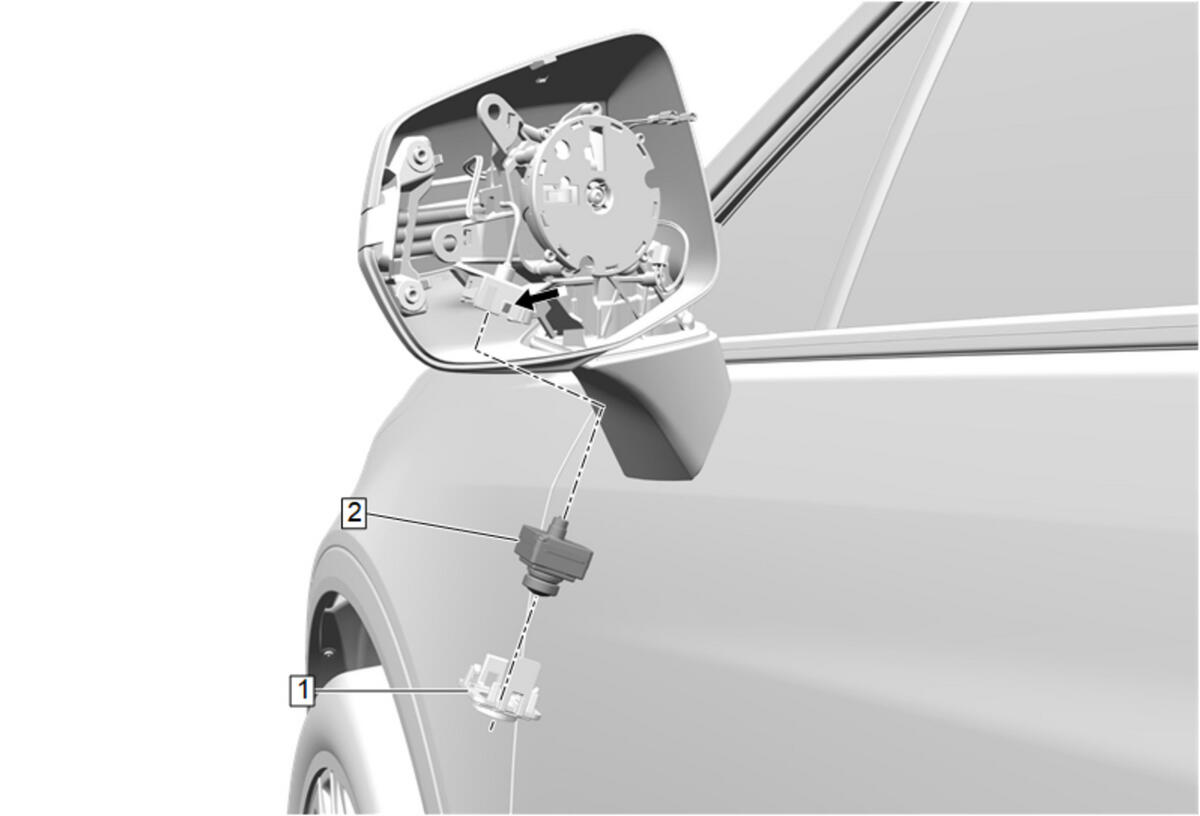

Install the side view driver information camera (2) with the side view driver information camera bracket (1).
- Secure the retaining tab.
- Connect the electrical connector.

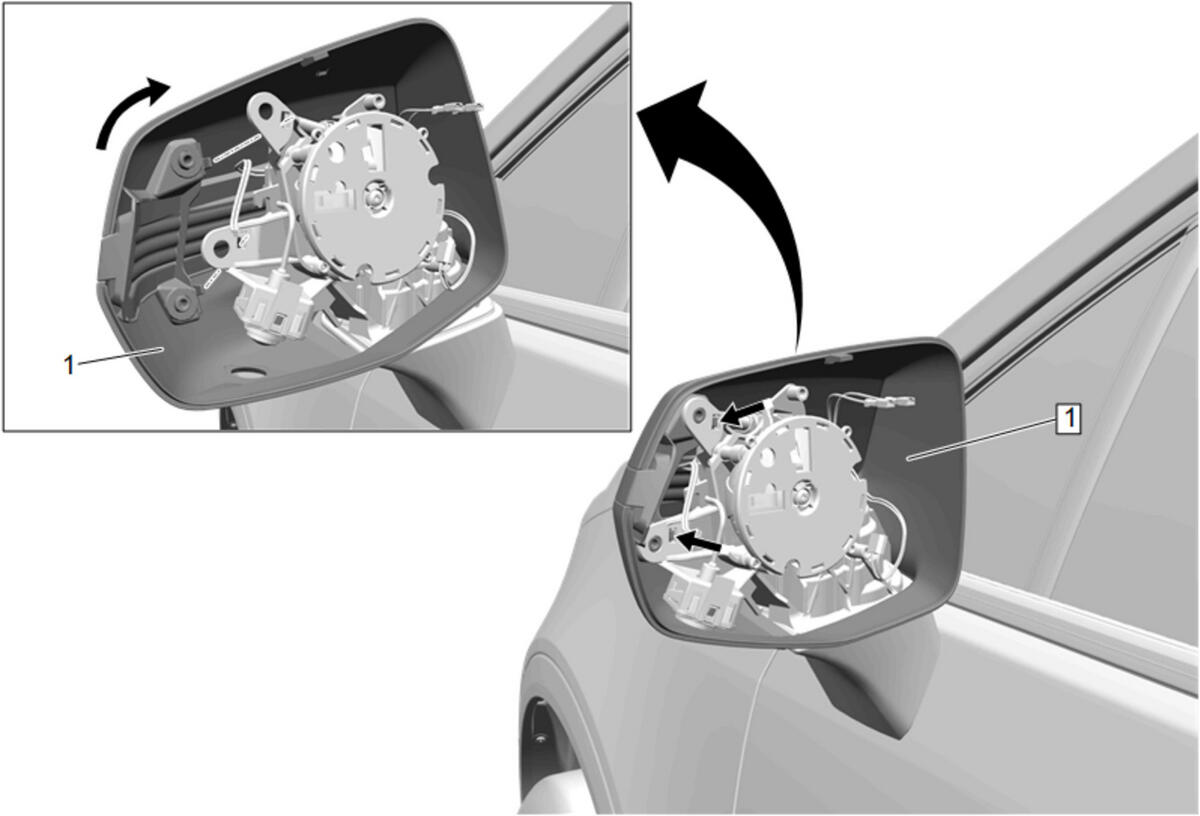

Rotate the outside rearview mirror housing cover (1) upward into position and secure the retaining tabs.

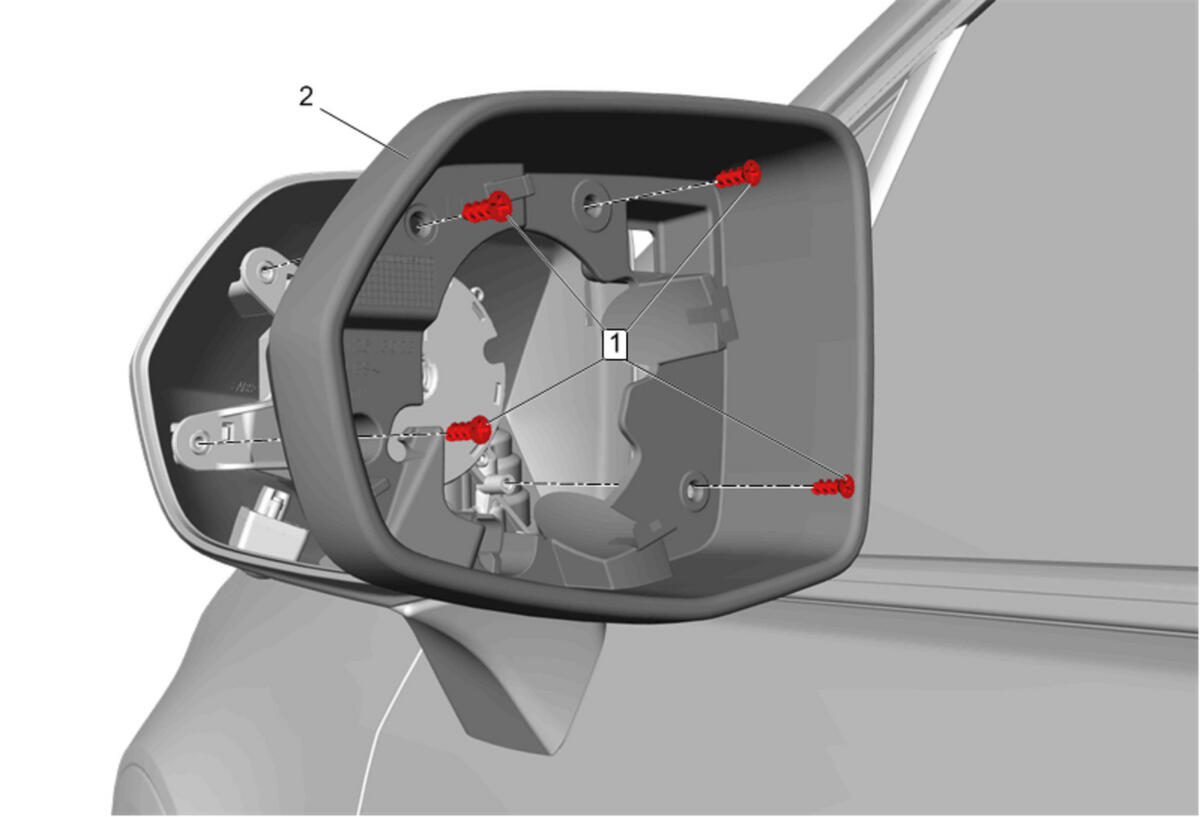

Outside Rearview Mirror Housing Bezel (2) - Install - Outside Rearview Mirror Housing Bezel Replacement
- Perform the camera calibration procedure. Video Processing Control Module Calibration
