Night Vision Module Bracket Replacement

WARNING: This page is about a different car, the 2020 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

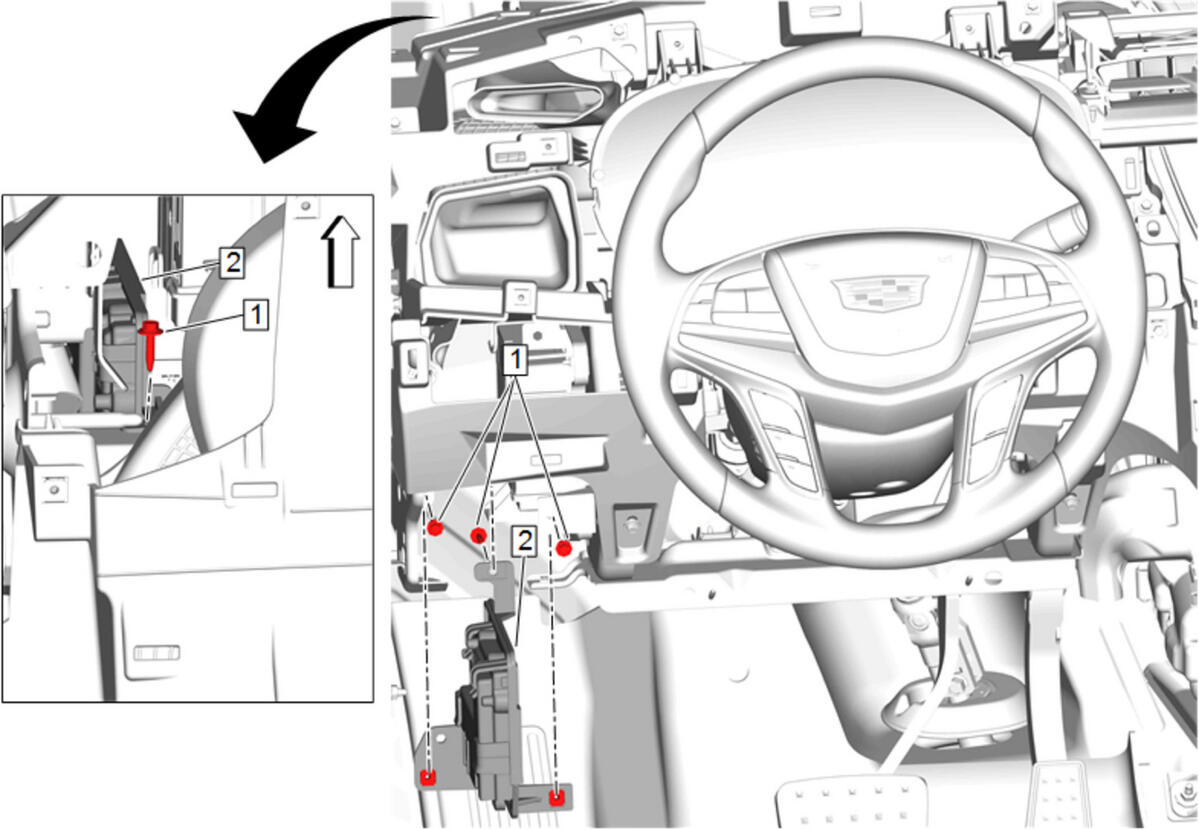

Callout	Component Name
Preliminary Procedure Instrument Panel Knee Bolster Replacement
1	Night Vision Module Bracket Bolt [3x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Night Vision Module Bracket Procedure Disconnect the electrical connectors. Reposition the wiring harness. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Instrument Panel Knee Bolster Replacement

Night Vision Module Bracket Bolt [3x]

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb in)

Night Vision Module Bracket

Procedure

Disconnect the electrical connectors.
Reposition the wiring harness.
Transfer components as necessary.
