Night Vision Camera Replacement
WARNING: This page is about a different car, the 2020 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

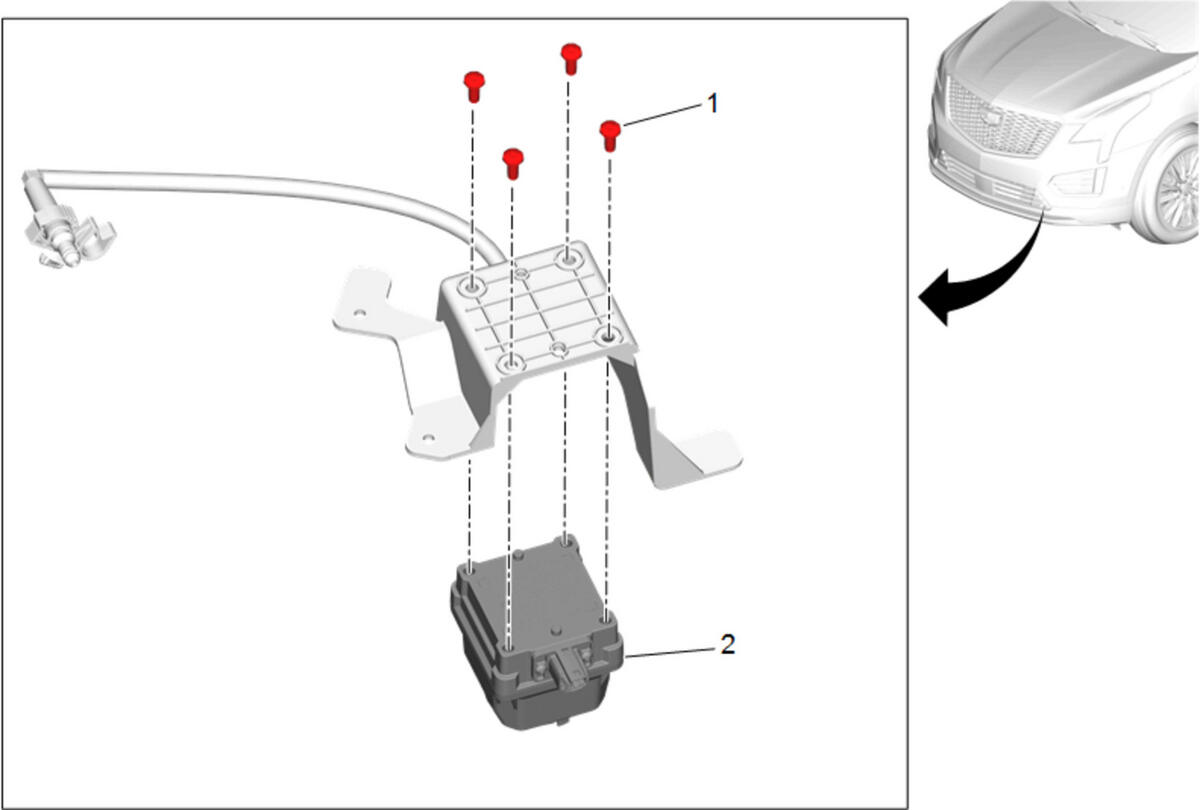

| Callout | Component Name |
|---|---|
| Preliminary Procedure Night Vision Camera Bracket Replacement |
|
| 1 | Night Vision Camera Bolt [4x]
CAUTION:
Tighten 3.75 - 7.5 N.m (33 - 66 lb in) |
| 2 | Night Vision Camera Procedure
|
