Fastener Specifications
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts in the following chart represent components shown in graphic above.

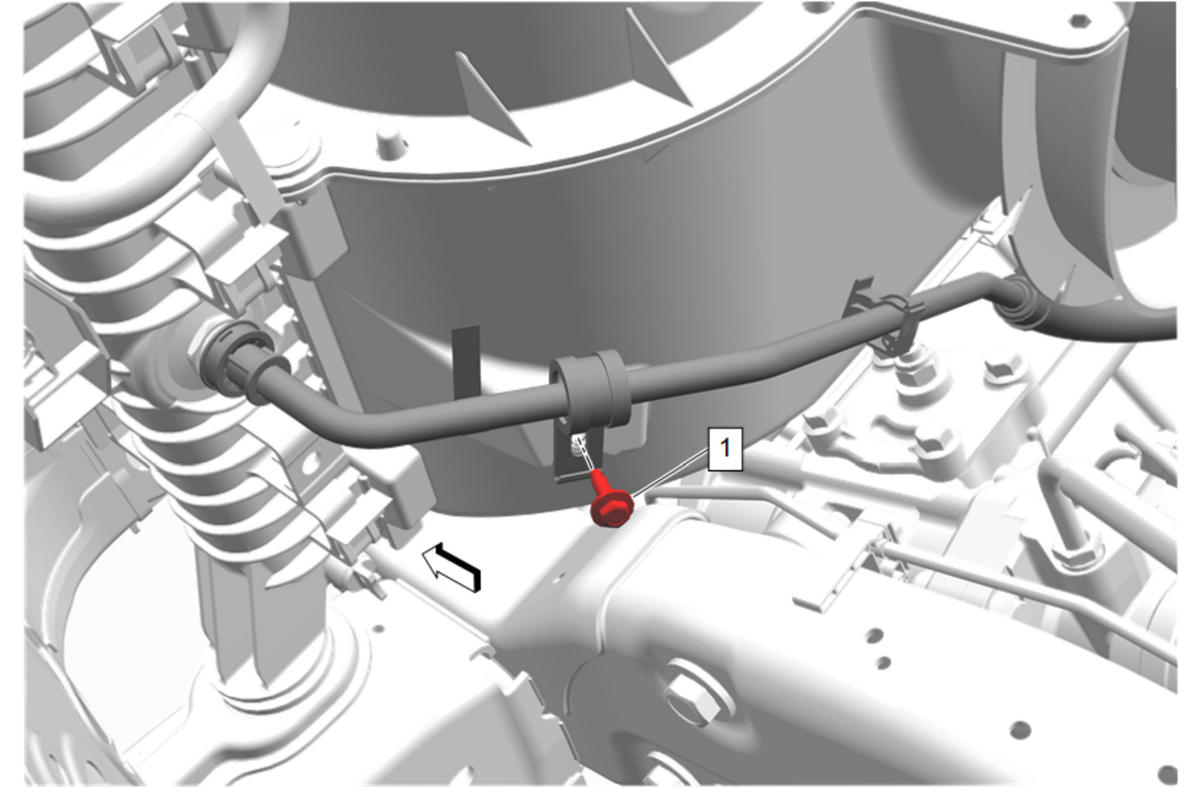

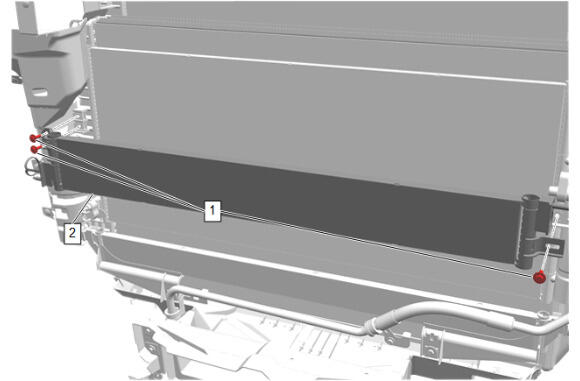

Transmission Fluid Auxiliary Cooler (L5P with MGM or MGU)
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Auxiliary Cooler Bolt [3x] |
- | - | 9 N.m (80 lb in) | Transmission Fluid Auxiliary Cooler Replacement (L5P) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

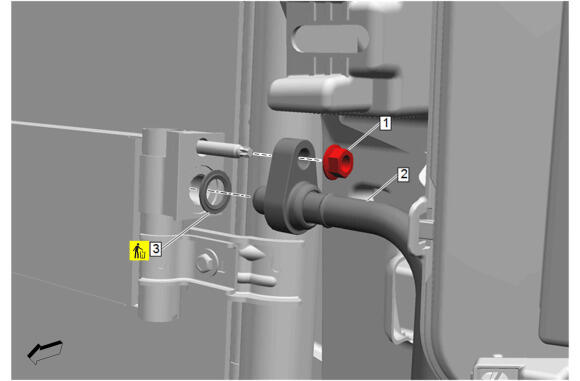

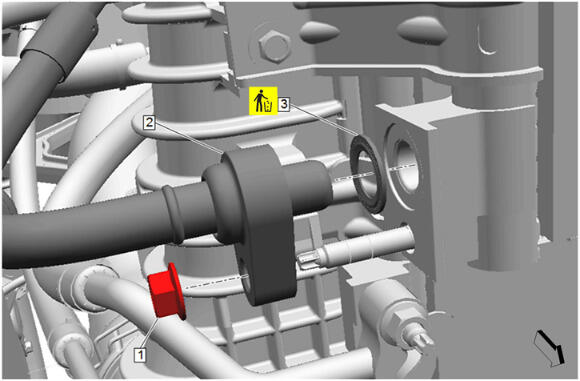

Transmission Fluid Cooler Inlet and Outlet Pipe (L5P with MGM or MGU)
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Nut | - | - | 22 N.m (16 lb ft) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P) |
| 3 | Transmission Fluid Cooler Pipe Fitting Seal | Yes | - | - | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

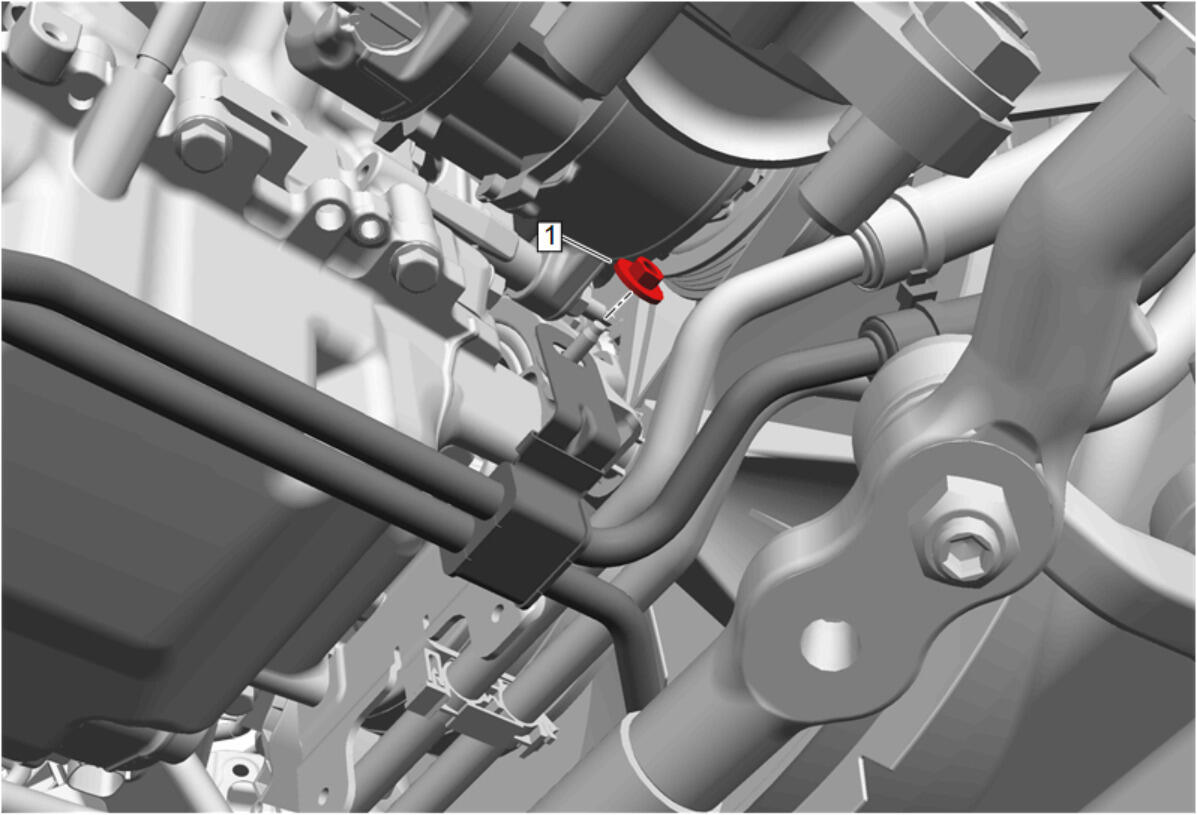

Transmission Fluid Cooler Inlet and Outlet Pipe (L5P with MGM or MGU)
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Inlet and Outlet Pipe Bolt | - | - | 9 N.m (80 lb in) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Transmission Fluid Cooler Inlet and Outlet Pipe (L5P with MGM or MGU)
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Nut | - | - | 9 N.m (80 lb in) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Transmission Fluid Cooler Inlet and Outlet Pipe (L5P with MGM or MGU)
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Bolt | - | - | 9 N.m (80 lb in) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

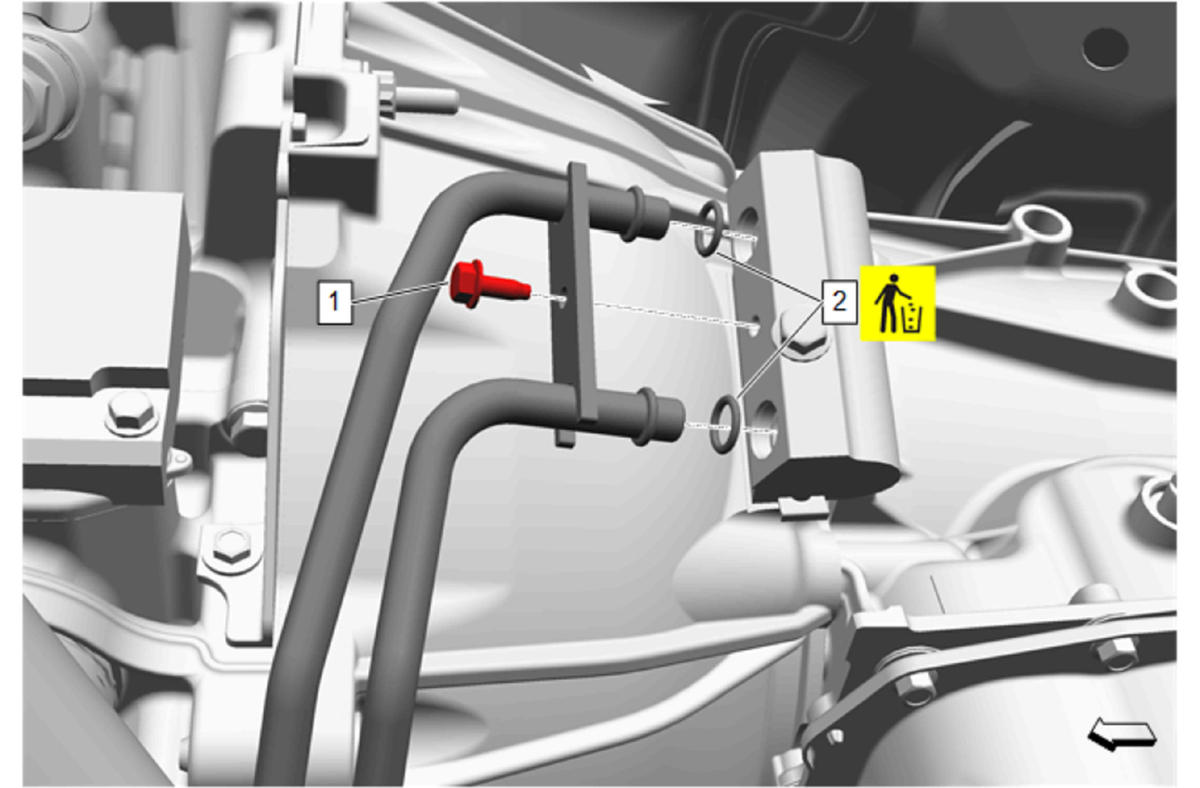

Transmission Fluid Cooler Inlet and Outlet Pipe (L5P with MGM or MGU)
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Bolt | - | - | 22 N.m (16 lb ft) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P) |
| 2 | Transmission Fluid Cooler Pipe Fitting Seal | Yes | - | - | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L5P) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Transmission Fluid Cooler Inlet and Outlet Pipe (L8T with MYD)
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Inlet and Outlet Pipe Bolt | - | - | 9 N.m (80 lb in) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Transmission Fluid Cooler Inlet and Outlet Pipe (L8T with MYD)
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Inlet and Outlet Pipe Bolt | - | - | 9 N.m (80 lb in) | Transmission Fluid Cooler Thermal Bypass Valve Replacement |
| 2 | Transmission Fluid Cooler Pipe Fitting Seal | Yes | - | - | Transmission Fluid Cooler Thermal Bypass Valve Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Transmission Fluid Cooler Inlet and Outlet Pipe (L8T with MYD)
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Inlet and Outlet Pipe Bolt | - | - | 9 N.m (80 lb in) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

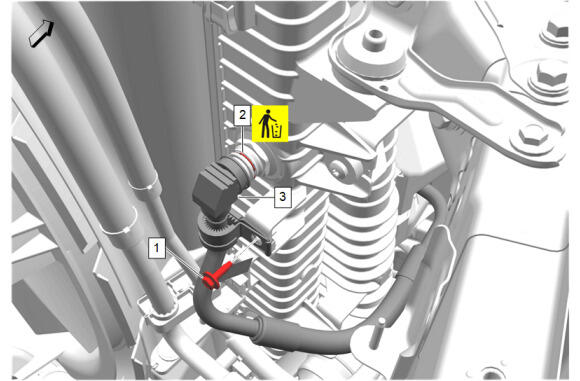

Transmission Fluid Cooler Inlet and Outlet Pipe (L8T with MYD)
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Nut | - | - | 22 N.m (16 lb ft) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T) |
| 2 | Transmission Fluid Auxiliary Cooler Bolt | Yes | - | 7 N.m (62 lb in) | Transmission Fluid Auxiliary Cooler Replacement (L8T) |
| 3 | Transmission Fluid Cooler Pipe Fitting Seal | Yes | - | - | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Transmission Fluid Cooler Inlet and Outlet Pipe (L8T with MYD)
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Auxiliary Cooler Pipe Bracket Nut | - | - | 9 N.m (80 lb in) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

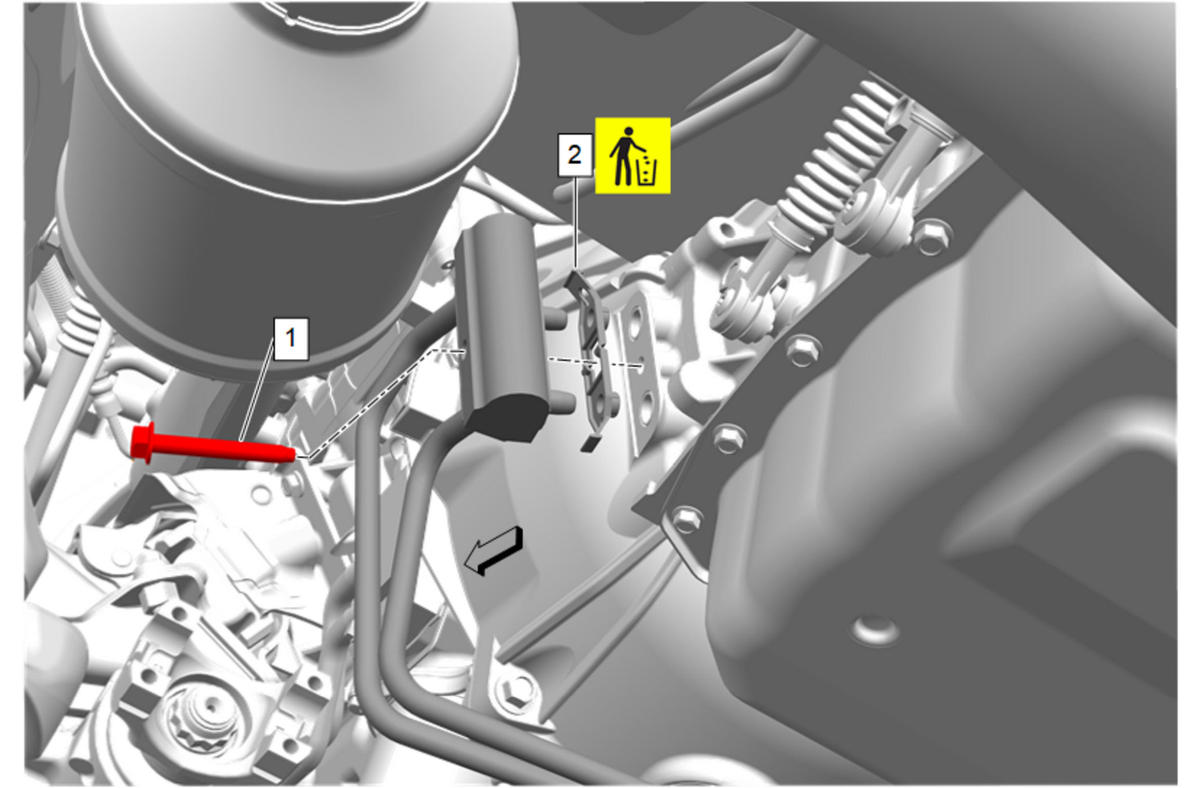

Transmission Fluid Cooler Inlet and Outlet Pipe (L8T with MYD)
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Bolt | - | - | 22 N.m (16 lb ft) | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T) |
| 2 | Transmission Fluid Cooler Seal | Yes | - | - | Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L8T) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

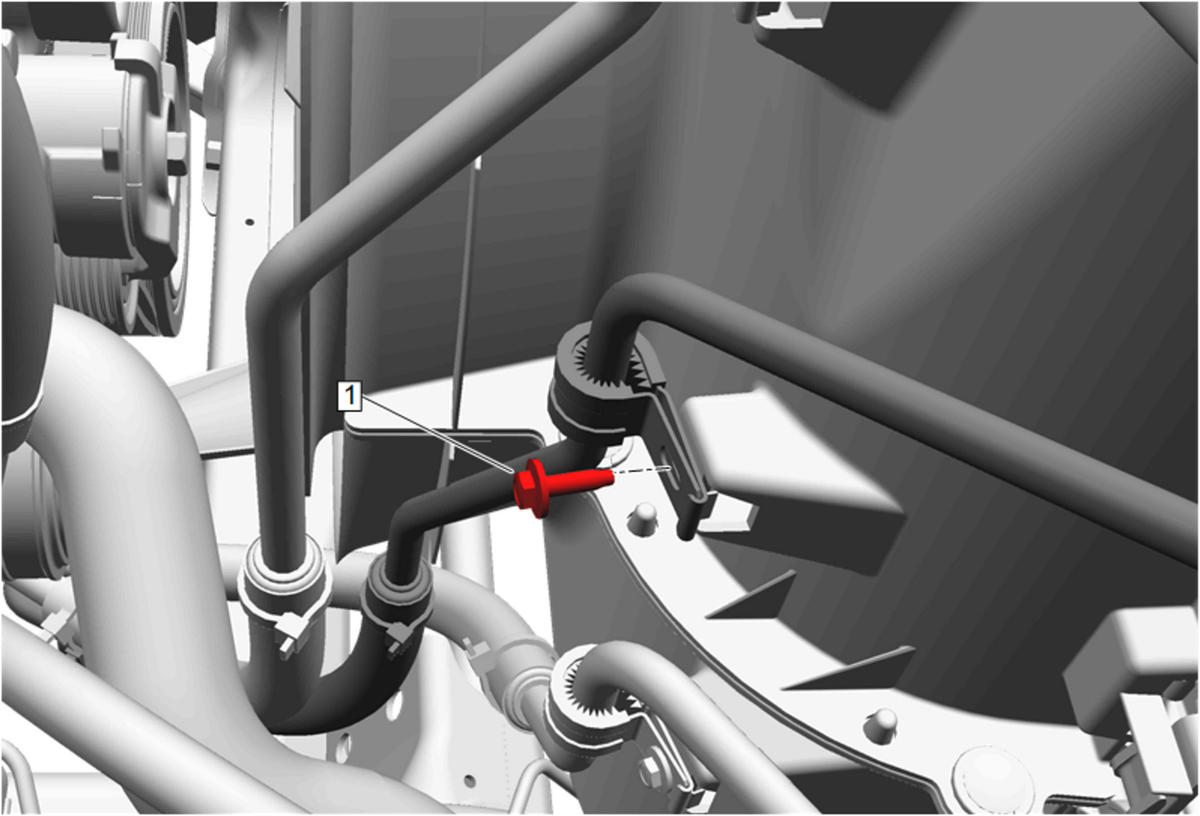

Transmission Fluid Cooler Hose/Pipe (L5P with MGM or MGU)
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Bolt | - | - | 9 N.m (80 lb in) | Transmission Fluid Cooler Hose/Pipe Replacement (L5P) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Transmission Fluid Cooler Hose/Pipe (L8T with MYD)
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Bolt | - | - | 9 N.m (80 lb in) | Transmission Fluid Cooler Hose/Pipe Replacement (L8T) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Transmission Fluid Cooler Hose/Pipe (L8T with MYD)
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Nut | - | - | 22 N.m (16 lb ft) | Transmission Fluid Cooler Hose/Pipe Replacement (L8T) |
| 3 | Transmission Fluid Cooler Pipe Fitting Seal | Yes | - | - | Transmission Fluid Cooler Hose/Pipe Replacement (L8T) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Transmission Fluid Cooler Pipe Connector Upper (L5P with MGM or MGU)
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Connector | - | - | 24 N.m (18 lb ft) | Transmission Fluid Cooler Pipe Connector Replacement - Radiator Upper (L5P) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Transmission Fluid Cooler Pipe Connector Lower (L5P with MGM or MGU)
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Connector | - | - | 24 N.m (18 lb ft) | Transmission Fluid Cooler Pipe Connector Replacement - Radiator Lower (L5P) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Transmission Fluid Cooler Pipe Connectors (L8T with MYD)
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Connector | - | - | 24 N.m (18 lb ft) | Transmission Fluid Cooler Pipe Connector Replacement - Radiator Upper (L8T) |
| 2 | Transmission Fluid Cooler Pipe Connector | - | - | 24 N.m (18 lb ft) | Transmission Fluid Cooler Pipe Connector Replacement - Radiator Lower (L8T) |
