Fastener Specifications
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

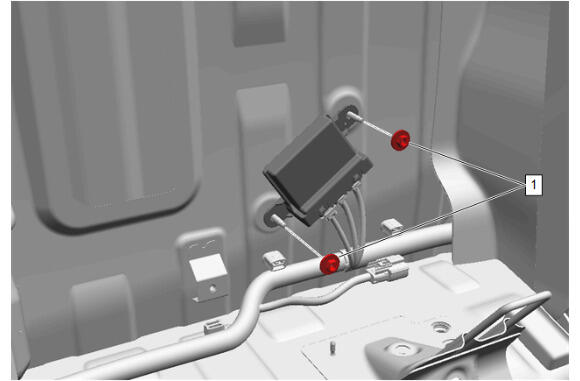

Callouts in the following chart represent components shown in graphic above.
Parking Assist Control Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Parking Assist Control Module Nut [2x] | - | - | 4.5 N.m (40 lb in) | Parking Assist Control Module Replacement (Crew Cab, Double Cab) , or Parking Assist Control Module Replacement (Regular Cab) |
